DCF201
DCF201

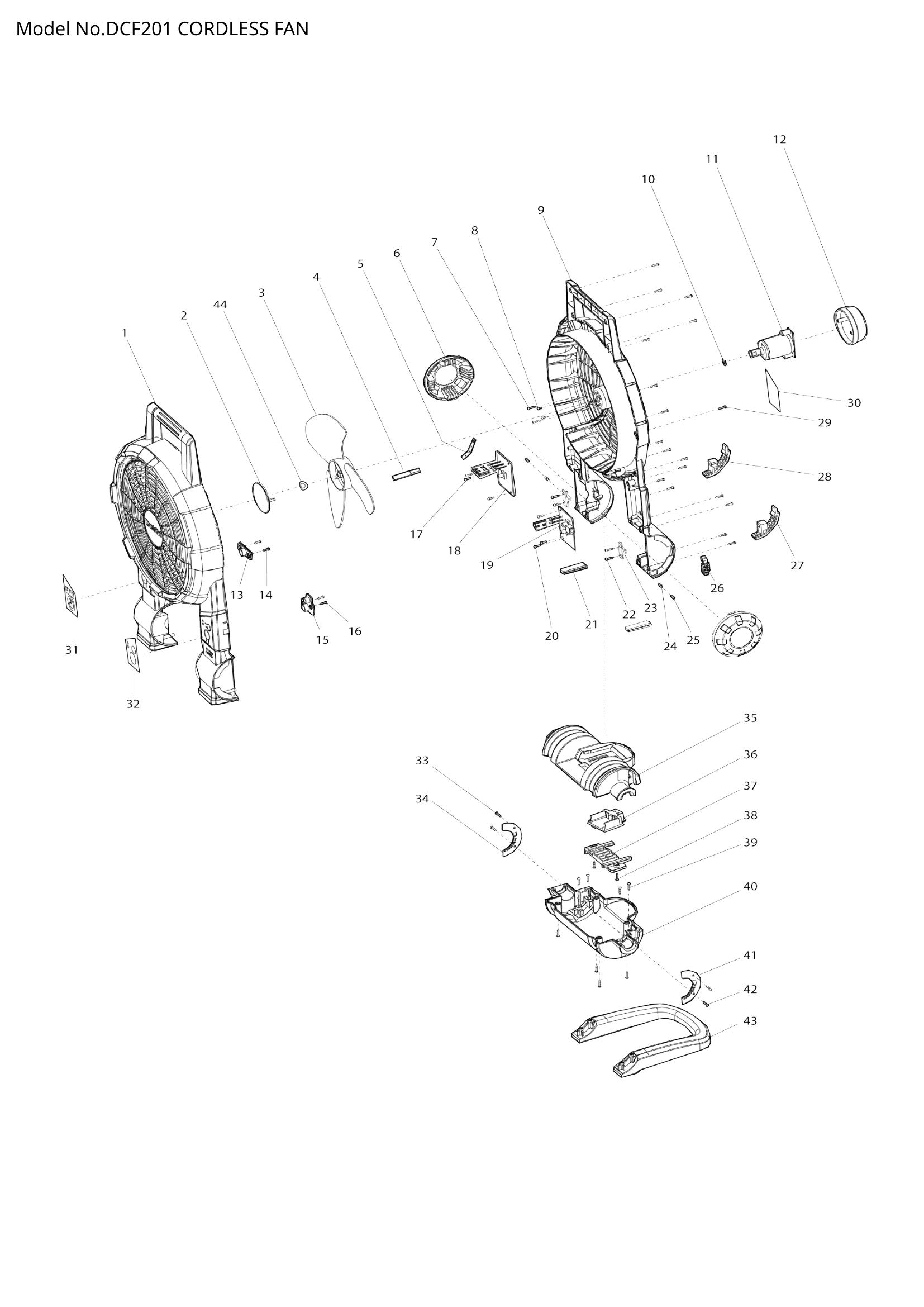

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | FAN BLADE COVER | 1 | Not available in store | |||
| 004 | WIRE COVER A | 1 | Not available in store | |||
| 005 | WIRE COVER B | 1 | Not available in store | |||
| 006 | TE00000007 | SIDE COVER | 2 | €3.90 | 1-4 weeks to ship | |
| 007 | TAPPING SCREW 3X14 | 2 | Not available in store | |||
| 008 | P.H.SCREW M3X5 | 2 | Not available in store | |||
| 010 | STOP RING | 1 | Not available in store | |||
| 011 | TE00000041 | MOTER ASSEMBLY | 1 | €16.70 | 1-4 weeks to ship | |
| 012 | TE00000011 | MOTOR COVER | 1 | €1.95 | 1-4 weeks to ship | |
| 014 | TAPPING SCREW 3X10 | 2 | Not available in store | |||
| 016 | TAPPING SCREW 3X10 | 2 | Not available in store | |||
| 017 | TAPPING SCREW 3X10 | 3 | Not available in store | |||
| 018 | TE00000042 | TIME PCB BOARD | 1 | €9.88 | 1-4 weeks to ship | |
| 019 | TE00000043 | SWITCH PCB BOARD | 1 | €9.88 | 1-4 weeks to ship | |
| 020 | TAPPING SCREW 3X10 | 3 | Not available in store | |||
| 021 | FRONT FOOT | 2 | Not available in store | |||
| 022 | TAPPING SCREW 3X14 | 4 | Not available in store | |||
| 023 | SPRING HOLDER | 2 | Not available in store | |||
| 024 | PIN | 2 | Not available in store | |||
| 025 | SPRING | 2 | Not available in store | |||
| 026 | ADAPTER SOCKET CAP | 1 | Not available in store | |||
| 027 | REAR FOOT L | 1 | Not available in store | |||
| 028 | REAR FOOT R | 1 | Not available in store | |||
| 031 | SWITCH LABEL L | 1 | Not available in store | |||
| 032 | SWITCH LABEL R | 1 | Not available in store | |||
| 033 | TAPPING SCREW 3X10 | 2 | Not available in store | |||
| 034 | CLUTCH PLATE R | 1 | Not available in store | |||
| 035 | TE00000021 | BASE SET | 1 | €11.83 | 1-4 weeks to ship | |
| 037 | TE00000023 | TERMINAL HOLDER | 1 | €1.25 | 1-4 weeks to ship | |
| 038 | TAPPING SCREW 3X14 | 2 | Not available in store | |||
| 039 | TAPPING SCREW 3X14 | 8 | Not available in store | |||
| 040 | TE00000021 | BASE SET | 1 | €11.83 | 1-4 weeks to ship | |
| 041 | CLUTCH PLATE L | 1 | Not available in store | |||
| 042 | TAPPING SCREW 3X10 | 2 | Not available in store | |||
| 043 | STAND | 1 | Not available in store | |||
| 044 | WAVE WASHER | 1 | Not available in store | |||
