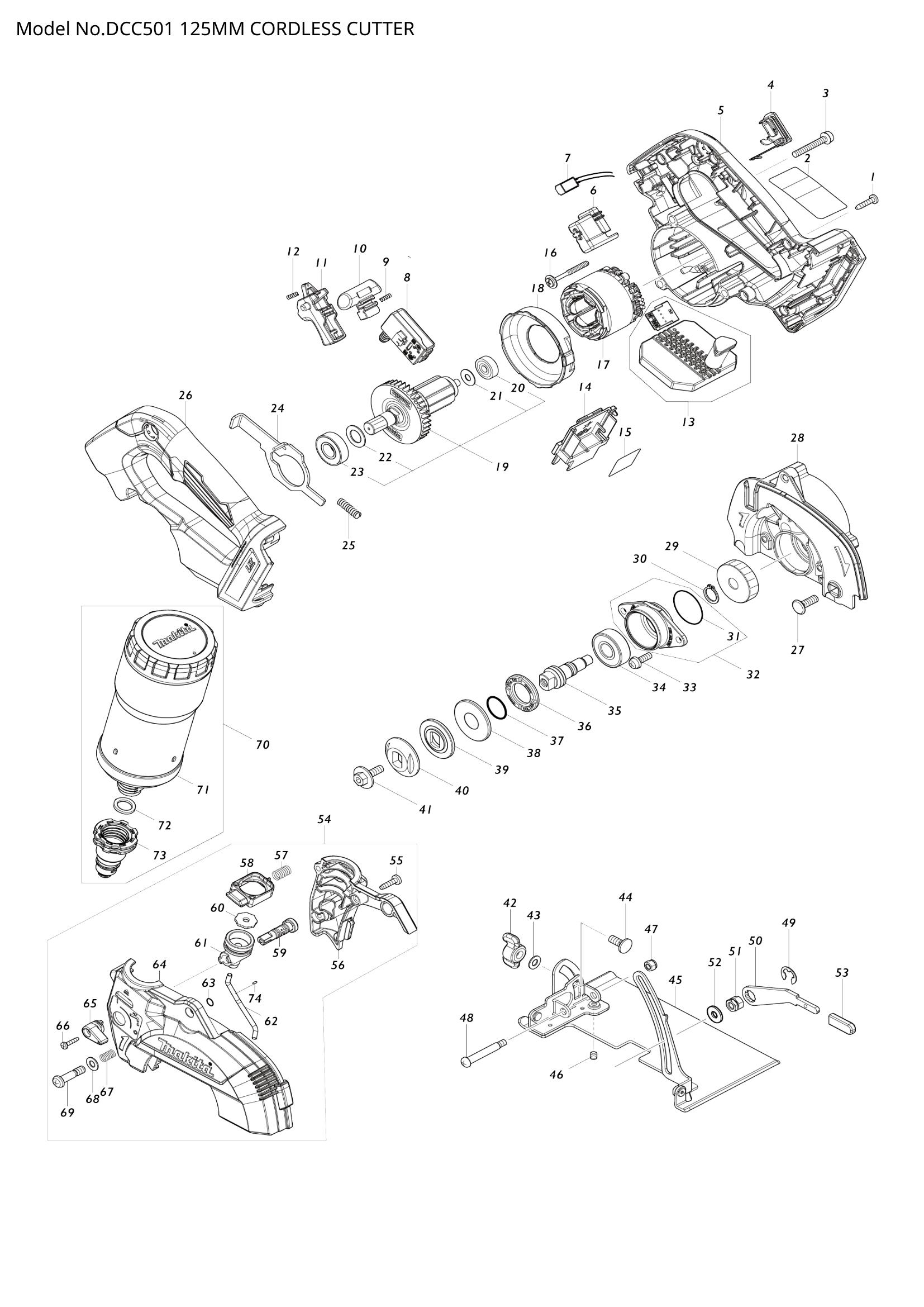

DCC501
DCC501
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 002 | DCC501 NAME PLATE | 1 | Not available in store | |||
| 003 | 911258-5 | PAN HEAD SCREW M5X35 | 3 | €0.56 | 1-4 weeks to ship | |
| 911258-5 | PAN HEAD SCREW M5X35 | 3 | €0.56 | 1-4 weeks to ship | ||
| 004 | CAP COMPLETE | 1 | Not available in store | |||
| 006 | HOLDER | 1 | Not available in store | |||
| 007 | LED CIRCUIT | 1 | Not available in store | |||
| 008 | 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | |
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 009 | 231433-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | LOCK OFF BUTTON | 1 | Not available in store | |||
| 011 | SWITCH LEVER | 1 | Not available in store | |||
| 012 | 231433-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 015 | DCC501 SERIAL NO. LABEL | 1 | Not available in store | |||
| 016 | TAPPING SCREW 4X40 | 2 | Not available in store | |||
| 018 | BAFFLE PLATE | 1 | Not available in store | |||
| 019 | ROTOR ASS'Y | 1 | Not available in store | |||
| 020 | 210022-4 | BALL BEARING 626DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 021 | 253332-6 | THIN WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 024 | SHAFT LOCK | 1 | Not available in store | |||
| 025 | COMPRESSION SPRING 6 | 1 | Not available in store | |||
| 027 | 251586-9 | FLAT HEAD SQUARE NECK BOLT | 1 | €2.12 | 1-4 weeks to ship | |
| 028 | GEAR HOUSING COMPLETE | 1 | Not available in store | |||
| 029 | HELICAL GEAR 45 | 1 | Not available in store | |||
| 030 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | O RING 30 | 1 | Not available in store | |||
| 032 | 135948-8 | BEARING BOX ASSEMBLY | 1 | €4.31 | 1-4 weeks to ship | |
| 033 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 034 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 035 | SPINDLE | 1 | Not available in store | |||
| 036 | BEARING RETAINER 19-33 | 1 | Not available in store | |||
| 037 | 213279-6 | O RING 18 | 1 | €0.83 | 1-4 weeks to ship | |
| 038 | 253397-8 | CUP WASHER 15 | 1 | €4.68 | 1-4 weeks to ship | |
| 039 | INNER FLANGE 36 | 1 | Not available in store | |||
| 040 | OUTER FLANGE 36 | 1 | Not available in store | |||
| 041 | HEX. SOCKET HEX. BOLT M6X18 | 1 | Not available in store | |||
| 042 | THUMB NUT M6 | 1 | Not available in store | |||
| 043 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 044 | 265939-6 | FLAT HEAD SQ. NECK BOLT M6X1 | 1 | €0.42 | 1-4 weeks to ship | |
| 045 | BASE | 1 | Not available in store | |||
| 046 | 266264-8 | H.S.SET SCREW(FLAT POINT)M5X | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | + PAN HEAD SCREW M5 | 1 | Not available in store | |||
| 049 | 257982-9 | BOW STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | LEVER PLATE | 1 | Not available in store | |||
| 051 | 264103-6 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 253111-2 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | CAP | 1 | Not available in store | |||
| 054 | WATER SUPPLY COVER ASSEMBL | 1 | Not available in store | |||
| 055 | 266034-5 | TAPPING SCREW CT 4X16 | 3 | €0.56 | 1-4 weeks to ship | |
| 056 | WATER SUPPLY COVER R | 1 | Not available in store | |||
| 057 | COMPRESSION SPRING 7 | 1 | Not available in store | |||
| 058 | BUTTON | 1 | Not available in store | |||
| 059 | COCK | 1 | Not available in store | |||
| 060 | RUBBER WASHER 5 | 1 | Not available in store | |||
| 061 | COCK BASE | 1 | Not available in store | |||
| 062 | NOZZLE | 1 | Not available in store | |||
| 063 | 213005-3 | O RING 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 064 | WATER SUPPLY COVER L | 1 | Not available in store | |||
| 065 | LEVER 16 | 1 | Not available in store | |||
| 066 | 266404-8 | TAPPING SCREW BIND 3X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 233267-7 | COMPRESSION SPRING 7 | 1 | €0.83 | 1-4 weeks to ship | |
| 068 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 069 | PAN HEAD SCREW M6X26 | 1 | Not available in store | |||
| 071 | WATER SUPPLY TANK COMPLETE | 1 | Not available in store | |||
| 073 | CAP COMPLETE | 1 | Not available in store | |||
| 074 | 213022-3 | O RING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 075 | CONTROLLER B S | 1 | Not available in store | |||
| 076 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
