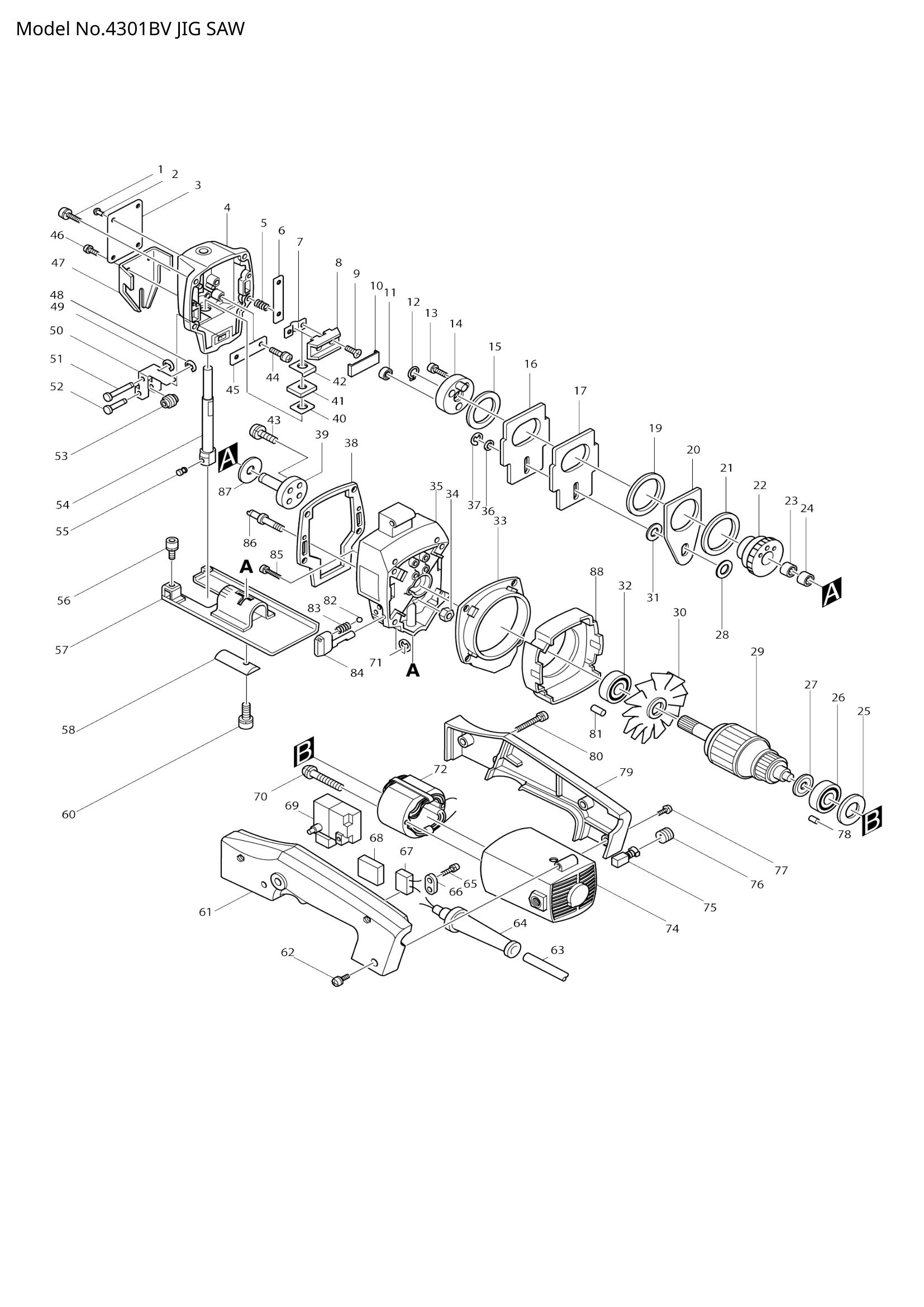

4301BV
4301BV
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 911136-9 | PAN HEAD SCREW M4X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 002 | 953106-2 | RIVET 0-5 | 4 | €0.56 | 1-4 weeks to ship | |
| 003 | NAME PLATE 4301BV | 1 | Not available in store | |||
| 004 | 157219-3 | GEAR HOUSING COVER | 1 | €49.82 | 1-4 weeks to ship | |
| 005 | 231314-8 | COMPRESSION SPRING 4 | 4 | €0.56 | 1-4 weeks to ship | |
| 006 | 342688-3 | SLIDE PLATE | 2 | €0.56 | 1-4 weeks to ship | |
| 007 | 342682-5 | SLIDER SUPPORT | 1 | €2.92 | 1-4 weeks to ship | |
| 008 | 331237-1 | SLIDER | 1 | €13.92 | 1-4 weeks to ship | |
| 009 | COUNTERSUNK HEAD SCREW M4 | 2 | Not available in store | |||
| 010 | 342685-9 | SLIDER PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 011 | 212010-7 | NEEDLE BEARING 607 | 1 | €13.92 | 1-4 weeks to ship | |
| 012 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 911221-8 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 014 | 152243-1 | CRANK COMPLETE | 1 | €21.57 | 1-4 weeks to ship | |
| 015 | 253122-7 | FLAT WASHER 26 | 1 | €2.09 | 1-4 weeks to ship | |
| 019 | 253880-5 | FLAT WASHER 35 | 1 | €2.92 | 1-4 weeks to ship | |
| 020 | 342684-1 | PUSH PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 021 | 253879-0 | FLAT WASHER 35 | 1 | €2.78 | 1-4 weeks to ship | |
| 022 | 221725-5 | HELICAL GEAR 51 | 1 | €36.18 | 1-4 weeks to ship | |
| 023 | 212005-0 | NEEDLE BEARING 810 | 1 | €4.17 | 1-4 weeks to ship | |
| 024 | 212005-0 | NEEDLE BEARING 810 | 1 | €4.17 | 1-4 weeks to ship | |
| 025 | 253192-6 | FLAT WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 211033-2 | BALL BEARING 608LB | 1 | €4.17 | 1-4 weeks to ship | |
| 028 | 253758-2 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | 253878-2 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 211033-2 | BALL BEARING 608LB | 1 | €4.17 | 1-4 weeks to ship | |
| 033 | 342689-1 | BAFFLE PLATE | 1 | €5.98 | 1-4 weeks to ship | |
| 034 | 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 157220-8 | GEAR HOUSING | 1 | €58.16 | 1-4 weeks to ship | |
| 036 | 253077-6 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 442062-6 | PACKING | 1 | €1.39 | 1-4 weeks to ship | |
| 039 | 321647-0 | GEAR SHAFT | 1 | €23.93 | 1-4 weeks to ship | |
| 040 | 253968-1 | WASHER 9 | 1 | €2.09 | 1-4 weeks to ship | |
| 041 | 443059-8 | FELT | 1 | €0.83 | 1-4 weeks to ship | |
| 042 | 342736-8 | DUST PLATE | 1 | €2.09 | 1-4 weeks to ship | |
| 043 | 911116-5 | PAN HEAD SCREW M4X12 | 4 | €0.56 | 1-4 weeks to ship | |
| 044 | 911106-8 | PAN HEAD SCREW M4X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 911106-8 | PAN HEAD SCREW M4X8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 045 | 342686-7 | HOLDER | 1 | €2.09 | 1-4 weeks to ship | |
| 046 | 911113-1 | PAN HEAD SCREW M4X10 WITH | 2 | €0.56 | 1-4 weeks to ship | |
| 047 | PROTECTOR | 1 | Not available in store | |||
| 048 | 961017-7 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 961017-7 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | PIN 4 | 1 | Not available in store | |||
| 056 | 922117-8 | HEX. SOCKET HEAD BOLT M4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 058 | 315643-8 | CLAMP PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| 061 | 181150-1 | HANDLE SET | 1 | €16.70 | 1-4 weeks to ship | |
| 062 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 068 | SPONGE SHEET | 1 | Not available in store | |||
| 071 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 076 | 643550-8 | BRUSH HOLDER CAP 5-8 | 2 | €0.83 | 1-4 weeks to ship | |
| 077 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 079 | 181150-1 | HANDLE SET | 1 | €16.70 | 1-4 weeks to ship | |
| 080 | 911153-9 | PAN HEAD SCREW M4X28 | 2 | €0.56 | 1-4 weeks to ship | |
| 081 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 082 | 216008-6 | STEEL BALL 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 083 | 231314-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 084 | 272217-7 | LEVER 23 | 1 | €7.79 | 1-4 weeks to ship | |
| 085 | 911146-6 | PAN HEAD SCREW M4X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 086 | 321648-8 | GUIDE PIN | 1 | €4.45 | 1-4 weeks to ship | |
| 087 | 253877-4 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 088 | 410199-7 | BAFFLE PLATE | 1 | €4.45 | 1-4 weeks to ship | |
| 400 | 271601-3 | KNOB 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 401 | 164112-4 | CIRCULAR GUIDE | 1 | €5.98 | 1-4 weeks to ship | |
| 402 | 323223-6 | CIRCULAR GUIDE PIN | 1 | €2.78 | 1-4 weeks to ship | |
| 403 | GUIDE RULE | 1 | Not available in store | |||
| 405 | HEX. WRENCH 3 | 1 | Not available in store | |||
