DBS180
DBS180

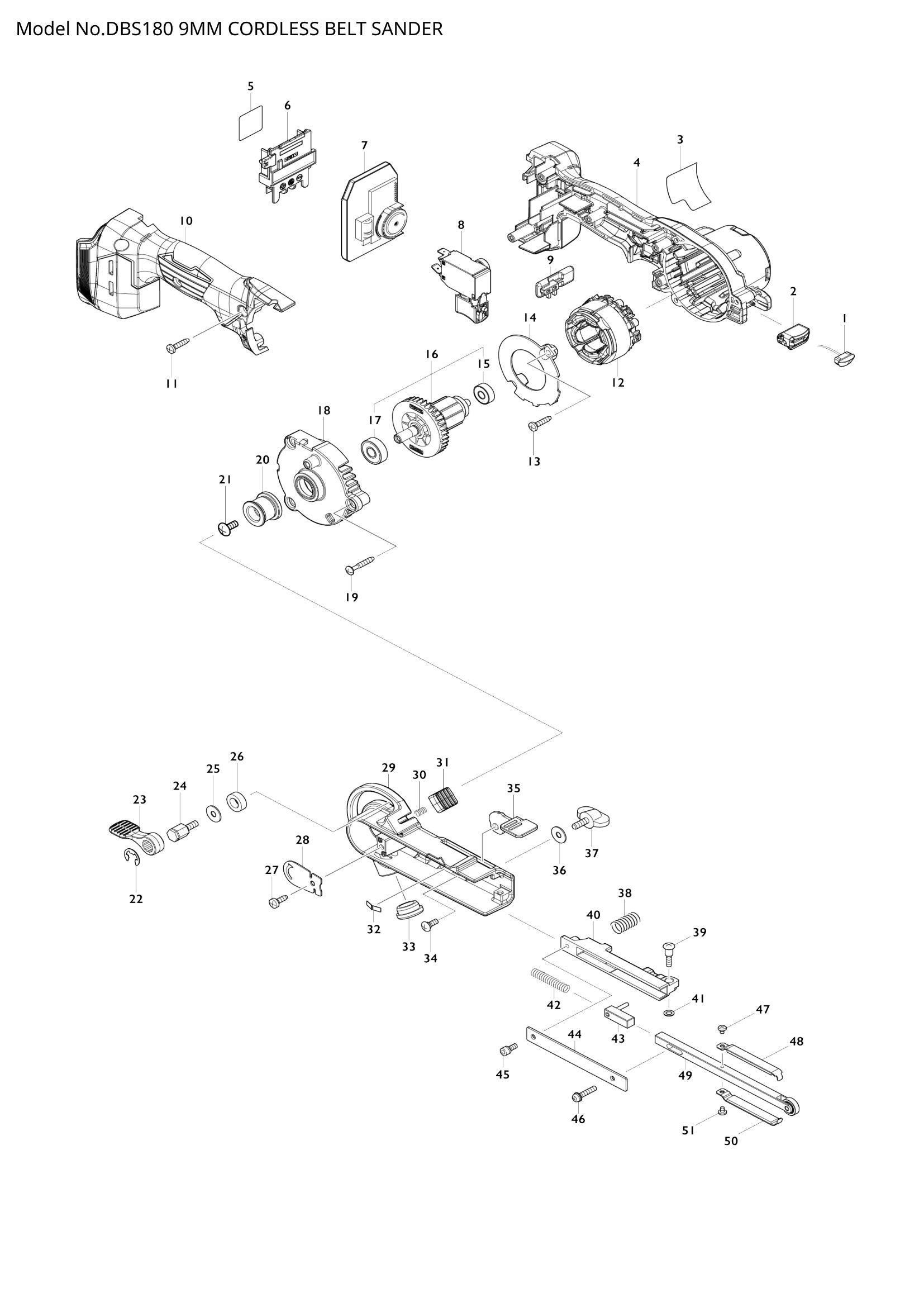

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | LED CIRCUIT | 1 | Not available in store | |||
| 002 | LED HOUSING | 1 | Not available in store | |||
| 003 | DBS180 NAME PLATE | 1 | Not available in store | |||
| 004 | MOTOR HOUSING HANDLE COV | 1 | Not available in store | |||
| 005 | DBS180 SERIAL NO. LABEL | 1 | Not available in store | |||
| 006 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 008 | 651493-0 | SWITCH C3JW-4CM-1L | 1 | €26.62 | 1-4 weeks to ship | |
| 009 | CHANGE LEVER | 1 | Not available in store | |||
| 010 | MOTOR HOUSING HANDLE COV | 1 | Not available in store | |||
| 011 | 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 013 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 014 | BAFFLE PLATE | 1 | Not available in store | |||
| 015 | BALL BEARING 606DDW | 1 | Not available in store | |||
| 016 | ROTOR ASSY | 1 | Not available in store | |||
| 017 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 018 | BRACKET | 1 | Not available in store | |||
| 019 | 265999-8 | TAPPING SCREW 4X25 | 3 | €0.56 | 1-4 weeks to ship | |
| 020 | 317522-6 | DRIVING ROLLER | 1 | €11.13 | 1-4 weeks to ship | |
| 021 | 265092-8 | TRUSS HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 961014-3 | STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 272229-0 | LEVER 40 | 1 | €2.78 | 1-4 weeks to ship | |
| 024 | 265494-8 | HEX. BOLT M5X13 | 1 | €4.17 | 1-4 weeks to ship | |
| 025 | 253807-5 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 257249-5 | RING 9 | 1 | €2.78 | 1-4 weeks to ship | |
| 027 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 345196-3 | SAFETY COVER | 1 | €1.67 | 1-4 weeks to ship | |
| 029 | PULLEY COVER COMPLETE | 1 | Not available in store | |||
| 031 | KNOB | 1 | Not available in store | |||
| 032 | 232185-6 | LEAF SPRING | 1 | €2.78 | 1-4 weeks to ship | |
| 033 | 421198-4 | CAP | 1 | €1.67 | 1-4 weeks to ship | |
| 034 | 265028-7 | + PAN HEAD SCREW M4X11 | 1 | €0.83 | 1-4 weeks to ship | |
| 035 | 345197-1 | CAM LEVER | 1 | €5.57 | 1-4 weeks to ship | |
| 037 | 265720-5 | THUMB SCREW M5X14 | 1 | €0.83 | 1-4 weeks to ship | |
| 038 | 233333-0 | COMPRESSION SPRING 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 039 | 265090-2 | + PAN HEAD SCREW M4X20 | 1 | €1.11 | 1-4 weeks to ship | |
| 040 | 317525-0 | ARM HOLDER | 1 | €33.40 | 1-4 weeks to ship | |
| 041 | 941052-1 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 233332-2 | COMPRESSION SPRING 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 043 | 153312-1 | ARM TENSIONER COMPLETE | 1 | €8.35 | 1-4 weeks to ship | |
| 044 | 345195-5 | ARM COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 045 | 922111-0 | HEX. SOCKET HEAD BOLT M4X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 265040-7 | + PAN HEAD SCREW M3X4 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 153314-7 | SHOE 9 COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 049 | ARM 9 COMPLETE | 1 | Not available in store | |||
| 050 | 153314-7 | SHOE 9 COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 051 | 265040-7 | + PAN HEAD SCREW M3X4 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | CONTROLLER B S | 1 | Not available in store | |||
| 053 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
