DBO480
DBO480

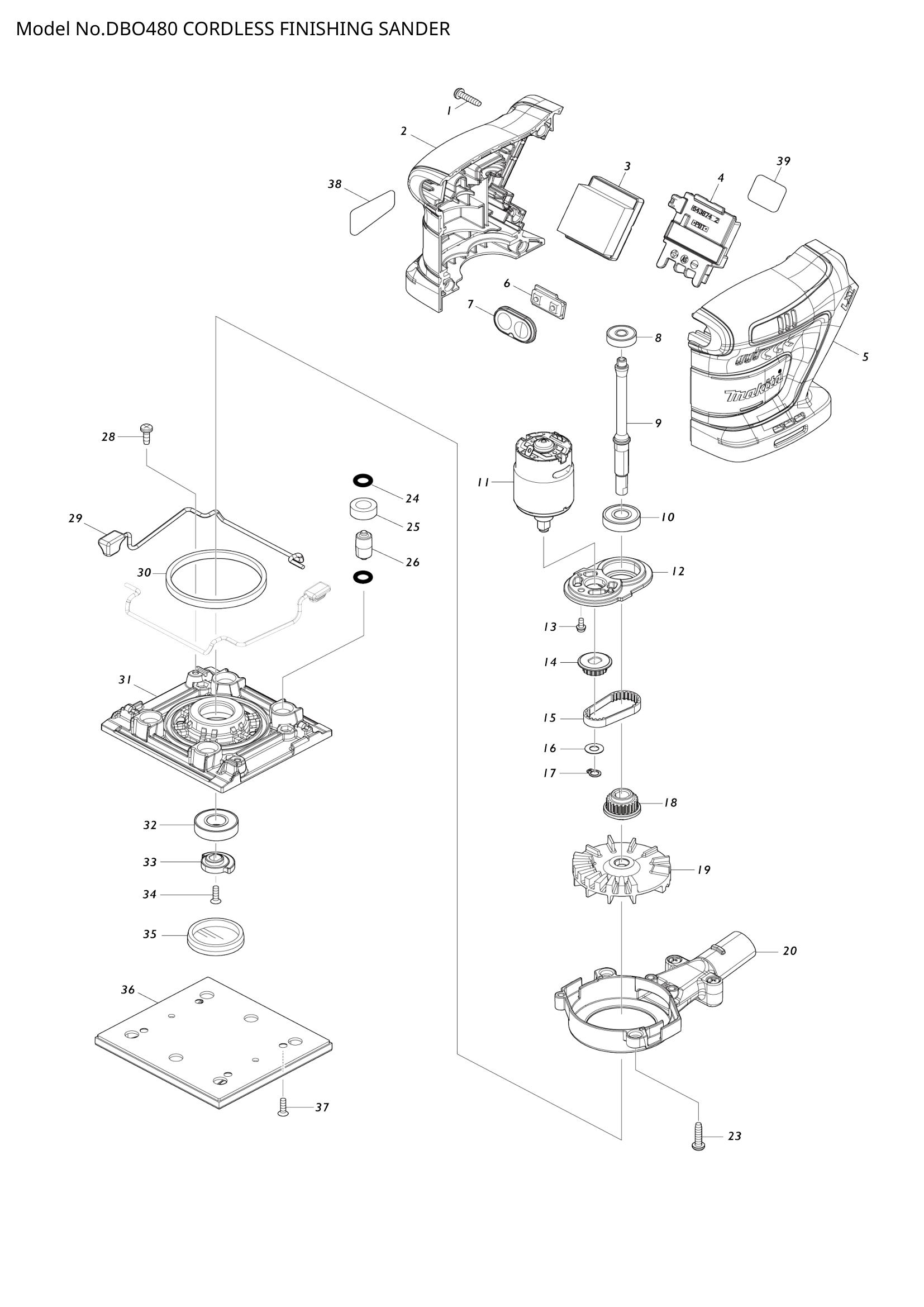

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 265995-6 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 002 | HOUSING SET | 1 | Not available in store | |||
| 003 | CONTROLLER UNIT | 1 | Not available in store | |||
| 004 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 005 | HOUSING SET | 1 | Not available in store | |||
| 006 | 632K92-3 | SWITCH UNIT | 1 | €7.54 | 1-4 weeks to ship | |
| 632K92-3 | SWITCH UNIT | 1 | €7.54 | 1-4 weeks to ship | ||
| 007 | SWITCH PLATE COMPLETE | 1 | Not available in store | |||
| 008 | 210143-2 | BALL BEARING 626ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 009 | SPINDLE | 1 | Not available in store | |||
| 010 | BALL BEARING 609DDW | 1 | Not available in store | |||
| 011 | DC MOTOR | 1 | Not available in store | |||
| 012 | MOTOR BRACKET | 1 | Not available in store | |||
| 013 | 265173-8 | PAN HEAD SCREW M3X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | PULLEY 7.5-15.5 | 1 | Not available in store | |||
| 015 | SYNCHRO BELT 6-108 | 1 | Not available in store | |||
| 016 | 253715-0 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 961002-0 | RETAINING RING S-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | PULLEY 7.5-20.3 | 1 | Not available in store | |||
| 019 | FAN 63 | 1 | Not available in store | |||
| 020 | FAN GUIDE ASSEMBLY | 1 | Not available in store | |||
| 023 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 024 | 213983-7 | O RING 4 | 8 | €0.56 | 1-4 weeks to ship | |
| 025 | 424023-8 | SPONGE SLEEVE 9 | 4 | €0.56 | 1-4 weeks to ship | |
| 026 | 318151-8 | FOOT | 4 | €0.56 | 1-4 weeks to ship | |
| 028 | 266020-6 | TAPPING SCREW 4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 029 | 162259-8 | LEVER COMPLETE | 2 | €1.39 | 1-4 weeks to ship | |
| 030 | 424684-4 | SPONGE 7X87X3 | 1 | €0.14 | 1-4 weeks to ship | |
| 031 | BASE | 1 | Not available in store | |||
| 032 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 033 | 313141-6 | BALANCER | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 912117-6 | COUNTERSUNK HEAD SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | CAP 36 | 1 | Not available in store | |||
| 036 | PAD COMPLETE SET | 1 | Not available in store | |||
| 037 | 912117-6 | COUNTERSUNK HEAD SCREW M4 | 4 | €0.56 | 1-4 weeks to ship | |
| 038 | DBO480 NAME PLATE | 1 | Not available in store | |||
| 039 | DBO480 SERIAL NO. LABEL | 1 | Not available in store | |||
