DBO382
DBO382

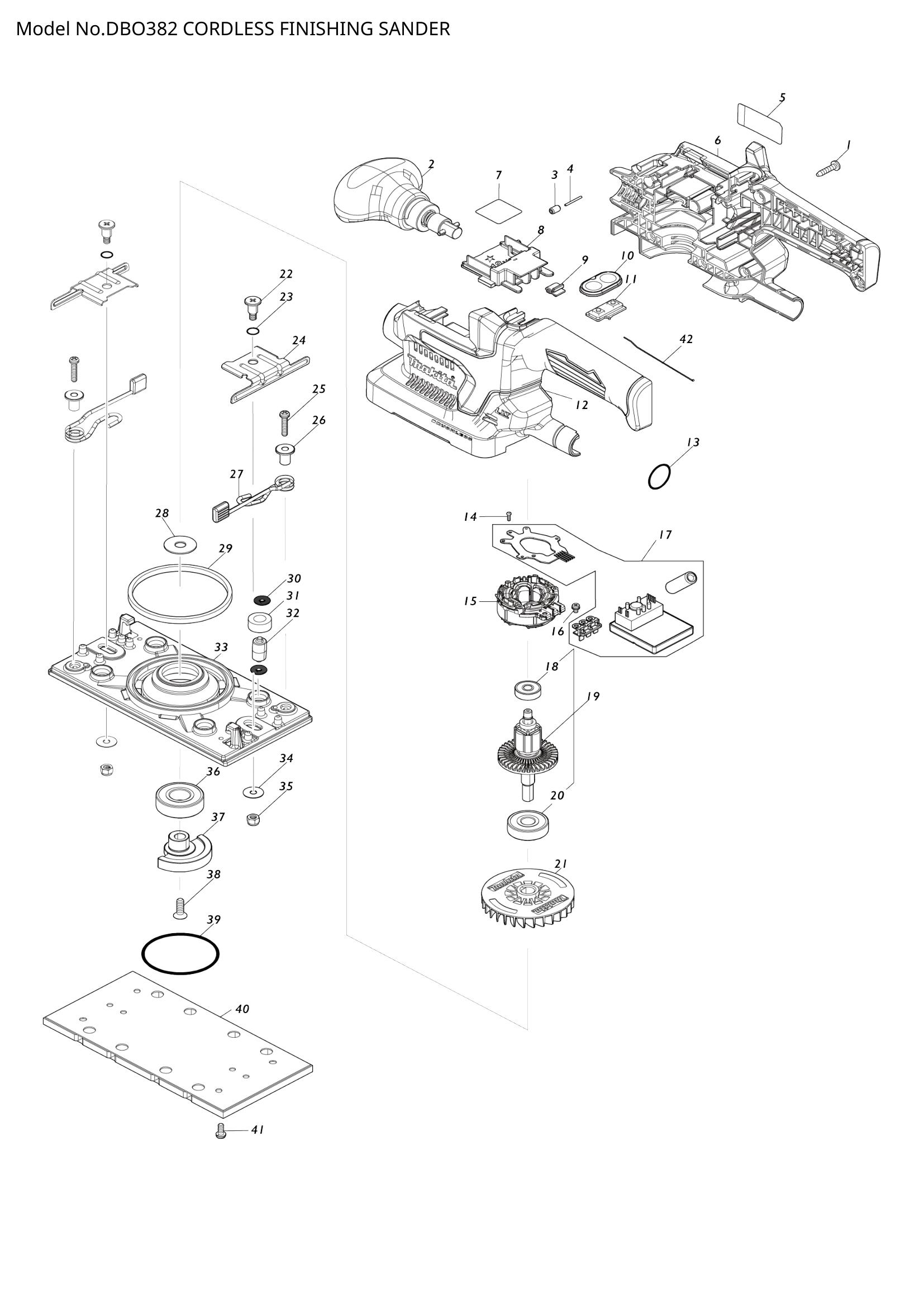

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 265995-6 | TAPPING SCREW 4X18 | 9 | €0.56 | 1-4 weeks to ship | |
| 002 | FRONT GRIP ASSEMBLY | 1 | Not available in store | |||
| 003 | 263036-2 | RUBBER PIN 5 | 1 | €1.67 | 1-4 weeks to ship | |
| 004 | 268284-8 | PIN 1.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | DBO382 NAME PLATE | 1 | Not available in store | |||
| 006 | HOUSING SET | 1 | Not available in store | |||
| 007 | DBO382 SERIAL NO. LABEL | 1 | Not available in store | |||
| 008 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 009 | 424517-3 | CUSHION | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | SWITCH PLATE COMPLETE | 1 | Not available in store | |||
| 011 | 632K92-3 | SWITCH UNIT | 1 | €7.54 | 1-4 weeks to ship | |
| 632K92-3 | SWITCH UNIT | 1 | €7.54 | 1-4 weeks to ship | ||
| 012 | HOUSING SET | 1 | Not available in store | |||
| 013 | 213315-8 | O RING 19 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 015 | STATOR | 1 | Not available in store | |||
| 016 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 017 | CONTROLLER | 1 | Not available in store | |||
| 018 | 210022-4 | BALL BEARING 626DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 019 | ROTOR ASSY | 1 | Not available in store | |||
| 020 | 211087-9 | BALL BEARING 6200DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 021 | FAN 68 | 1 | Not available in store | |||
| 022 | 266511-7 | + FLAT FILLISTER HEAD SCREW M | 2 | €0.56 | 1-4 weeks to ship | |
| 023 | 213045-1 | O-RING 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 024 | 346102-1 | PAPER CLAMP | 2 | €0.83 | 1-4 weeks to ship | |
| 025 | 911136-9 | PAN HEAD SCREW M4X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 026 | 310300-3 | SPRING GUIDE | 2 | €0.56 | 1-4 weeks to ship | |
| 027 | 162279-2 | LEVER COMPLETE | 2 | €1.39 | 1-4 weeks to ship | |
| 028 | 267353-2 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 423469-5 | SPONGE 7X105X3 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 213983-7 | O RING 4 | 8 | €0.56 | 1-4 weeks to ship | |
| 031 | 424056-3 | SPONGE SLEEVE 9 | 4 | €0.56 | 1-4 weeks to ship | |
| 032 | 318151-8 | FOOT | 4 | €0.56 | 1-4 weeks to ship | |
| 033 | 318484-1 | BASE | 1 | €13.92 | 1-4 weeks to ship | |
| 034 | FLAT WASHER 5 | 2 | Not available in store | |||
| 035 | 252103-8 | HEX. LOCK NUT M5-8 | 2 | €0.56 | 1-4 weeks to ship | |
| 036 | 211228-7 | BALL BEARING 6202DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 037 | BALANCER | 1 | Not available in store | |||
| 038 | 912222-9 | COUNTERSUNK HEAD SCREW M5 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 213656-2 | O RING 53 | 1 | €0.83 | 1-4 weeks to ship | |
| 040 | PAD COMPLETE SET | 1 | Not available in store | |||
| 041 | 911111-5 | PAN HEAD SCREW M4X10 WITH | 4 | €0.56 | 1-4 weeks to ship | |
| 042 | EARTH WIRE | 1 | Not available in store | |||
