DBN900
DBN900

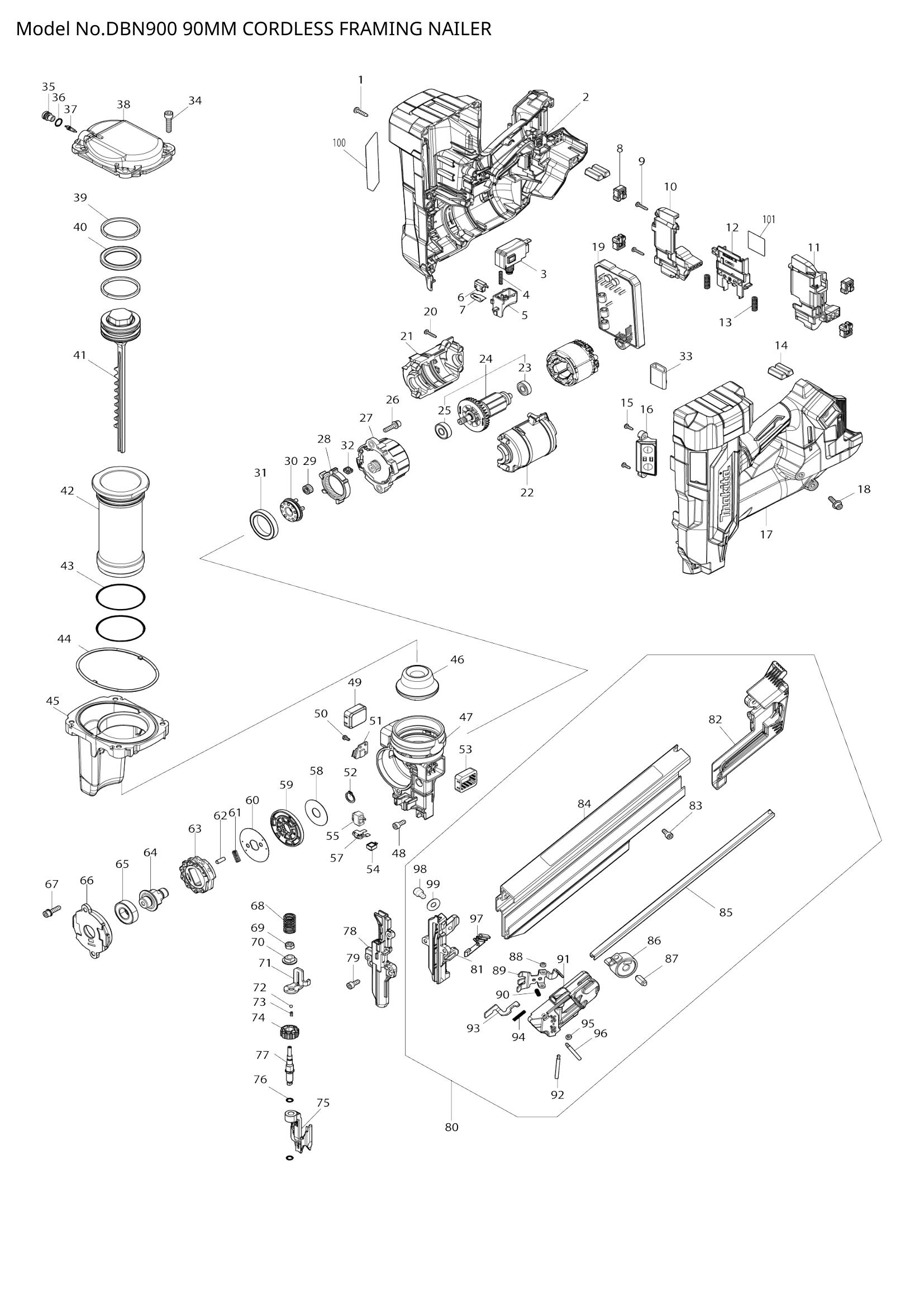

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 265995-6 | TAPPING SCREW 4X18 | 12 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 12 | €0.56 | 1-4 weeks to ship | ||
| 003 | SWITCH C3JR-5BM-PAND-2 | 1 | Not available in store | |||
| SWITCH C3JR-5BM-PAND-2 | 1 | Not available in store | ||||
| 004 | COMPRESSION SPRING 4 | 1 | Not available in store | |||
| COMPRESSION SPRING 4 | 1 | Not available in store | ||||
| 005 | TRIGGER | 1 | Not available in store | |||
| TRIGGER | 1 | Not available in store | ||||
| 006 | SWITCH UNIT | 1 | Not available in store | |||
| SWITCH UNIT | 1 | Not available in store | ||||
| 008 | HOLDER CUSHION | 4 | Not available in store | |||
| HOLDER CUSHION | 4 | Not available in store | ||||
| 009 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 010 | BATTERY HOLDER SET | 1 | Not available in store | |||
| BATTERY HOLDER SET | 1 | Not available in store | ||||
| 011 | BATTERY HOLDER SET | 1 | Not available in store | |||
| BATTERY HOLDER SET | 1 | Not available in store | ||||
| 012 | TERMINAL | 1 | Not available in store | |||
| TERMINAL | 1 | Not available in store | ||||
| 013 | COMPRESSION SPRING 7 | 2 | Not available in store | |||
| COMPRESSION SPRING 7 | 2 | Not available in store | ||||
| 014 | BATTERY CUSHION | 2 | Not available in store | |||
| BATTERY CUSHION | 2 | Not available in store | ||||
| 015 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 2 | €0.56 | 1-4 weeks to ship | |
| 266007-8 | TAPPING SCREW BIND PT 3X10 | 2 | €0.56 | 1-4 weeks to ship | ||
| 018 | H.S.H.BOLT M5X20 WITH WG | 1 | Not available in store | |||
| H.S.H.BOLT M5X20 WITH WG | 1 | Not available in store | ||||
| 020 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 5 | €0.56 | 1-4 weeks to ship | |
| 266130-9 | TAPPING SCREW BIND PT 3X16 | 5 | €0.56 | 1-4 weeks to ship | ||
| 021 | MOTOR HOUSING SET | 1 | Not available in store | |||
| MOTOR HOUSING SET | 1 | Not available in store | ||||
| 022 | MOTOR HOUSING SET | 1 | Not available in store | |||
| MOTOR HOUSING SET | 1 | Not available in store | ||||
| 023 | 210169-4 | BALL BEARING 607LLB | 1 | €0.70 | 1-4 weeks to ship | |
| 210169-4 | BALL BEARING 607LLB | 1 | €0.70 | 1-4 weeks to ship | ||
| 024 | ROTOR ASS'Y | 1 | Not available in store | |||
| ROTOR ASS'Y | 1 | Not available in store | ||||
| 025 | 210223-4 | BALL BEARING 608ZZ | 1 | €2.09 | 1-4 weeks to ship | |
| 210223-4 | BALL BEARING 608ZZ | 1 | €2.09 | 1-4 weeks to ship | ||
| 026 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 922233-6 | H.S.H.BOLT M5X20 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 027 | GEAR ASSEMBLY | 1 | Not available in store | |||
| GEAR ASSEMBLY | 1 | Not available in store | ||||
| 028 | INTERNAL GEAR 44 | 1 | Not available in store | |||
| INTERNAL GEAR 44 | 1 | Not available in store | ||||
| 029 | SPUR GEAR 13 | 5 | Not available in store | |||
| SPUR GEAR 13 | 5 | Not available in store | ||||
| 030 | CARRIER COMPLETE | 1 | Not available in store | |||
| CARRIER COMPLETE | 1 | Not available in store | ||||
| 031 | 211423-9 | BALL BEARING 6806DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 211423-9 | BALL BEARING 6806DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 032 | GEAR CHSHION | 4 | Not available in store | |||
| GEAR CHSHION | 4 | Not available in store | ||||
| 033 | 685722-9 | SPONGE | 1 | €0.56 | 1-4 weeks to ship | |
| 685722-9 | SPONGE | 1 | €0.56 | 1-4 weeks to ship | ||
| 034 | 922342-1 | HEX. SOCKET HEAD BOLT M6X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 922342-1 | HEX. SOCKET HEAD BOLT M6X25 | 4 | €0.56 | 1-4 weeks to ship | ||
| 035 | VALVE CAP | 1 | Not available in store | |||
| VALVE CAP | 1 | Not available in store | ||||
| 036 | 213007-9 | O RING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 213007-9 | O RING 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 037 | VALVE CORE | 1 | Not available in store | |||
| VALVE CORE | 1 | Not available in store | ||||
| 038 | TOP CAP | 1 | Not available in store | |||
| TOP CAP | 1 | Not available in store | ||||
| 039 | SLIDE RING | 2 | Not available in store | |||
| SLIDE RING | 2 | Not available in store | ||||
| 040 | X-RING 40 | 1 | Not available in store | |||
| X-RING 40 | 1 | Not available in store | ||||
| 041 | DRIVER COMPLETE | 1 | Not available in store | |||
| DRIVER COMPLETE | 1 | Not available in store | ||||
| 042 | CYLINDER | 1 | Not available in store | |||
| CYLINDER | 1 | Not available in store | ||||
| 043 | 213663-5 | O RING 55 | 2 | €0.83 | 1-4 weeks to ship | |
| 213663-5 | O RING 55 | 2 | €0.83 | 1-4 weeks to ship | ||
| 044 | SEAL RING | 1 | Not available in store | |||
| SEAL RING | 1 | Not available in store | ||||
| 045 | CHAMBER COMPLETE | 1 | Not available in store | |||
| CHAMBER COMPLETE | 1 | Not available in store | ||||
| 046 | FRONT CUSHION | 1 | Not available in store | |||
| FRONT CUSHION | 1 | Not available in store | ||||
| 047 | NOSE | 1 | Not available in store | |||
| NOSE | 1 | Not available in store | ||||
| 048 | H.S.H BOLT M5X12 | 3 | Not available in store | |||
| H.S.H BOLT M5X12 | 3 | Not available in store | ||||
| 049 | SIDE CUSHION | 1 | Not available in store | |||
| SIDE CUSHION | 1 | Not available in store | ||||
| 050 | 265173-8 | PAN HEAD SCREW M3X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 265173-8 | PAN HEAD SCREW M3X8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 051 | SENSOR CIRCUIT | 1 | Not available in store | |||
| SENSOR CIRCUIT | 1 | Not available in store | ||||
| 052 | RETAINING RING (EXT) S-13 | 1 | Not available in store | |||
| RETAINING RING (EXT) S-13 | 1 | Not available in store | ||||
| 053 | SIDE CUSHION | 1 | Not available in store | |||
| SIDE CUSHION | 1 | Not available in store | ||||
| 054 | LED CIRCUIT | 1 | Not available in store | |||
| LED CIRCUIT | 1 | Not available in store | ||||
| 055 | SWITCH ASSEMBLY | 1 | Not available in store | |||
| SWITCH ASSEMBLY | 1 | Not available in store | ||||
| 057 | LEAF SPRING | 1 | Not available in store | |||
| LEAF SPRING | 1 | Not available in store | ||||
| 058 | FLAT WASHER 14 | 1 | Not available in store | |||
| FLAT WASHER 14 | 1 | Not available in store | ||||
| 059 | HOLDER COMPLETE | 1 | Not available in store | |||
| HOLDER COMPLETE | 1 | Not available in store | ||||
| 060 | PIN COVER | 1 | Not available in store | |||
| PIN COVER | 1 | Not available in store | ||||
| 061 | COMPRESSION SPRING 4 | 1 | Not available in store | |||
| COMPRESSION SPRING 4 | 1 | Not available in store | ||||
| 062 | PIN 5 | 9 | Not available in store | |||
| PIN 5 | 9 | Not available in store | ||||
| 063 | LIFTER | 1 | Not available in store | |||
| LIFTER | 1 | Not available in store | ||||
| 064 | LIFTER SHAFT | 1 | Not available in store | |||
| LIFTER SHAFT | 1 | Not available in store | ||||
| 065 | 211236-8 | BALL BEARING 6002DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 211236-8 | BALL BEARING 6002DDW | 1 | €8.35 | 1-4 weeks to ship | ||
| 066 | LIFTER CAP | 1 | Not available in store | |||
| LIFTER CAP | 1 | Not available in store | ||||
| 068 | COMPRESSION SPRING 12 | 1 | Not available in store | |||
| COMPRESSION SPRING 12 | 1 | Not available in store | ||||
| 069 | HEX LOCK NUT M6-10 | 1 | Not available in store | |||
| HEX LOCK NUT M6-10 | 1 | Not available in store | ||||
| 070 | ADJUSTER SLEEVE | 1 | Not available in store | |||
| ADJUSTER SLEEVE | 1 | Not available in store | ||||
| 071 | CONTACT ARM | 1 | Not available in store | |||
| CONTACT ARM | 1 | Not available in store | ||||
| 072 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 073 | COMPRESSION SPRING 3 | 1 | Not available in store | |||
| COMPRESSION SPRING 3 | 1 | Not available in store | ||||
| 074 | ADJUSTER DIAL | 1 | Not available in store | |||
| ADJUSTER DIAL | 1 | Not available in store | ||||
| 075 | CONTACT TOP | 1 | Not available in store | |||
| CONTACT TOP | 1 | Not available in store | ||||
| 076 | 213005-3 | O RING 5 | 2 | €0.83 | 1-4 weeks to ship | |
| 213005-3 | O RING 5 | 2 | €0.83 | 1-4 weeks to ship | ||
| 077 | ADJUSTER SHAFT | 1 | Not available in store | |||
| ADJUSTER SHAFT | 1 | Not available in store | ||||
| 078 | DRIVER GUIDE | 1 | Not available in store | |||
| DRIVER GUIDE | 1 | Not available in store | ||||
| 079 | H.S.H BOLT M5X12 | 2 | Not available in store | |||
| H.S.H BOLT M5X12 | 2 | Not available in store | ||||
| 080 | MAGAZINE ASS'Y | 1 | Not available in store | |||
| MAGAZINE ASS'Y | 1 | Not available in store | ||||
| 081 | UNDER DRIVER GUIDE | 1 | Not available in store | |||
| UNDER DRIVER GUIDE | 1 | Not available in store | ||||
| 082 | MAGAZINE CAP | 1 | Not available in store | |||
| MAGAZINE CAP | 1 | Not available in store | ||||
| 083 | 922212-4 | HEX. SOCKET HEAD BOLT M5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 922212-4 | HEX. SOCKET HEAD BOLT M5X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 084 | MAGAZINE COMPLETE | 1 | Not available in store | |||
| MAGAZINE COMPLETE | 1 | Not available in store | ||||
| 085 | NAIL RAIL | 1 | Not available in store | |||
| NAIL RAIL | 1 | Not available in store | ||||
| 086 | SPIRAL SPRING COMPLETE | 1 | Not available in store | |||
| SPIRAL SPRING COMPLETE | 1 | Not available in store | ||||
| 087 | 256428-2 | PIN 5-8 | 1 | €0.83 | 1-4 weeks to ship | |
| 256428-2 | PIN 5-8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 088 | 262054-7 | URETHANE RING 3 | 1 | €0.97 | 1-4 weeks to ship | |
| 262054-7 | URETHANE RING 3 | 1 | €0.97 | 1-4 weeks to ship | ||
| 089 | PUSHER | 1 | Not available in store | |||
| PUSHER | 1 | Not available in store | ||||
| 090 | 234084-8 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 234084-8 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | ||
| 091 | PUSHER LEVER | 1 | Not available in store | |||
| PUSHER LEVER | 1 | Not available in store | ||||
| 092 | PIN 4 | 1 | Not available in store | |||
| PIN 4 | 1 | Not available in store | ||||
| 093 | LOCK PLATE | 1 | Not available in store | |||
| LOCK PLATE | 1 | Not available in store | ||||
| 095 | 262054-7 | URETHANE RING 3 | 1 | €0.97 | 1-4 weeks to ship | |
| 262054-7 | URETHANE RING 3 | 1 | €0.97 | 1-4 weeks to ship | ||
| 096 | PIN 4 | 1 | Not available in store | |||
| PIN 4 | 1 | Not available in store | ||||
| 097 | PUSHER CUSHION | 1 | Not available in store | |||
| PUSHER CUSHION | 1 | Not available in store | ||||
| 098 | HEX. SOCKET HEAD BOLT M6X10 | 1 | Not available in store | |||
| HEX. SOCKET HEAD BOLT M6X10 | 1 | Not available in store | ||||
| 100 | DBN900 NAME PLATE | 1 | Not available in store | |||
| DBN900 NAME PLATE | 1 | Not available in store | ||||
| 101 | DBN900 SERIAL NO.LABEL | 1 | Not available in store | |||
| DBN900 SERIAL NO.LABEL | 1 | Not available in store | ||||
