DBN500
DBN500

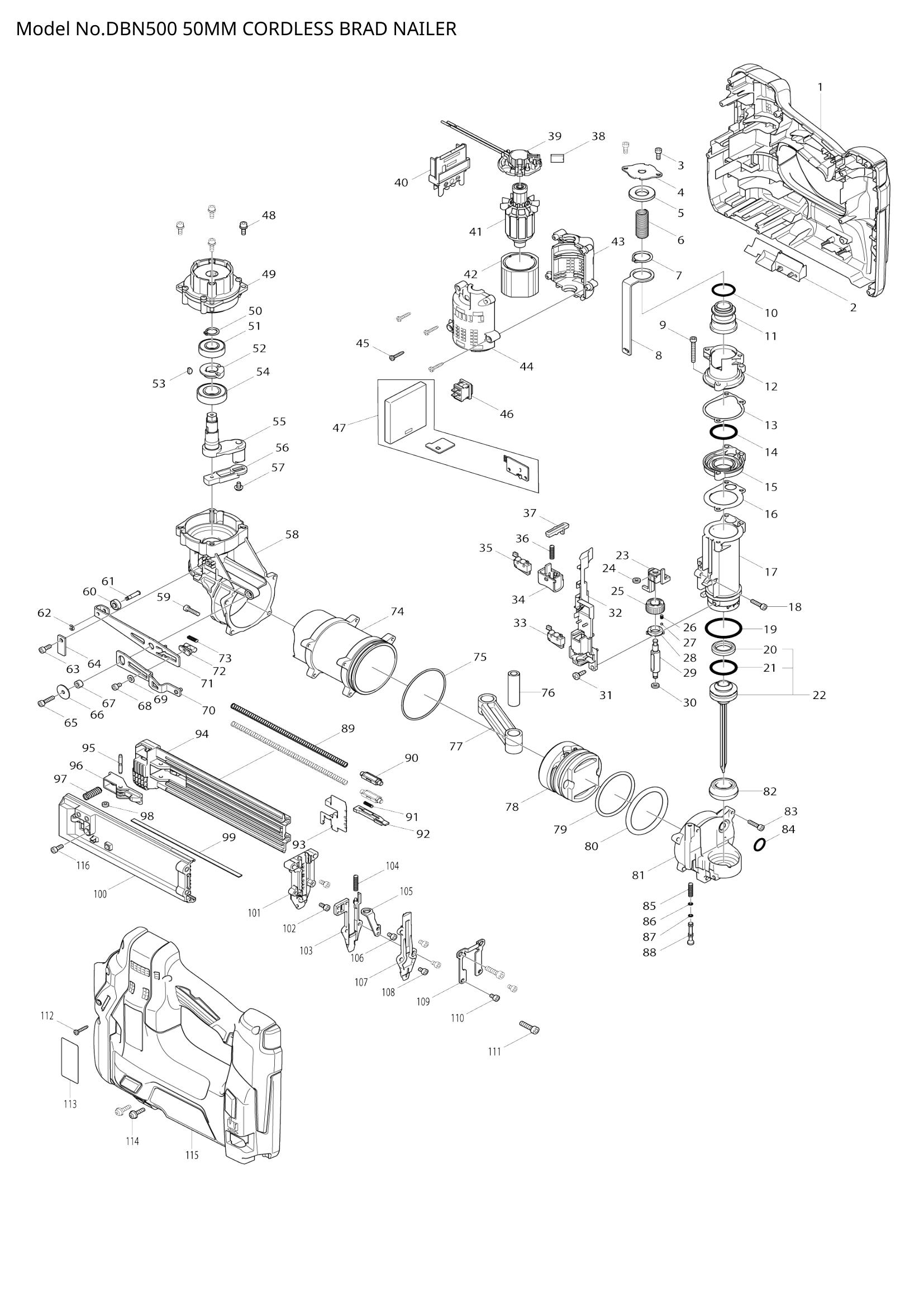

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 187864-0 | HOUSING SET | 1 | €44.67 | 1-4 weeks to ship | |
| 002 | 454946-6 | LED COVER | 1 | €1.81 | 1-4 weeks to ship | |
| 003 | 922112-8 | HEX. SOCKET HEAD BOLT M4X10 | 2 | €0.56 | 1-4 weeks to ship | |
| 004 | 346773-4 | TOPCAP | 1 | €0.70 | 1-4 weeks to ship | |
| 005 | 424625-0 | REAR CUSHION | 1 | €0.70 | 1-4 weeks to ship | |
| 007 | 961059-1 | RETAINING RING (EXT) S-19 | 1 | €0.28 | 1-4 weeks to ship | |
| 008 | 346776-8 | LINK ARM B | 1 | €4.04 | 1-4 weeks to ship | |
| 009 | 922157-6 | HEX. SOCKET HEAD BOLT M4X30 | 3 | €0.56 | 1-4 weeks to ship | |
| 010 | 213381-5 | O RING 21 | 1 | €0.83 | 1-4 weeks to ship | |
| 011 | 326398-0 | VALVE | 1 | €10.02 | 1-4 weeks to ship | |
| 012 | 319114-7 | CYLINDER HEAD | 1 | €7.24 | 1-4 weeks to ship | |
| 013 | 423472-6 | GASKET A | 1 | €2.09 | 1-4 weeks to ship | |
| 014 | 213364-5 | O RING 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 319116-3 | SEPARATER | 1 | €5.57 | 1-4 weeks to ship | |
| 016 | 423473-4 | GASKET B | 1 | €2.09 | 1-4 weeks to ship | |
| 017 | 319113-9 | DRIVER CYLINDER | 1 | €14.19 | 1-4 weeks to ship | |
| 018 | 922127-5 | HEX. SOCKET HEAD BOLT M4X16 | 3 | €0.56 | 1-4 weeks to ship | |
| 019 | 213475-6 | O RING 34 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 421551-4 | CUSHION "P" | 1 | €5.57 | 1-4 weeks to ship | |
| 021 | 213364-5 | O RING 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 135644-8 | DRIVER ASS'Y | 1 | €61.23 | 1-4 weeks to ship | |
| 023 | 310585-1 | ADJUSTER BLOCK | 1 | €28.66 | 1-4 weeks to ship | |
| 024 | 262130-7 | URETHANE RING 4 | 1 | €0.83 | 1-4 weeks to ship | |
| 025 | 454949-0 | ADJUSTER | 1 | €3.34 | 1-4 weeks to ship | |
| 026 | 234254-9 | COMPRESSION SPRING 2 | 1 | €1.25 | 1-4 weeks to ship | |
| 027 | 216031-1 | STEEL BALL 2.3 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 453807-7 | ADJUSTER GUIDE | 1 | €2.92 | 1-4 weeks to ship | |
| 029 | 326399-8 | ADJUSTER ROD | 1 | €2.50 | 1-4 weeks to ship | |
| 030 | 262130-7 | URETHANE RING 4 | 1 | €0.83 | 1-4 weeks to ship | |
| 031 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 032 | 454938-5 | SWITCH BASE | 1 | €2.92 | 1-4 weeks to ship | |
| 033 | 632C01-4 | SWITCH UNIT | 1 | €12.11 | 1-4 weeks to ship | |
| 034 | 454939-3 | TRIGGER | 1 | €1.67 | 1-4 weeks to ship | |
| 035 | 632C01-4 | SWITCH UNIT | 1 | €12.11 | 1-4 weeks to ship | |
| 037 | 454952-1 | TRIGGER LOCK | 1 | €1.67 | 1-4 weeks to ship | |
| 039 | 632B92-9 | BRUSH HOLDER COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 632B92-9 | BRUSH HOLDER COMPLETE | 1 | €2.78 | 1-4 weeks to ship | ||
| 040 | 643860-3 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 041 | 619339-6 | ARMATURE | 1 | €30.20 | 1-4 weeks to ship | |
| 042 | 638989-8 | YOKE UNIT | 1 | €19.48 | 1-4 weeks to ship | |
| 043 | 187809-8 | MOTOR HOUSING SET | 1 | €4.59 | 1-4 weeks to ship | |
| 044 | 187809-8 | MOTOR HOUSING SET | 1 | €4.59 | 1-4 weeks to ship | |
| 045 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 046 | 651533-4 | SWITCH SLE6A2-33 | 1 | €4.17 | 1-4 weeks to ship | |
| 047 | 620291-3 | CONTROLLER | 1 | €118.28 | 1-4 weeks to ship | |
| 048 | 266273-7 | HEX. SOCKET HEAD BOLT M4X12 | 4 | €0.56 | 1-4 weeks to ship | |
| 049 | 126398-8 | GEAR ASSEMBLY | 1 | €55.24 | 1-4 weeks to ship | |
| 050 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 210107-6 | BALL BEARING 6001ZZ | 1 | €1.39 | 1-4 weeks to ship | |
| 054 | BALL BEARING 6002ZZ | 1 | Not available in store | |||
| 056 | 142440-7 | MAGNET BASE COMPLETE | 1 | €6.26 | 1-4 weeks to ship | |
| 057 | 911109-2 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 911109-2 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 058 | 319112-1 | CRANK CASE | 1 | €30.06 | 1-4 weeks to ship | |
| 059 | 922127-5 | HEX. SOCKET HEAD BOLT M4X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 061 | 256553-9 | PIN4 | 1 | €0.83 | 1-4 weeks to ship | |
| 062 | 961017-7 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | |
| 063 | 922112-8 | HEX. SOCKET HEAD BOLT M4X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | 346778-4 | PLATE B | 1 | €0.56 | 1-4 weeks to ship | |
| 065 | 922127-5 | HEX. SOCKET HEAD BOLT M4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 267071-2 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 257822-1 | SLEEVE 8 | 1 | €1.67 | 1-4 weeks to ship | |
| 070 | 142442-3 | SUB ARM COMPLETE | 1 | €8.07 | 1-4 weeks to ship | |
| 071 | 346775-0 | LINK ARM A | 1 | €7.51 | 1-4 weeks to ship | |
| 072 | 310587-7 | SLIDER | 1 | €7.37 | 1-4 weeks to ship | |
| 073 | 234119-5 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 074 | 332099-0 | MAIN CYLINDER | 1 | €63.73 | 1-4 weeks to ship | |
| 075 | 213709-7 | O RING 63 | 1 | €1.11 | 1-4 weeks to ship | |
| 076 | 332101-9 | PIPE 12 | 1 | €3.48 | 1-4 weeks to ship | |
| 077 | 454937-7 | CONECTING ROD | 1 | €1.95 | 1-4 weeks to ship | |
| 078 | 454944-0 | PISTON A | 1 | €4.17 | 1-4 weeks to ship | |
| 079 | 213605-9 | O RING 50 | 1 | €0.83 | 1-4 weeks to ship | |
| 080 | 213609-1 | O RING 50 | 1 | €3.20 | 1-4 weeks to ship | |
| 082 | 424624-2 | CUSHION | 1 | €6.40 | 1-4 weeks to ship | |
| 083 | 922127-5 | HEX. SOCKET HEAD BOLT M4X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 085 | 234329-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 086 | 213044-3 | O RING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 087 | 213044-3 | O RING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 088 | 326401-7 | VALVE STEM | 1 | €4.31 | 1-4 weeks to ship | |
| 089 | 234325-2 | COMPRESSION SPRING 6 | 2 | €2.23 | 1-4 weeks to ship | |
| 090 | 454940-8 | SLEEVE | 2 | €1.39 | 1-4 weeks to ship | |
| 091 | 234326-0 | COMPRESSION SPRING 3 | 1 | €0.70 | 1-4 weeks to ship | |
| 092 | 310584-3 | STOPPER | 1 | €7.24 | 1-4 weeks to ship | |
| 093 | 346782-3 | PUSHER | 1 | €5.01 | 1-4 weeks to ship | |
| 094 | 454942-4 | SLIDE DOOR | 1 | €10.30 | 1-4 weeks to ship | |
| 095 | 256793-9 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 096 | 454945-8 | LOCK LEVER | 1 | €2.50 | 1-4 weeks to ship | |
| 097 | 233197-2 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 098 | 262054-7 | URETHANE RING 3 | 1 | €0.97 | 1-4 weeks to ship | |
| 099 | 346774-2 | NAIL PLATE | 1 | €0.97 | 1-4 weeks to ship | |
| 100 | 454943-2 | MAGAZINE | 1 | €13.08 | 1-4 weeks to ship | |
| 101 | 310588-5 | SET PLATE | 1 | €68.32 | 1-4 weeks to ship | |
| 102 | 265911-8 | HEX. SOCKET HEAD BOLT M4X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 103 | 142443-1 | CENTER PLATE COMPLETE | 1 | €32.00 | 1-4 weeks to ship | |
| 104 | 234328-6 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 105 | 346779-2 | ARM | 1 | €0.97 | 1-4 weeks to ship | |
| 106 | 922102-1 | HEX. SOCKET HEAD BOLT M4X6 | 1 | €0.56 | 1-4 weeks to ship | |
| 107 | 310586-9 | DRIVER GUIDE | 1 | €41.75 | 1-4 weeks to ship | |
| 108 | 922102-1 | HEX. SOCKET HEAD BOLT M4X6 | 3 | €0.56 | 1-4 weeks to ship | |
| 109 | 346777-6 | PLATE A | 1 | €1.11 | 1-4 weeks to ship | |
| 110 | 922102-1 | HEX. SOCKET HEAD BOLT M4X6 | 2 | €0.56 | 1-4 weeks to ship | |
| 111 | 266369-4 | HEX SOCKET HEAD BOLT M5X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 112 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 10 | €0.56 | 1-4 weeks to ship | |
| 113 | DBN500 NAME PLATE | 1 | Not available in store | |||
| 114 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 115 | 187864-0 | HOUSING SET | 1 | €44.67 | 1-4 weeks to ship | |
| 116 | 922112-8 | HEX. SOCKET HEAD BOLT M4X10 | 1 | €0.56 | 1-4 weeks to ship | |
