DBM230
DBM230

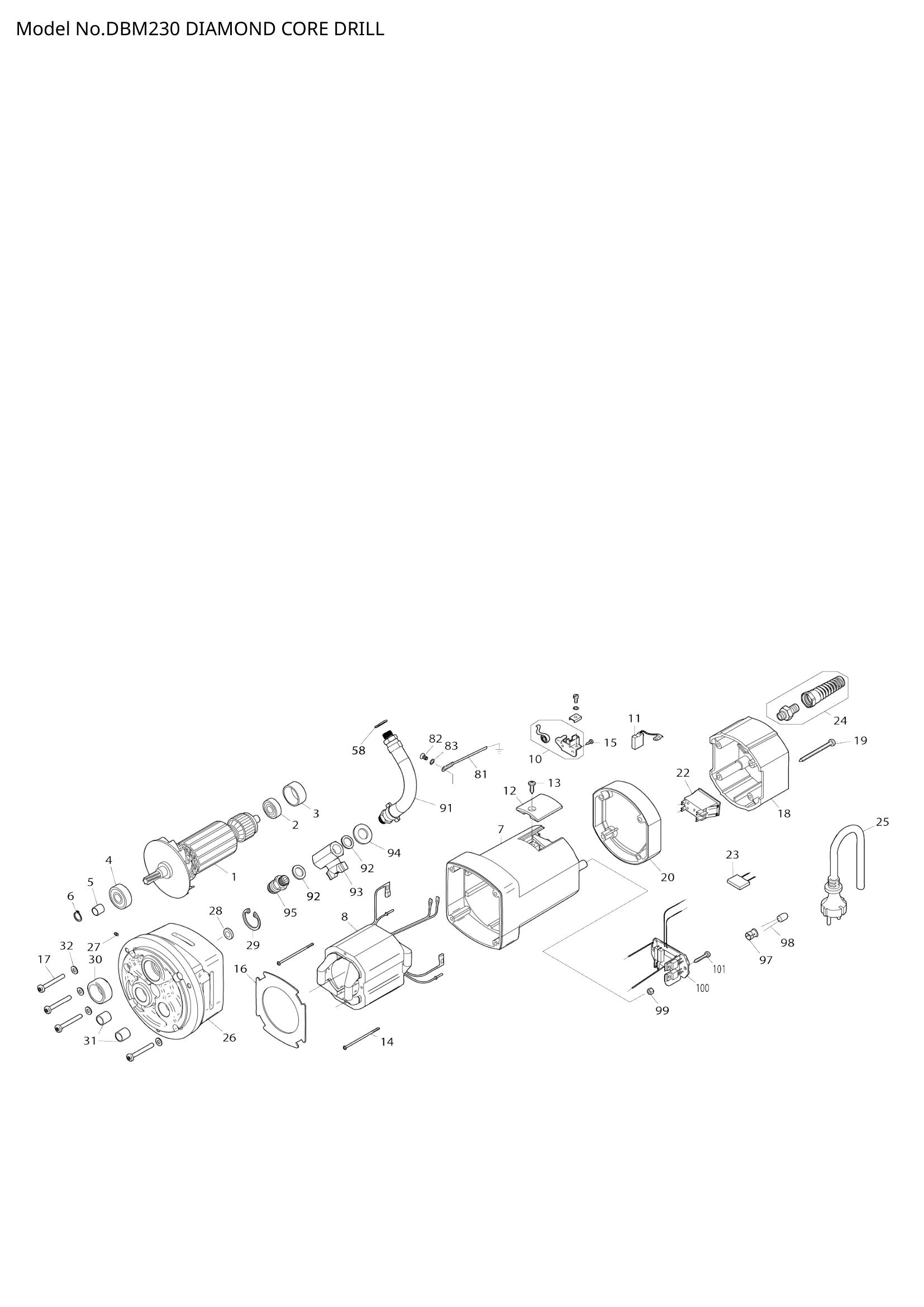

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | ROTOR COMPLETE | 1 | Not available in store | |||
| ROTOR COMPLETE | 1 | Not available in store | ||||
| 002 | GROOVED BALL BEARING | 1 | Not available in store | |||
| GROOVED BALL BEARING | 1 | Not available in store | ||||
| 003 | BEARING CAP | 1 | Not available in store | |||
| BEARING CAP | 1 | Not available in store | ||||
| 004 | GROOVED BALL BEARING 6201 R | 1 | Not available in store | |||
| GROOVED BALL BEARING 6201 R | 1 | Not available in store | ||||
| 005 | BEARING RING 12X15X12,5 | 1 | Not available in store | |||
| BEARING RING 12X15X12,5 | 1 | Not available in store | ||||
| 006 | LOCKING RING 12/1 | 1 | Not available in store | |||
| LOCKING RING 12/1 | 1 | Not available in store | ||||
| 007 | MOTOR HOUSING | 1 | Not available in store | |||
| MOTOR HOUSING | 1 | Not available in store | ||||
| 008 | STATOR COMPLETE | 1 | Not available in store | |||
| STATOR COMPLETE | 1 | Not available in store | ||||
| 010 | BRUSH HOLDER | 2 | Not available in store | |||
| BRUSH HOLDER | 2 | Not available in store | ||||
| 012 | BRUSH HOLDER COVER | 2 | Not available in store | |||
| BRUSH HOLDER COVER | 2 | Not available in store | ||||
| 013 | EE80201270 | SELF TAPPING SCREW | 2 | €2.09 | 1-4 weeks to ship | |
| EE80201270 | SELF TAPPING SCREW | 2 | €2.09 | 1-4 weeks to ship | ||
| 014 | SPECIAL SCREW MEPLAST 3X78 | 2 | Not available in store | |||
| SPECIAL SCREW MEPLAST 3X78 | 2 | Not available in store | ||||
| 015 | EE80201252 | SELF TAPPING SCREW HC 2,9X13 | 4 | €0.56 | 1-4 weeks to ship | |
| EE80201252 | SELF TAPPING SCREW HC 2,9X13 | 4 | €0.56 | 1-4 weeks to ship | ||
| 016 | AIR GUIDING RING | 1 | Not available in store | |||
| AIR GUIDING RING | 1 | Not available in store | ||||
| 017 | PT-SCREW 50X50 | 4 | Not available in store | |||
| PT-SCREW 50X50 | 4 | Not available in store | ||||
| 018 | CAP | 1 | Not available in store | |||
| CAP | 1 | Not available in store | ||||
| 019 | SELF TAPPING SCREW HC 4,8X70 | 4 | Not available in store | |||
| SELF TAPPING SCREW HC 4,8X70 | 4 | Not available in store | ||||
| 020 | INTERMEDIATE BLOCK | 1 | Not available in store | |||
| INTERMEDIATE BLOCK | 1 | Not available in store | ||||
| 022 | SWITCH ETA | 1 | Not available in store | |||
| SWITCH ETA | 1 | Not available in store | ||||
| 023 | EE80500010 | ANTI PARASITE CONDENSER | 1 | €11.13 | 1-4 weeks to ship | |
| EE80500010 | ANTI PARASITE CONDENSER | 1 | €11.13 | 1-4 weeks to ship | ||
| 024 | CABLE GUARD M20X1,5 | 1 | Not available in store | |||
| CABLE GUARD M20X1,5 | 1 | Not available in store | ||||
| 025 | CONNECTING CABLE, PRCD | 1 | Not available in store | |||
| CONNECTING CABLE, PRCD | 1 | Not available in store | ||||
| 026 | END SHIELD OF GEARING | 1 | Not available in store | |||
| END SHIELD OF GEARING | 1 | Not available in store | ||||
| 027 | THREADED PIN M6X10 | 1 | Not available in store | |||
| THREADED PIN M6X10 | 1 | Not available in store | ||||
| 028 | SHAFT SEAL RING KEIV 15X21X3 | 1 | Not available in store | |||
| SHAFT SEAL RING KEIV 15X21X3 | 1 | Not available in store | ||||
| 029 | LOCKING RING 32/1,2 | 1 | Not available in store | |||
| LOCKING RING 32/1,2 | 1 | Not available in store | ||||
| 030 | NEEDLE SLEEVE HK 2012 | 1 | Not available in store | |||
| NEEDLE SLEEVE HK 2012 | 1 | Not available in store | ||||
| 031 | NEEDLE SLEEVE HK 1212 | 2 | Not available in store | |||
| NEEDLE SLEEVE HK 1212 | 2 | Not available in store | ||||
| 032 | SEALING WASHER | 4 | Not available in store | |||
| SEALING WASHER | 4 | Not available in store | ||||
| 033 | WORK SPINDLE | 1 | Not available in store | |||
| WORK SPINDLE | 1 | Not available in store | ||||
| 034 | SHAFT SEAL RING 40X52X7 | 1 | Not available in store | |||
| SHAFT SEAL RING 40X52X7 | 1 | Not available in store | ||||
| 035 | SHAFT SEAL RING 40X55X7 | 2 | Not available in store | |||
| SHAFT SEAL RING 40X55X7 | 2 | Not available in store | ||||
| 036 | FITTING KEY 6X6X32 | 1 | Not available in store | |||
| FITTING KEY 6X6X32 | 1 | Not available in store | ||||
| 037 | LOCKING RING 52/2 | 1 | Not available in store | |||
| LOCKING RING 52/2 | 1 | Not available in store | ||||
| 038 | NEEDLE BEARING NKS 37 | 1 | Not available in store | |||
| NEEDLE BEARING NKS 37 | 1 | Not available in store | ||||
| 039 | STEEL RING | 1 | Not available in store | |||
| STEEL RING | 1 | Not available in store | ||||
| 040 | SPACER DISC LS 3047 | 2 | Not available in store | |||
| SPACER DISC LS 3047 | 2 | Not available in store | ||||
| 041 | AXIAL NEEDLE BEARING AXK304 | 2 | Not available in store | |||
| AXIAL NEEDLE BEARING AXK304 | 2 | Not available in store | ||||
| 042 | INTERMEDIATE DISC ZS3151 | 1 | Not available in store | |||
| INTERMEDIATE DISC ZS3151 | 1 | Not available in store | ||||
| 043 | SPRING WASHER 50X25,4X3 | 9 | Not available in store | |||
| SPRING WASHER 50X25,4X3 | 9 | Not available in store | ||||
| 044 | SUPPORTING DISC | 1 | Not available in store | |||
| SUPPORTING DISC | 1 | Not available in store | ||||
| 045 | SPINDLE WHEEL | 1 | Not available in store | |||
| SPINDLE WHEEL | 1 | Not available in store | ||||
| 047 | THRUST SLEEVE | 1 | Not available in store | |||
| THRUST SLEEVE | 1 | Not available in store | ||||
| 048 | BRAKING DISK | 2 | Not available in store | |||
| BRAKING DISK | 2 | Not available in store | ||||
| 049 | HEXAGONAL NUT M24X1,5 | 1 | Not available in store | |||
| HEXAGONAL NUT M24X1,5 | 1 | Not available in store | ||||
| 050 | GEARBOX HOUSING | 1 | Not available in store | |||
| GEARBOX HOUSING | 1 | Not available in store | ||||
| 051 | CONNECTING RING | 1 | Not available in store | |||
| CONNECTING RING | 1 | Not available in store | ||||
| 052 | ALLEN SCREW M6X25 | 3 | Not available in store | |||
| ALLEN SCREW M6X25 | 3 | Not available in store | ||||
| 053 | SAFETY WASHER S6 | 4 | Not available in store | |||
| SAFETY WASHER S6 | 4 | Not available in store | ||||
| 054 | ALLEN SCREW M5X55 | 3 | Not available in store | |||
| ALLEN SCREW M5X55 | 3 | Not available in store | ||||
| 055 | O-RING 50,52X1,78 | 1 | Not available in store | |||
| O-RING 50,52X1,78 | 1 | Not available in store | ||||
| 056 | DRILL BUSHING | 1 | Not available in store | |||
| DRILL BUSHING | 1 | Not available in store | ||||
| 057 | CAP SCREW 1/8" | 1 | Not available in store | |||
| CAP SCREW 1/8" | 1 | Not available in store | ||||
| 058 | SEALING RING 1/8" | 2 | Not available in store | |||
| SEALING RING 1/8" | 2 | Not available in store | ||||
| 059 | GEARBOX SEAL | 1 | Not available in store | |||
| GEARBOX SEAL | 1 | Not available in store | ||||
| 060 | SWITCHING COMPLETE | 1 | Not available in store | |||
| SWITCHING COMPLETE | 1 | Not available in store | ||||
| 061 | SWITCH BUTTON | 1 | Not available in store | |||
| SWITCH BUTTON | 1 | Not available in store | ||||
| 062 | CYLINDER PIN 4M6X12 | 1 | Not available in store | |||
| CYLINDER PIN 4M6X12 | 1 | Not available in store | ||||
| 063 | O-RING 18,77X1,75 | 1 | Not available in store | |||
| O-RING 18,77X1,75 | 1 | Not available in store | ||||
| 064 | GEAR LEVER | 1 | Not available in store | |||
| GEAR LEVER | 1 | Not available in store | ||||
| 065 | CYLINDER PIN 5M6X112 | 1 | Not available in store | |||
| CYLINDER PIN 5M6X112 | 1 | Not available in store | ||||
| 066 | SPACER | 1 | Not available in store | |||
| SPACER | 1 | Not available in store | ||||
| 067 | ALLEN SCREW M5X12 | 1 | Not available in store | |||
| ALLEN SCREW M5X12 | 1 | Not available in store | ||||
| 069 | PINION SHAFT | 1 | Not available in store | |||
| PINION SHAFT | 1 | Not available in store | ||||
| 070 | BALL | 2 | Not available in store | |||
| BALL | 2 | Not available in store | ||||
| 071 | COMPRESSION SPRING D079 | 1 | Not available in store | |||
| COMPRESSION SPRING D079 | 1 | Not available in store | ||||
| 072 | FITTING KEY 6X6X50 | 1 | Not available in store | |||
| FITTING KEY 6X6X50 | 1 | Not available in store | ||||
| 073 | LOOSE WHEEL 1 WITH BEARING | 1 | Not available in store | |||
| LOOSE WHEEL 1 WITH BEARING | 1 | Not available in store | ||||
| 075 | FITTING WASHER 20/24,5X1 | 1 | Not available in store | |||
| FITTING WASHER 20/24,5X1 | 1 | Not available in store | ||||
| 076 | CIRCLIP SW 20 | 1 | Not available in store | |||
| CIRCLIP SW 20 | 1 | Not available in store | ||||
| 077 | SWITCH WHEEL | 1 | Not available in store | |||
| SWITCH WHEEL | 1 | Not available in store | ||||
| 078 | LOOSE WHEEL 2 WITH BEARING | 1 | Not available in store | |||
| LOOSE WHEEL 2 WITH BEARING | 1 | Not available in store | ||||
| 079 | FITTING WASHER 16/22X1 | 1 | Not available in store | |||
| FITTING WASHER 16/22X1 | 1 | Not available in store | ||||
| 080 | LOCKING RING 16/1 | 1 | Not available in store | |||
| LOCKING RING 16/1 | 1 | Not available in store | ||||
| 081 | GROUND WIRE | 1 | Not available in store | |||
| GROUND WIRE | 1 | Not available in store | ||||
| 082 | LENS HEAD SCREW M4X6 | 1 | Not available in store | |||
| LENS HEAD SCREW M4X6 | 1 | Not available in store | ||||
| 083 | TOOTH LOCK WASHER A4,3 | 1 | Not available in store | |||
| TOOTH LOCK WASHER A4,3 | 1 | Not available in store | ||||
| 084 | COUNTERSHAFT | 1 | Not available in store | |||
| COUNTERSHAFT | 1 | Not available in store | ||||
| 085 | FITTING KEY 5X5X10 | 1 | Not available in store | |||
| FITTING KEY 5X5X10 | 1 | Not available in store | ||||
| 086 | REDUCTION WHEEL | 1 | Not available in store | |||
| REDUCTION WHEEL | 1 | Not available in store | ||||
| 087 | PUMP WHEEL | 1 | Not available in store | |||
| PUMP WHEEL | 1 | Not available in store | ||||
| 088 | GROOVED BALL BEARING | 1 | Not available in store | |||
| GROOVED BALL BEARING | 1 | Not available in store | ||||
| 089 | GROOVED BALL BEARING 6302 | 1 | Not available in store | |||
| GROOVED BALL BEARING 6302 | 1 | Not available in store | ||||
| 091 | CONNECTING HOSE, COMPLETE | 1 | Not available in store | |||
| CONNECTING HOSE, COMPLETE | 1 | Not available in store | ||||
| 092 | SEALING RING 1/4" | 2 | Not available in store | |||
| SEALING RING 1/4" | 2 | Not available in store | ||||
| 093 | MINI BALL VALVE | 1 | Not available in store | |||
| MINI BALL VALVE | 1 | Not available in store | ||||
| 094 | WASHER 13,5 | 1 | Not available in store | |||
| WASHER 13,5 | 1 | Not available in store | ||||
| 095 | GARDENA CONNECTOR MS | 1 | Not available in store | |||
| GARDENA CONNECTOR MS | 1 | Not available in store | ||||
| 097 | HOLDER | 1 | Not available in store | |||
| HOLDER | 1 | Not available in store | ||||
| 098 | LED | 1 | Not available in store | |||
| LED | 1 | Not available in store | ||||
| 099 | PLASTIC NUT M5 | 2 | Not available in store | |||
| PLASTIC NUT M5 | 2 | Not available in store | ||||
| 100 | CIRCUIT BOARD | 1 | Not available in store | |||
| CIRCUIT BOARD | 1 | Not available in store | ||||
| 101 | SELF TAPPING SCREW HC 4,2X25 | 2 | Not available in store | |||
| SELF TAPPING SCREW HC 4,2X25 | 2 | Not available in store | ||||
