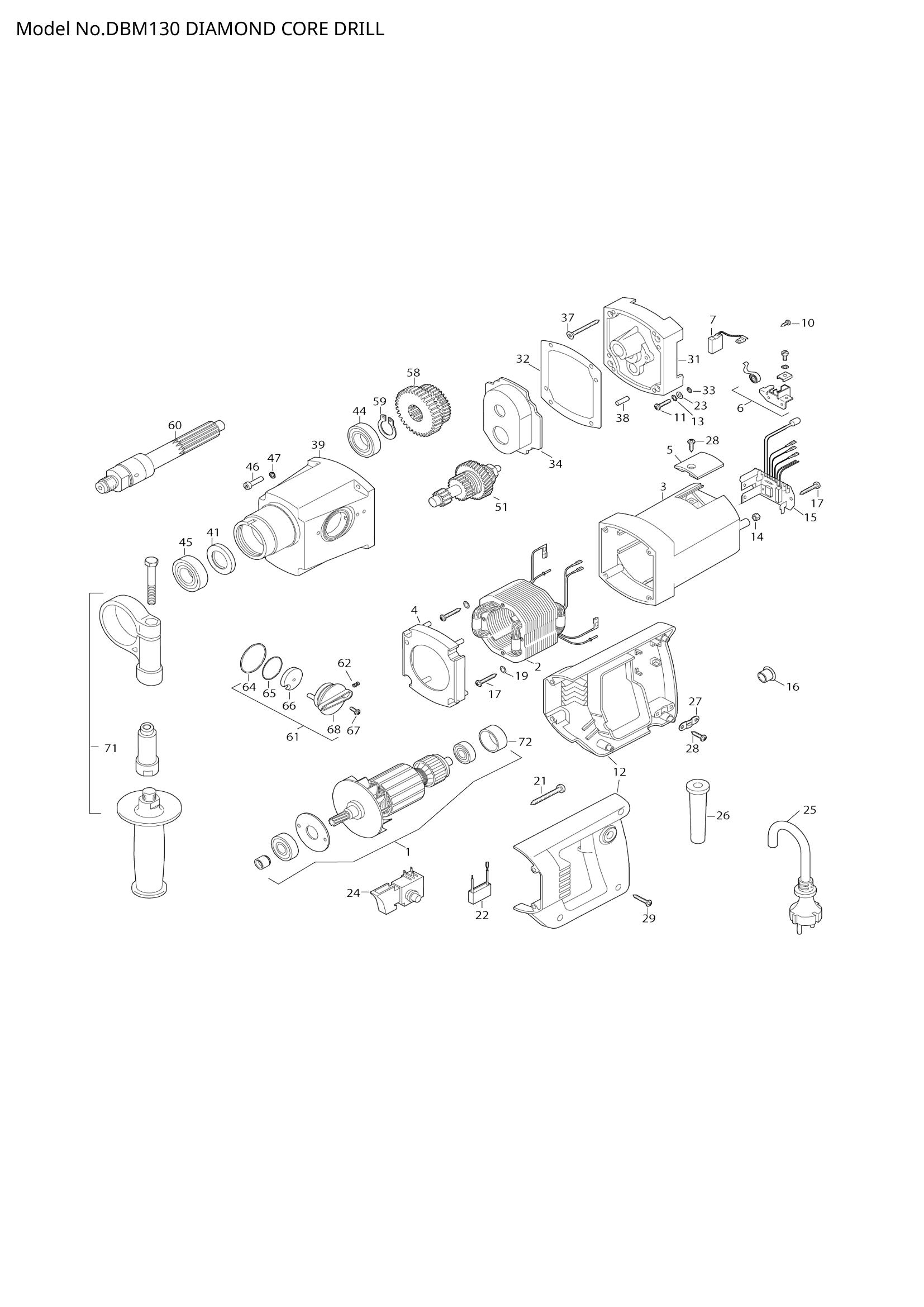

DBM130
DBM130
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | ROTOR COMPLETE 230V | 1 | Not available in store | |||
| 002 | STATOR COMPLETE 230V | 1 | Not available in store | |||
| 003 | MOTOR HOUSING | 1 | Not available in store | |||
| 004 | AIR GUIDING RING | 1 | Not available in store | |||
| 005 | BRUSH HOLDER COVER | 2 | Not available in store | |||
| 006 | BRUSH HOLDER | 2 | Not available in store | |||
| 010 | EE80201252 | SELF TAPPING SCREW HC 2,9X13 | 4 | €0.56 | 1-4 weeks to ship | |
| 011 | LENS HEAD SCREW M4X16 | 2 | Not available in store | |||
| 012 | PAIR OF HANDLE HALVES | 1 | Not available in store | |||
| 013 | TOOTH LOCK WASHER A4,3 | 2 | Not available in store | |||
| 014 | PLASTIC NUT M5 | 2 | Not available in store | |||
| 015 | CIRCUIT BOARD 230V | 1 | Not available in store | |||
| 016 | PLUG | 1 | Not available in store | |||
| 017 | SELF TAPPING SCREW HC 4,2X25 | 4 | Not available in store | |||
| 019 | SAFETY WASHER S6 | 2 | Not available in store | |||
| 021 | EE80201267 | SELF TAPPING SCREW | 4 | €2.78 | 1-4 weeks to ship | |
| 022 | ANTI PARASITE CONDENSER | 1 | Not available in store | |||
| 023 | DISC | 2 | Not available in store | |||
| 024 | SWITCH | 1 | Not available in store | |||
| 025 | CONNECTING CABLE | 1 | Not available in store | |||
| 026 | EE83000004 | CABLE GROMMET | 1 | €4.17 | 1-4 weeks to ship | |
| 027 | EE85000020 | WIRE LOCKING FLANGE | 1 | €2.78 | 1-4 weeks to ship | |
| 028 | EE80201270 | SELF TAPPING SCREW | 4 | €2.09 | 1-4 weeks to ship | |
| 029 | SELF TAPPING SCREW HC 4,2X22 | 3 | Not available in store | |||
| 031 | END SHIELD OF GEARING | 1 | Not available in store | |||
| 032 | EE82000501 | GEARBOX SEAL | 1 | €5.57 | 1-4 weeks to ship | |
| 033 | O-RING 3,68X1,78 NBR | 2 | Not available in store | |||
| 034 | GREASE COMPARTMENT BARRIE | 1 | Not available in store | |||
| 037 | SCREW 4,5X50 | 4 | Not available in store | |||
| 038 | NOTCHED PIN PLUG 5X16 | 2 | Not available in store | |||
| 039 | GEARBOX HOUSING | 1 | Not available in store | |||
| 041 | SHAFT SEAL RING 20X35X7 | 1 | Not available in store | |||
| 044 | GROOVED BALL BEARING 6904 2 | 1 | Not available in store | |||
| 045 | GROOVED BALL BEARING | 1 | Not available in store | |||
| 046 | ALLEN SCREW M5X20 | 4 | Not available in store | |||
| 047 | LOCK WASHER | 4 | Not available in store | |||
| 051 | CLUTCH COMPLETE | 1 | Not available in store | |||
| 058 | GEAR BLOCK | 1 | Not available in store | |||
| 059 | LOCKING RING 19/1 | 1 | Not available in store | |||
| 060 | WORK SPINDLE | 1 | Not available in store | |||
| 061 | GEAR CHANGER COMPLETE | 1 | Not available in store | |||
| 062 | SNAP BOLT | 1 | Not available in store | |||
| 064 | O RING | 1 | Not available in store | |||
| 065 | O-RING 28X1 NBR | 1 | Not available in store | |||
| 066 | MOUNTING PLATE | 1 | Not available in store | |||
| 067 | SCREW M3X12 | 1 | Not available in store | |||
| 068 | SWITCH BUTTON | 1 | Not available in store | |||
| 071 | SIDE HANDLE | 1 | Not available in store | |||
| 072 | BEARING CAP | 1 | Not available in store | |||
