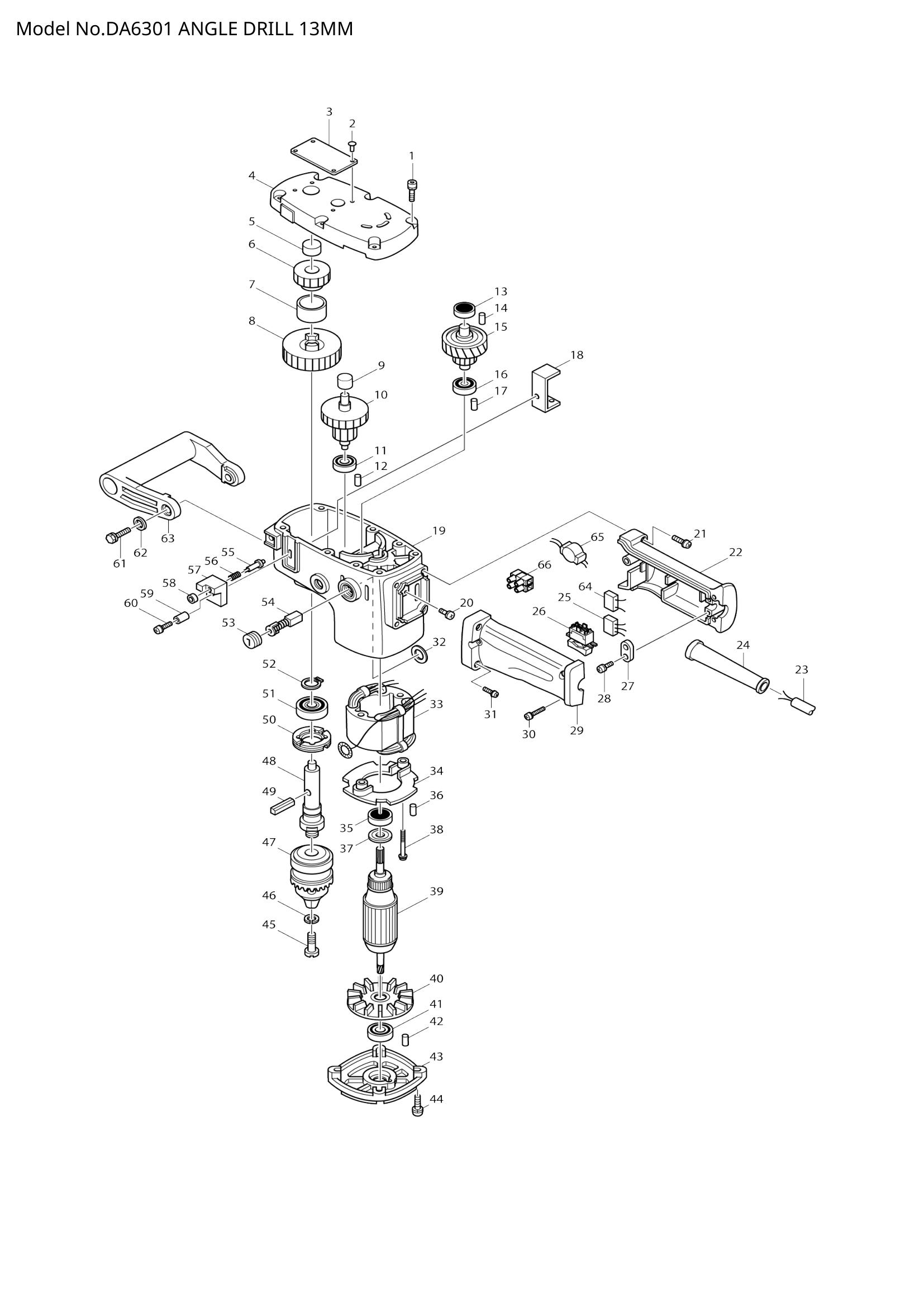

DA6301
DA6301
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 911241-2 | PAN HEAD SCREW M5X25 | 6 | €0.56 | 1-4 weeks to ship | |
| 002 | 953106-2 | RIVET 0-5 | 4 | €0.56 | 1-4 weeks to ship | |
| 003 | NAME PLATE DA6301 | 1 | Not available in store | |||
| 004 | HOUSING COVER | 1 | Not available in store | |||
| 005 | 212052-1 | NEEDLE BEARING 1010 | 1 | €2.78 | 1-4 weeks to ship | |
| 006 | SPUR GEAR 33 | 1 | Not available in store | |||
| 007 | 257573-6 | SLEEVE 26 | 1 | €4.45 | 1-4 weeks to ship | |
| 008 | 221876-4 | SPUR GEAR 57 | 1 | €36.18 | 1-4 weeks to ship | |
| 009 | 212004-2 | NEEDLE BEARING 810 | 1 | €5.57 | 1-4 weeks to ship | |
| 010 | 226070-3 | GEAR COMPLETE 20-45 | 1 | €44.53 | 1-4 weeks to ship | |
| 011 | 211033-2 | BALL BEARING 608LB | 1 | €4.17 | 1-4 weeks to ship | |
| 012 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 211028-5 | BALL BEARING 627LB | 1 | €4.17 | 1-4 weeks to ship | |
| 014 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 155700-8 | TORQUE LIMITER COMPLETE | 1 | €175.33 | 1-4 weeks to ship | |
| 017 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 341749-6 | SLIDER | 1 | €4.17 | 1-4 weeks to ship | |
| 019 | HOUSING COMPLETE | 1 | Not available in store | |||
| 020 | 652014-1 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 911216-1 | PAN HEAD SCREW M5X14 | 2 | €0.56 | 1-4 weeks to ship | |
| 028 | 911133-5 | PAN HEAD SCREW M4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 030 | 911143-2 | PAN HEAD SCREW M4X22 | 3 | €0.56 | 1-4 weeks to ship | |
| 031 | 911216-1 | PAN HEAD SCREW M5X14 | 2 | €0.56 | 1-4 weeks to ship | |
| 032 | INSULATION WASHER | 2 | Not available in store | |||
| 033 | 522528-3 | FIELD ASS'Y 220V | 1 | €44.53 | 1-4 weeks to ship | |
| 034 | BAFFLE PLATE | 1 | Not available in store | |||
| 035 | 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 036 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 213059-0 | DUST SEAL 10 | 1 | €2.92 | 1-4 weeks to ship | |
| 038 | PAN HEAD SCREW M5X60 | 2 | Not available in store | |||
| 040 | 241635-0 | FAN 70 | 1 | €12.38 | 1-4 weeks to ship | |
| 041 | 211033-2 | BALL BEARING 608LB | 1 | €4.17 | 1-4 weeks to ship | |
| 042 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | BEARING BOX COMPLETE | 1 | Not available in store | |||
| 044 | 911236-5 | PAN HEAD SCREW M5X22 | 4 | €0.83 | 1-4 weeks to ship | |
| 045 | 251442-3 | - FLAT HEAD SCREW M6X26 | 1 | €5.57 | 1-4 weeks to ship | |
| 046 | 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 047 | DRILL CHUCK | 1 | Not available in store | |||
| 048 | SPINDLE | 1 | Not available in store | |||
| 049 | 321530-1 | PIN 6 | 1 | €4.17 | 1-4 weeks to ship | |
| 050 | 285809-3 | BEARING RETAINER 23-36 | 1 | €0.83 | 1-4 weeks to ship | |
| 052 | 961057-5 | RETAINING RING S-17 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 643600-9 | BRUSH HOLDER CAP 6-10 | 2 | €0.83 | 1-4 weeks to ship | |
| 055 | 321891-9 | STOPPER PIN | 1 | €2.92 | 1-4 weeks to ship | |
| 056 | 231098-8 | COMPRESSION SPRING 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 057 | SLIDE BUTTON | 1 | Not available in store | |||
| 058 | 321892-7 | NUT | 1 | €2.92 | 1-4 weeks to ship | |
| 059 | 257574-4 | SLEEVE 5 | 1 | €2.78 | 1-4 weeks to ship | |
| 060 | 911218-7 | PAN HEAD SCREW M5X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | HEX. BOLT M8X25 | 2 | Not available in store | |||
| 062 | 941202-8 | FLAT WASHER 8 | 2 | €0.56 | 1-4 weeks to ship | |
| 063 | 273628-9 | GRIP | 1 | €8.35 | 1-4 weeks to ship | |
| 065 | LINE COIL | 1 | Not available in store | |||
| 066 | 654531-7 | TERMINAL BLOCK 2P | 1 | €2.78 | 1-4 weeks to ship | |
| 067 | 421297-2 | DUST COVER | 1 | €4.17 | 1-4 weeks to ship | |
