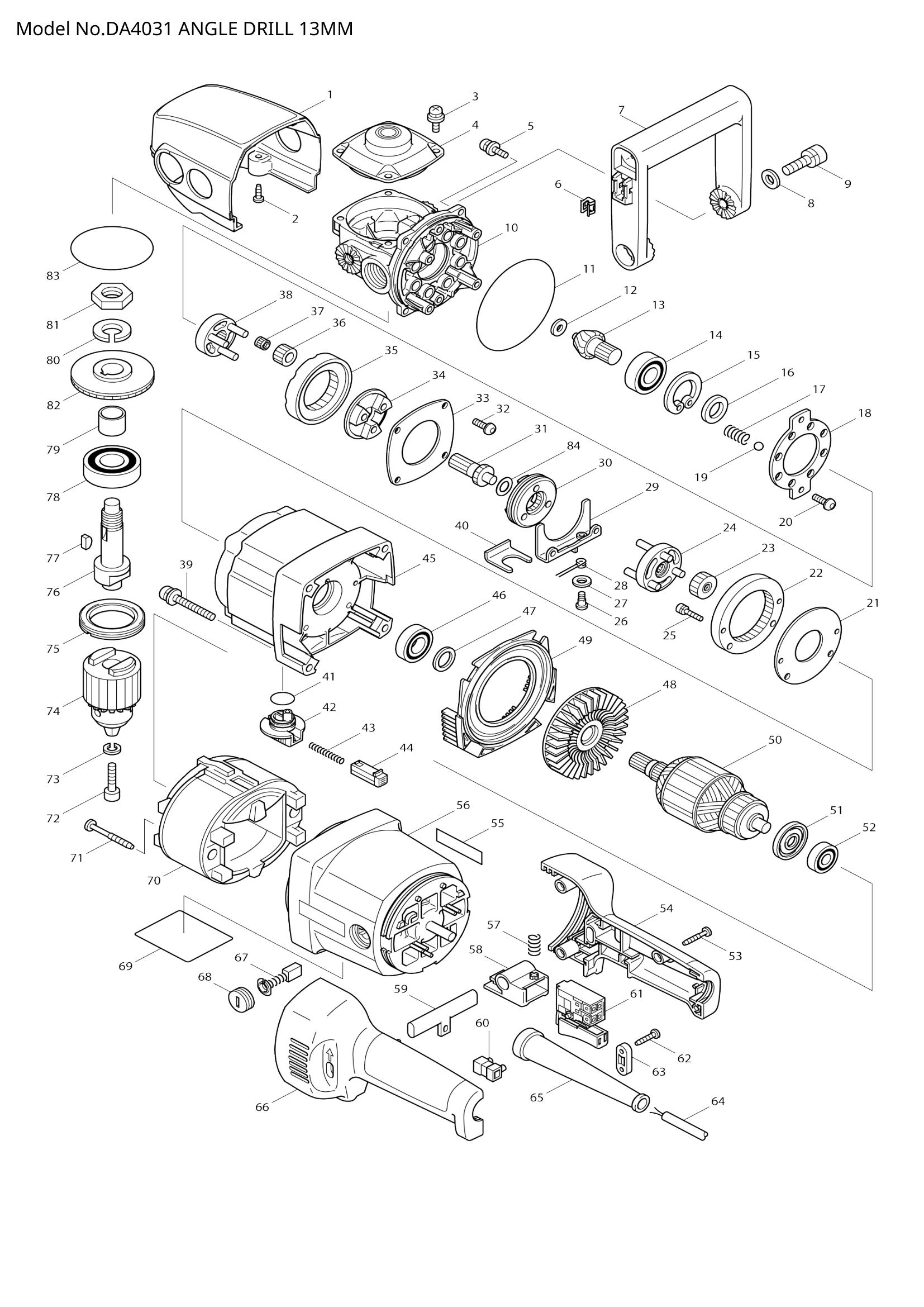

DA4031
DA4031
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | TOP COVER | 1 | Not available in store | |||
| 002 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 004 | GEAR HOUSING COVER COMPLE | 1 | Not available in store | |||
| 006 | 344391-2 | BIT HOLDER | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 417665-5 | FRONT GRIP | 1 | €11.13 | 1-4 weeks to ship | |
| 008 | 941202-8 | FLAT WASHER 8 | 2 | €0.56 | 1-4 weeks to ship | |
| 009 | 922441-9 | HEX. SOCKET HEAD BOLT M8X25 | 2 | €0.83 | 1-4 weeks to ship | |
| 010 | GEAR HOUSING COMPLETE | 1 | Not available in store | |||
| 011 | 213803-5 | O RING 85 | 1 | €1.53 | 1-4 weeks to ship | |
| 213803-5 | O RING 85 | 1 | €1.53 | 1-4 weeks to ship | ||
| 012 | 253804-1 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 211206-7 | BALL BEARING 6202LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 015 | 962153-2 | RETAINING RING R-35 | 1 | €0.83 | 1-4 weeks to ship | |
| 016 | RING 15 | 1 | Not available in store | |||
| 017 | COMPRESSION SPRING 5 | 8 | Not available in store | |||
| 018 | GUIDE PLATE | 1 | Not available in store | |||
| 019 | 216022-2 | STEEL BALL 7.0 | 8 | €0.56 | 1-4 weeks to ship | |
| 020 | 265491-4 | H.S. BUTTON HEAD BOLT M5X16 | 2 | €0.14 | 1-4 weeks to ship | |
| 021 | PLATE | 1 | Not available in store | |||
| 022 | INTERNAL GEAR 49 | 1 | Not available in store | |||
| 023 | SPUR GEAR 19 COMPLETE | 3 | Not available in store | |||
| 024 | CARRIER B COMPLETE | 1 | Not available in store | |||
| 025 | 265493-0 | HEX. SOCKET HEAD BOLT M4X20 | 2 | €0.42 | 1-4 weeks to ship | |
| 026 | 251306-1 | + PAN HEAD SCREW M5 | 1 | €2.09 | 1-4 weeks to ship | |
| 027 | 941152-7 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | TORSION SPRING 6 | 1 | Not available in store | |||
| 029 | CHANGE GUIDE | 1 | Not available in store | |||
| 030 | CHANGE RING | 1 | Not available in store | |||
| 031 | SPUR GEAR 10 | 1 | Not available in store | |||
| 032 | 265491-4 | H.S. BUTTON HEAD BOLT M5X16 | 4 | €0.14 | 1-4 weeks to ship | |
| 033 | RETAINER PLATE | 1 | Not available in store | |||
| 034 | CAM | 1 | Not available in store | |||
| 035 | INTERNAL GEAR 38 | 1 | Not available in store | |||
| 036 | SPUR GEAR 14 | 3 | Not available in store | |||
| 037 | NEEDLE CAGE 6910 | 3 | Not available in store | |||
| 038 | CARRIER A COMPLETE | 1 | Not available in store | |||
| 039 | 911373-5 | PAN HEAD SCREW M6X50 | 4 | €0.70 | 1-4 weeks to ship | |
| 041 | 213265-7 | O RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 417670-2 | CHANGE LEVER | 1 | €4.17 | 1-4 weeks to ship | |
| 043 | 233279-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 417298-6 | LOCK BUTTON | 1 | €1.11 | 1-4 weeks to ship | |
| 045 | GEAR CASE COMPLETE | 1 | Not available in store | |||
| 046 | 211236-8 | BALL BEARING 6002DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 047 | 253853-8 | FLAT WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 417664-7 | BAFFLE PLATE | 1 | €4.87 | 1-4 weeks to ship | |
| 050 | 516858-2 | ARMATURE ASS'Y 220-240V | 1 | €158.63 | 1-4 weeks to ship | |
| 051 | 681649-1 | INSULATION WASHER | 1 | €0.83 | 1-4 weeks to ship | |
| 052 | 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 053 | 265999-8 | TAPPING SCREW 4X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 054 | HANDLE SET | 1 | Not available in store | |||
| 055 | 819063-3 | MAKITA LABEL | 2 | €0.56 | 1-4 weeks to ship | |
| 056 | MOTOR HOUSING | 1 | Not available in store | |||
| 057 | 231402-1 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 058 | LOCK BUTTON | 1 | Not available in store | |||
| 059 | F/R CHANGE LEVER | 1 | Not available in store | |||
| 060 | 654532-5 | TERMINAL BLOCK 1P | 1 | €1.11 | 1-4 weeks to ship | |
| 061 | 650502-2 | SWITCH SGE110CR10 | 1 | €25.05 | 1-4 weeks to ship | |
| 062 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 063 | 687052-4 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | 665865-3 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €16.70 | 1-4 weeks to ship | |
| 065 | 682564-2 | CORD GUARD | 1 | €1.39 | 1-4 weeks to ship | |
| 066 | HANDLE SET | 1 | Not available in store | |||
| 069 | NAME PLATE DA4031 | 1 | Not available in store | |||
| 070 | 639516-4 | FIELD 220-240V | 1 | €44.53 | 1-4 weeks to ship | |
| 071 | 266056-5 | TAPPING SCREW 5X45 | 2 | €0.83 | 1-4 weeks to ship | |
| 072 | HEX. SOCKET HEAD BOLT M6X25 | 1 | Not available in store | |||
| 073 | 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 074 | DRILL CHUCK S-13 | 1 | Not available in store | |||
| 075 | BEARING RETAINER 29-42 | 1 | Not available in store | |||
| 076 | SPINDLE | 1 | Not available in store | |||
| 077 | 254032-1 | WOODRUFF KEY 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 078 | 211278-2 | BALL BEARING 6203DDW | 1 | €11.13 | 1-4 weeks to ship | |
| 079 | SLEEVE 17 | 1 | Not available in store | |||
| 080 | 942402-3 | SPRING WASHER 16 | 1 | €2.09 | 1-4 weeks to ship | |
| 083 | 213709-7 | O RING 63 | 1 | €1.11 | 1-4 weeks to ship | |
| 084 | 253215-0 | FLAT WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | |
| 085 | 253771-0 | FLAT WASHER 16 | 1 | €0.70 | 1-4 weeks to ship | |
