DA4000LR
DA4000LR

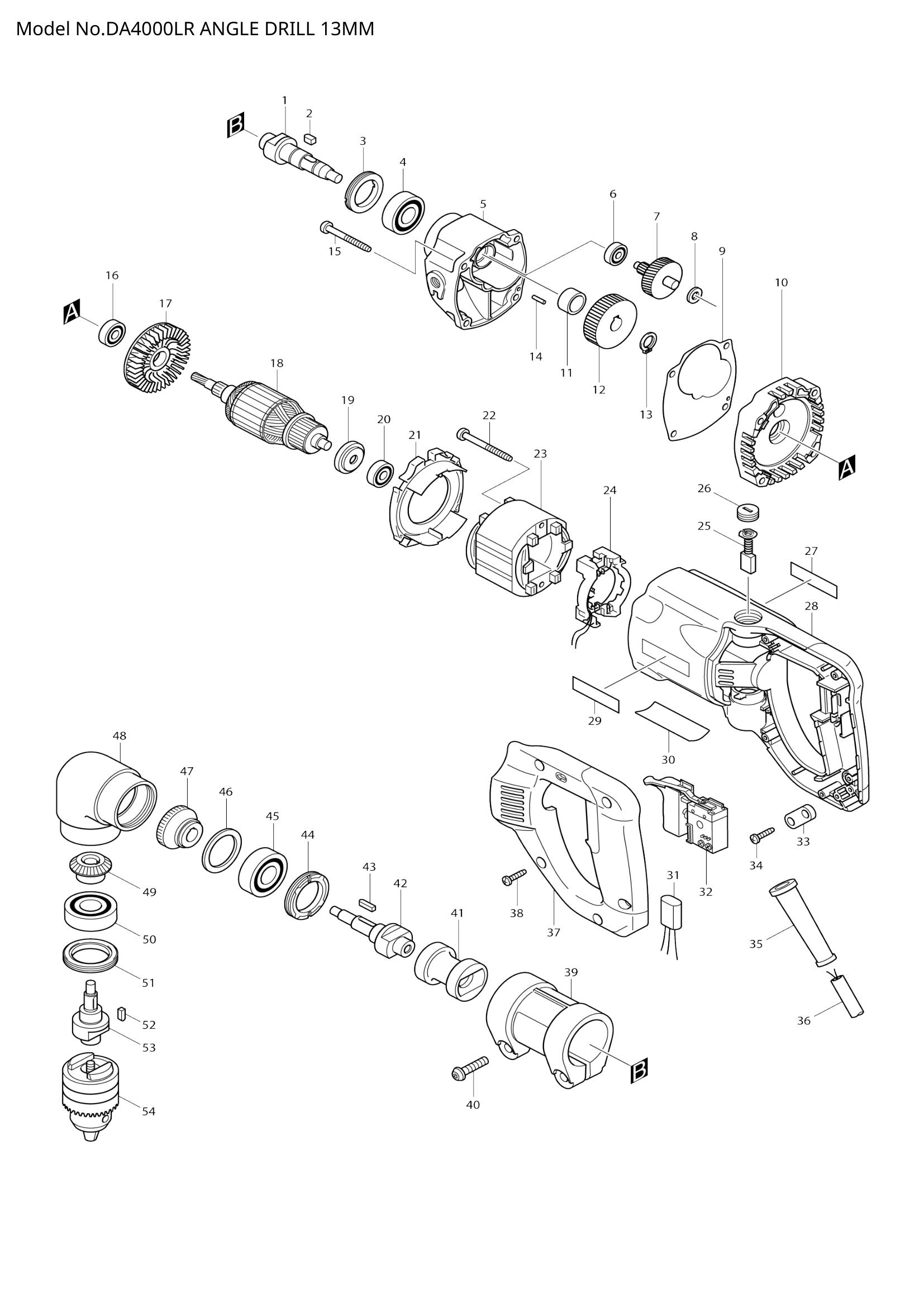

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | SPINDLE | 1 | Not available in store | |||
| 002 | 254211-1 | KEY 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 003 | 285808-5 | BEARING RETAINER 25-36 | 1 | €2.78 | 1-4 weeks to ship | |
| 004 | 211206-7 | BALL BEARING 6202LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 005 | GEAR HOUSING | 1 | Not available in store | |||
| 006 | 211016-2 | BALL BEARING 626LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 007 | GEAR COMPLETE 7-41 | 1 | Not available in store | |||
| 008 | 253133-2 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | GASKET | 1 | Not available in store | |||
| 010 | GEAR HOUSING COVER COMPLE | 1 | Not available in store | |||
| 011 | SLEEVE 15 | 1 | Not available in store | |||
| 012 | HELICAL GEAR 41 | 1 | Not available in store | |||
| 013 | 961055-9 | RETAINING RING S-15 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | PIN 3 | 1 | Not available in store | |||
| 015 | 266056-5 | TAPPING SCREW 5X45 | 4 | €0.83 | 1-4 weeks to ship | |
| 016 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 017 | 241850-6 | FAN 60 | 1 | €4.45 | 1-4 weeks to ship | |
| 018 | ARMATURE ASS'Y 220-240V | 1 | Not available in store | |||
| 019 | 681651-4 | INSULATION WASHER | 1 | €2.78 | 1-4 weeks to ship | |
| 020 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 021 | BAFFLE PLATE | 1 | Not available in store | |||
| 022 | 266046-8 | TAPPING SCREW 5X50 | 2 | €1.11 | 1-4 weeks to ship | |
| 023 | FIELD 220-240V | 1 | Not available in store | |||
| 024 | SUPPORT COMPLETE | 1 | Not available in store | |||
| 027 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | MOTOR HOUSING | 1 | Not available in store | |||
| 029 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | NAME PLATE DA4000LR | 1 | Not available in store | |||
| 031 | 645253-0 | NOISE SUPPRESSOR | 1 | €1.11 | 1-4 weeks to ship | |
| 645253-0 | NOISE SUPPRESSOR | 1 | €1.11 | 1-4 weeks to ship | ||
| 032 | SWITCH TG813TLA-1 | 1 | Not available in store | |||
| 033 | 687052-4 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 036 | 665865-3 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €16.70 | 1-4 weeks to ship | |
| 037 | HANDLE COVER | 1 | Not available in store | |||
| 038 | 265995-6 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 039 | JOINT COMPLETE | 1 | Not available in store | |||
| 040 | HEX.SOCKET BUTTON BOLT M8X | 2 | Not available in store | |||
| 041 | SOCKET | 1 | Not available in store | |||
| 042 | GEAR SHAFT L | 1 | Not available in store | |||
| 043 | KEY 4 | 1 | Not available in store | |||
| 044 | BEARING RETAINER 29-42 | 1 | Not available in store | |||
| 045 | 211278-2 | BALL BEARING 6203DDW | 1 | €11.13 | 1-4 weeks to ship | |
| 046 | 253854-6 | FLAT WASHER 30 | 1 | €6.54 | 1-4 weeks to ship | |
| 047 | ZEROL BEVEL GEAR 19 | 1 | Not available in store | |||
| 048 | ANGLE HOUSING COMPLETE | 1 | Not available in store | |||
| 049 | ZEROL BEVEL GEAR 13 | 1 | Not available in store | |||
| 050 | 211278-2 | BALL BEARING 6203DDW | 1 | €11.13 | 1-4 weeks to ship | |
| 051 | BEARING RETAINER 29-42 | 1 | Not available in store | |||
| 052 | 254219-5 | KEY 4 | 1 | €0.83 | 1-4 weeks to ship | |
| 053 | GEAR SHAFT H | 1 | Not available in store | |||
| 054 | DRILL CHUCK S-13 | 1 | Not available in store | |||
