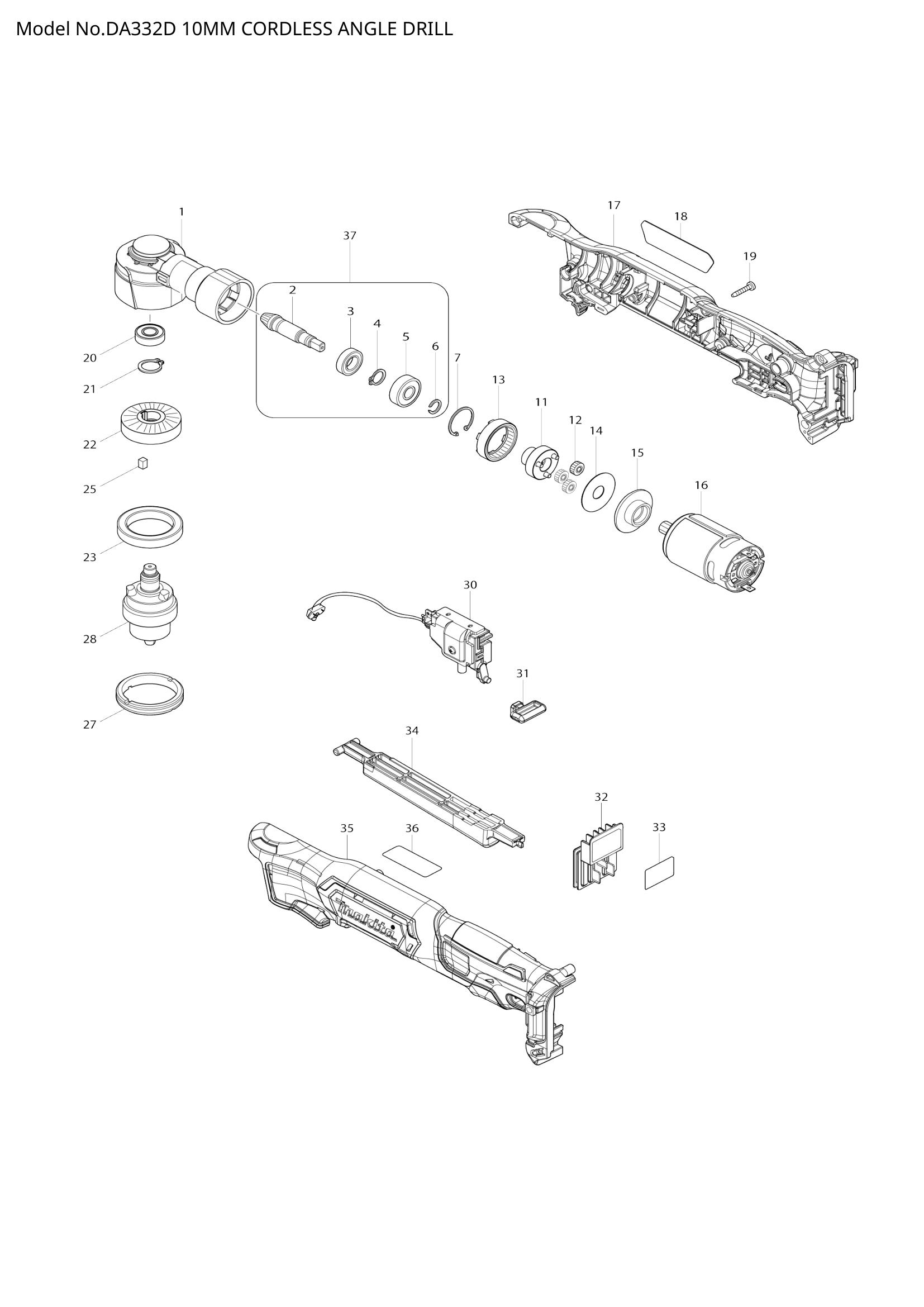

DA332D
DA332D
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 319634-1 | GEAR HOUSING | 1 | €66.29 | 1-4 weeks to ship | |
| 003 | 210171-7 | BALL BEARING 6800ZZ | 1 | €8.85 | 1-4 weeks to ship | |
| 004 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 006 | 961034-7 | RETAINING RING | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 962102-9 | RETAINING RING R-22 | 1 | €0.28 | 1-4 weeks to ship | |
| 011 | 144701-1 | CARRIER COMPLETE | 1 | €8.72 | 1-4 weeks to ship | |
| 012 | 221572-4 | SPUR GEAR 17 | 3 | €1.68 | 1-4 weeks to ship | |
| 013 | 221569-3 | INTERNAL GEAR 48 | 1 | €14.33 | 1-4 weeks to ship | |
| 014 | 253396-0 | FLAT WASHER 10 | 1 | €2.53 | 1-4 weeks to ship | |
| 015 | 457972-4 | MOTOR BRACKET | 1 | €4.55 | 1-4 weeks to ship | |
| 457972-4 | MOTOR BRACKET | 1 | €4.55 | 1-4 weeks to ship | ||
| 016 | DC MOTOR | 1 | Not available in store | |||
| 017 | 183H38-9 | HOUSING SET | 1 | €55.91 | 1-4 weeks to ship | |
| 018 | DA332D NAME PLATE | 1 | Not available in store | |||
| 019 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 9 | €0.56 | 1-4 weeks to ship | |
| 020 | 211166-3 | BALL BEARING 698DDW | 1 | €1.39 | 1-4 weeks to ship | |
| 021 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 227601-1 | SPIRAL BEVEL GEAR 31 | 1 | €9.88 | 1-4 weeks to ship | |
| 023 | 211423-9 | BALL BEARING 6806DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 025 | 254201-4 | KEY 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 285842-5 | BEARING RETAINER 36-43 | 1 | €4.17 | 1-4 weeks to ship | |
| 028 | 763245-8 | DRILL CHUCK S10 | 1 | €123.72 | 1-4 weeks to ship | |
| 763245-8 | DRILL CHUCK S10 | 1 | €123.72 | 1-4 weeks to ship | ||
| 030 | 651097-8 | SWITCH C3HW-3A-PLF5MS-W | 1 | €141.43 | 1-4 weeks to ship | |
| 651097-8 | SWITCH C3HW-3A-PLF5MS-W | 1 | €141.43 | 1-4 weeks to ship | ||
| 031 | 450126-2 | FR CHANGE LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 032 | 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | |
| 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | ||
| 033 | DA332D SERIAL NO. LABEL | 1 | Not available in store | |||
| 034 | 457973-2 | SWITCH LEVER | 1 | €7.08 | 1-4 weeks to ship | |
| 457973-2 | SWITCH LEVER | 1 | €7.08 | 1-4 weeks to ship | ||
| 035 | 183H38-9 | HOUSING SET | 1 | €55.91 | 1-4 weeks to ship | |
