DA331D
DA331D

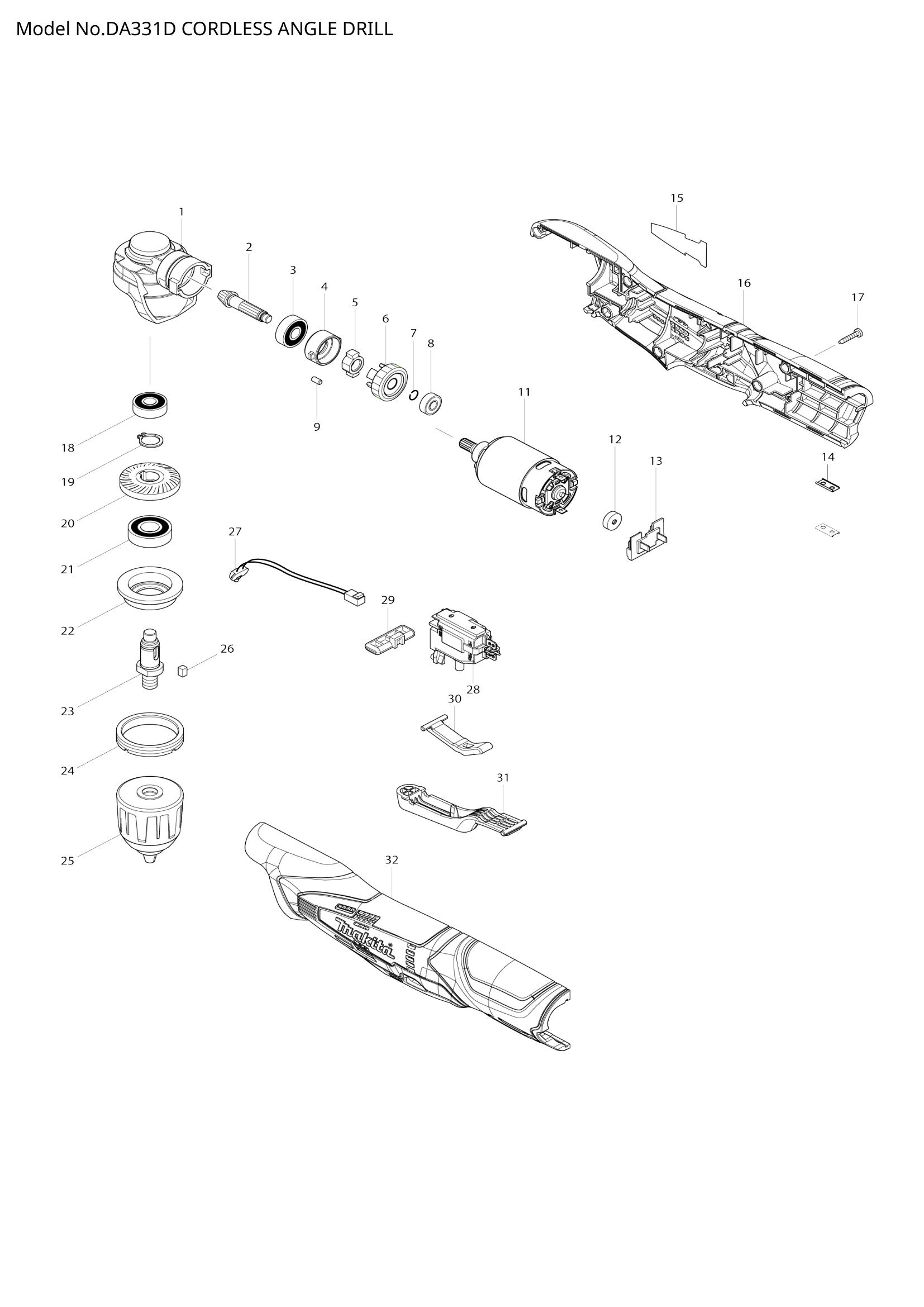

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 318934-6 | GEAR HOUSING | 1 | €9.32 | 1-4 weeks to ship | |
| 002 | 227602-9 | SPIRAL BEVEL GEAR 6 | 1 | €6.82 | 1-4 weeks to ship | |
| 003 | 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 004 | 324930-4 | LOCK RING | 1 | €4.04 | 1-4 weeks to ship | |
| 005 | 331647-2 | LOCK CAM | 1 | €2.09 | 1-4 weeks to ship | |
| 007 | 231956-8 | RING SPRING 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 008 | 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 009 | 268100-4 | PIN 3.5 | 2 | €0.14 | 1-4 weeks to ship | |
| 012 | 424529-6 | CAP | 1 | €0.28 | 1-4 weeks to ship | |
| 013 | 643830-2 | TERMINAL | 1 | €1.11 | 1-4 weeks to ship | |
| 014 | 345998-7 | SET PLATE | 2 | €0.56 | 1-4 weeks to ship | |
| 015 | DA331D NAME PLATE | 1 | Not available in store | |||
| 016 | 187529-4 | HOUSING SET | 1 | €15.31 | 1-4 weeks to ship | |
| 017 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 7 | €0.56 | 1-4 weeks to ship | |
| 018 | 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 019 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 227603-7 | SPIRAL BEVEL GEAR 31 | 1 | €5.71 | 1-4 weeks to ship | |
| 021 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 022 | 317633-7 | BEARING BOX | 1 | €7.65 | 1-4 weeks to ship | |
| 023 | 326215-4 | SPINDLE | 1 | €3.06 | 1-4 weeks to ship | |
| 024 | 285842-5 | BEARING RETAINER 36-43 | 1 | €4.17 | 1-4 weeks to ship | |
| 025 | KEYLESS DRILL CHUCK 10 | 1 | Not available in store | |||
| 026 | 254201-4 | KEY 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 620177-1 | LED CIRCUIT | 1 | €5.43 | 1-4 weeks to ship | |
| 620177-1 | LED CIRCUIT | 1 | €5.43 | 1-4 weeks to ship | ||
| 028 | 650666-2 | SWITCH C3HW-3A-PEM | 1 | €32.70 | 1-4 weeks to ship | |
| 029 | 450610-7 | F/R CHANGE LEVER | 1 | €1.67 | 1-4 weeks to ship | |
| 030 | 454100-2 | LINK | 1 | €0.42 | 1-4 weeks to ship | |
| 454100-2 | LINK | 1 | €0.42 | 1-4 weeks to ship | ||
| 031 | 454102-8 | SWITCH LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 454102-8 | SWITCH LEVER | 1 | €0.83 | 1-4 weeks to ship | ||
| 032 | 187529-4 | HOUSING SET | 1 | €15.31 | 1-4 weeks to ship | |
