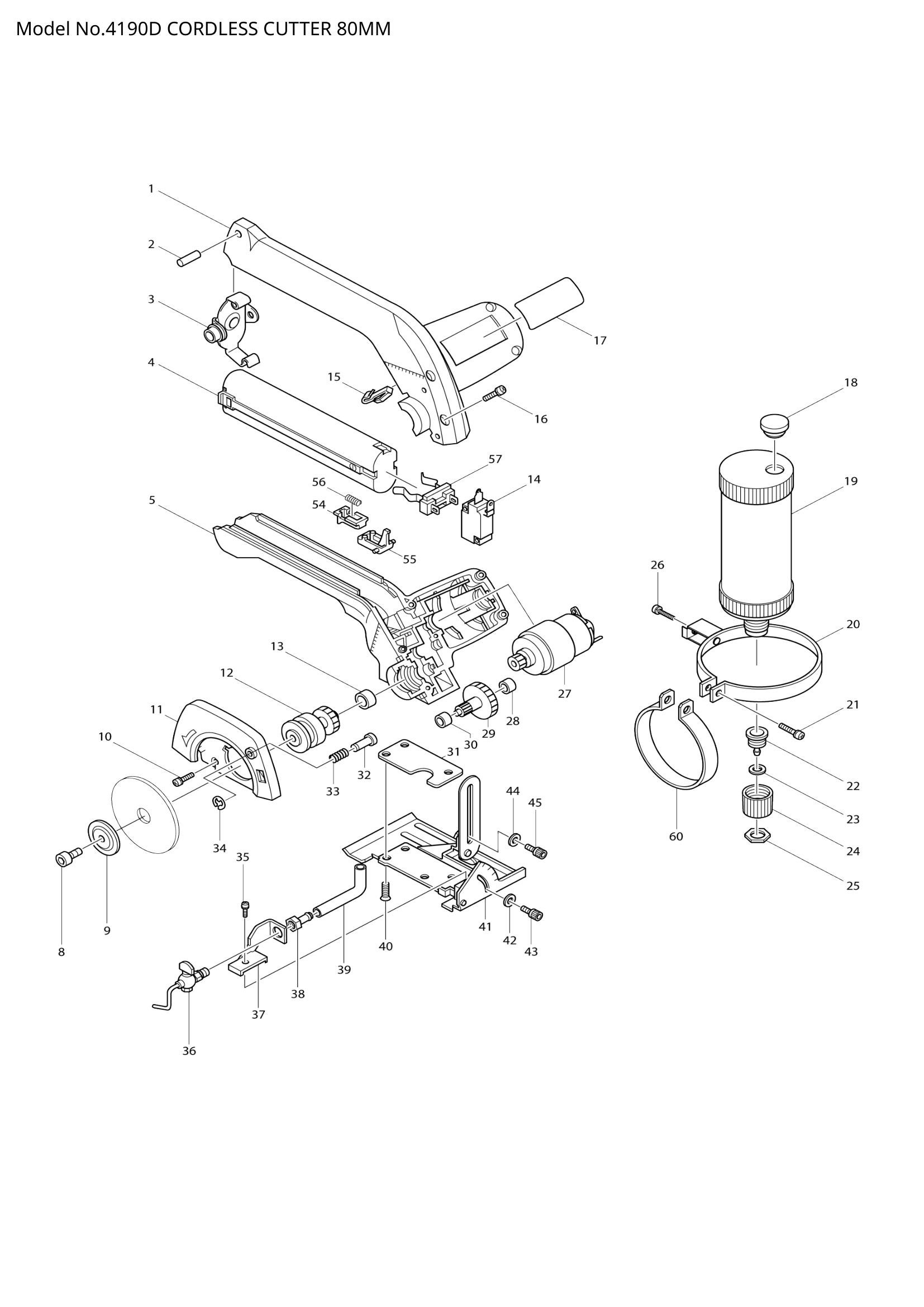

4190D
4190D
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 004 | BATTERY 9034 SET | 1 | Not available in store | |||
| 008 | 922212-4 | HEX. SOCKET HEAD BOLT M5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 224177-9 | OUTER FLANGE 28 | 1 | €2.78 | 1-4 weeks to ship | |
| 010 | 911121-2 | PAN HEAD SCREW M4X14 | 3 | €0.83 | 1-4 weeks to ship | |
| 012 | 153132-3 | GEAR COMPLETE | 1 | €33.40 | 1-4 weeks to ship | |
| 013 | 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 232061-4 | LEAF SPRING | 1 | €1.11 | 1-4 weeks to ship | |
| 016 | 911148-2 | PAN HEAD SCREW M4X25 | 5 | €0.56 | 1-4 weeks to ship | |
| 017 | 856034-9 | NAME PLATE 4190D | 1 | €2.78 | 1-4 weeks to ship | |
| 020 | 163159-5 | TANK HOLDER | 1 | €19.48 | 1-4 weeks to ship | |
| 021 | 911146-6 | PAN HEAD SCREW M4X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 321512-3 | METALLIC CAP | 1 | €2.78 | 1-4 weeks to ship | |
| 023 | 261056-0 | RUBBER WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | 411988-3 | CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 252064-2 | HEX. NUT M12-14 | 1 | €1.11 | 1-4 weeks to ship | |
| 026 | 911146-6 | PAN HEAD SCREW M4X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 214019-5 | PLANE BEARING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 226053-3 | GEAR COMPLETE 11-67 | 1 | €19.48 | 1-4 weeks to ship | |
| 030 | 214019-5 | PLANE BEARING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | 423070-6 | PACKING | 1 | €2.92 | 1-4 weeks to ship | |
| 032 | 256625-0 | PIN 5 | 1 | €2.92 | 1-4 weeks to ship | |
| 033 | 231098-8 | COMPRESSION SPRING 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 034 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 911101-8 | PAN HEAD SCREW M4X6 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | 168189-1 | COCK | 1 | €25.05 | 1-4 weeks to ship | |
| 037 | 343517-3 | COCK HOLDER | 1 | €4.45 | 1-4 weeks to ship | |
| 038 | 323601-0 | NUT | 1 | €4.17 | 1-4 weeks to ship | |
| 039 | 412079-3 | VINYL TUBE 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 912222-9 | COUNTERSUNK HEAD SCREW M5 | 3 | €0.56 | 1-4 weeks to ship | |
| 042 | 253184-5 | FLAT WASHER 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 043 | 922206-9 | HEX. SOCKET HEAD BOLT M5X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 253184-5 | FLAT WASHER 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 045 | 922206-9 | HEX. SOCKET HEAD BOLT M5X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | LOCK-OFF LEVER | 1 | Not available in store | |||
| 055 | SWITCH LEVER | 1 | Not available in store | |||
| 056 | COMPRESSION SPRING 3 | 1 | Not available in store | |||
| 057 | 643909-9 | BATTERY HOLDER | 1 | €1.39 | 1-4 weeks to ship | |
| 643909-9 | BATTERY HOLDER | 1 | €1.39 | 1-4 weeks to ship | ||
| 060 | 343530-1 | BAND B | 1 | €13.92 | 1-4 weeks to ship | |
| 400 | HEX. WRENCH 4 | 1 | Not available in store | |||
| 402 | 414938-7 | BATTERY COVER | 1 | €2.09 | 1-4 weeks to ship | |
