DA302D
DA302D

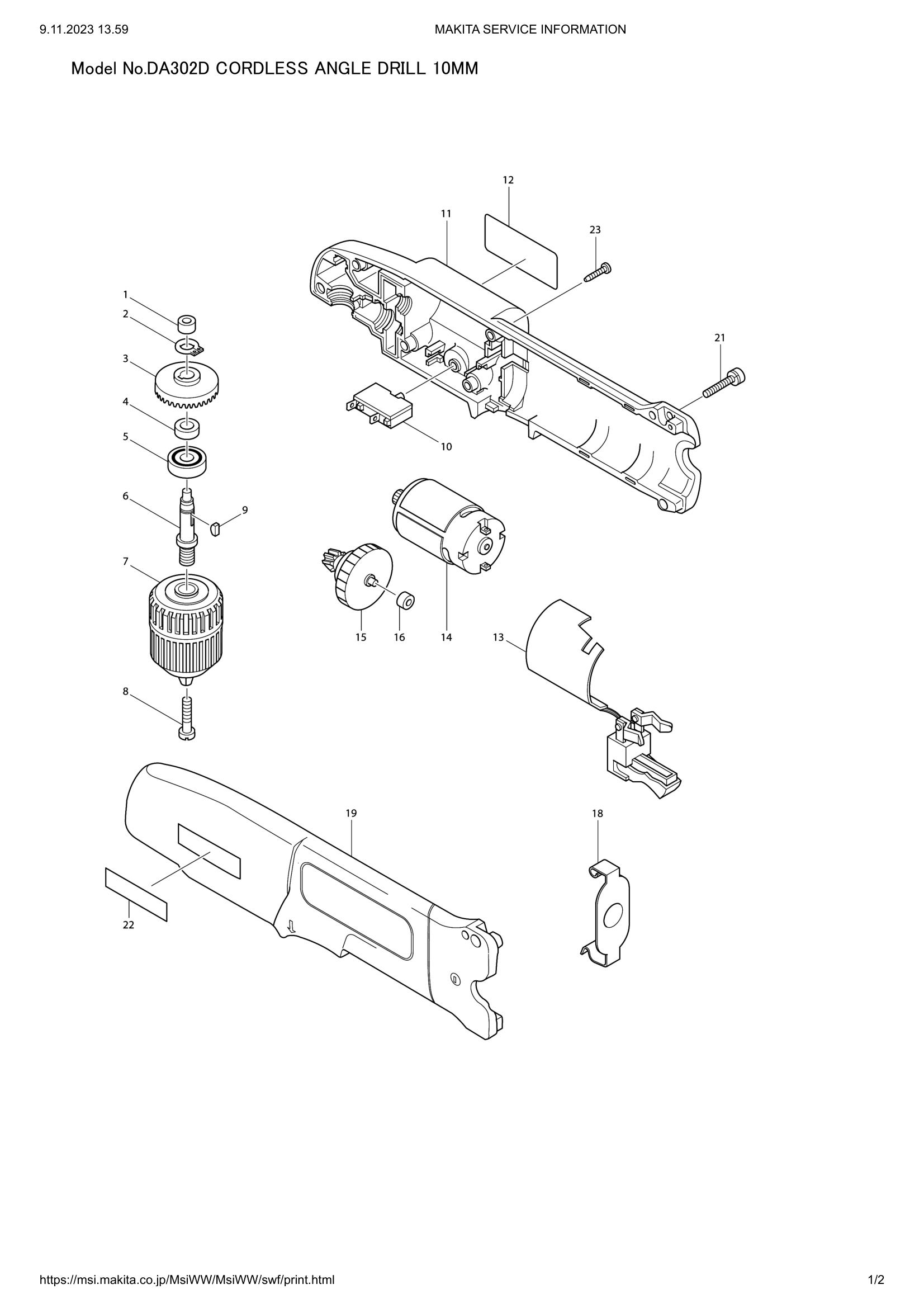

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 002 | 961004-6 | RETAINING RING S-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 221387-9 | SPIRAL BEVEL GEAR 36 | 1 | €22.26 | 1-4 weeks to ship | |
| 004 | 257106-7 | RING 8 | 1 | €1.11 | 1-4 weeks to ship | |
| 005 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 006 | 322278-8 | SPINDLE | 1 | €16.70 | 1-4 weeks to ship | |
| 007 | KEYLESS DRILL CHUCK 10 | 1 | Not available in store | |||
| 009 | 254031-3 | WOODRUFF KEY 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 652532-9 | OVER CURRENT RELAY BC51 | 1 | €8.35 | 1-4 weeks to ship | |
| 011 | 183330-5 | HOUSING SET | 1 | €40.08 | 1-4 weeks to ship | |
| 012 | 852740-4 | NAME PLATE DA302D | 1 | €2.09 | 1-4 weeks to ship | |
| 013 | 651914-2 | SWITCH TG55A | 1 | €47.31 | 1-4 weeks to ship | |
| 014 | 629767-7 | DC MOTOR | 1 | €19.76 | 1-4 weeks to ship | |
| 015 | 153193-3 | GEAR COMPLETE | 1 | €30.61 | 1-4 weeks to ship | |
| 016 | 214019-5 | PLANE BEARING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | SET PLATE | 1 | Not available in store | |||
| 019 | 183330-5 | HOUSING SET | 1 | €40.08 | 1-4 weeks to ship | |
| 021 | 911143-2 | PAN HEAD SCREW M4X22 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
