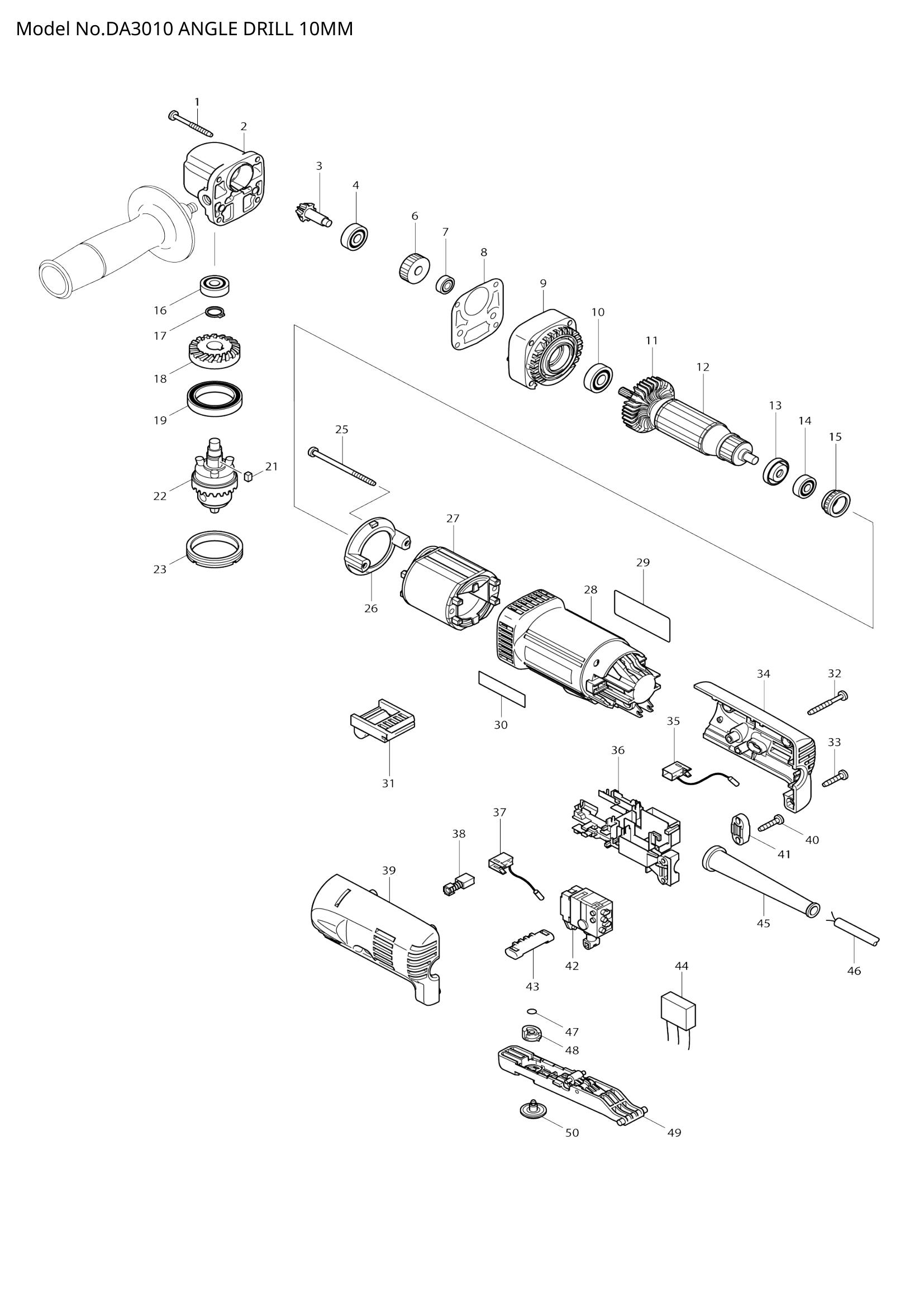

DA3010
DA3010
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266048-4 | TAPPING SCREW 4X40 | 4 | €0.56 | 1-4 weeks to ship | |
| 266048-4 | TAPPING SCREW 4X40 | 4 | €0.56 | 1-4 weeks to ship | ||
| 003 | 227436-0 | SPIRAL BEVEL GEAR 9 | 1 | €13.92 | 1-4 weeks to ship | |
| 227436-0 | SPIRAL BEVEL GEAR 9 | 1 | €13.92 | 1-4 weeks to ship | ||
| 006 | 226567-2 | HELICAL GEAR 28 | 1 | €11.13 | 1-4 weeks to ship | |
| 226567-2 | HELICAL GEAR 28 | 1 | €11.13 | 1-4 weeks to ship | ||
| 007 | 210026-6 | BALL BEARING 696ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 210026-6 | BALL BEARING 696ZZ | 1 | €4.17 | 1-4 weeks to ship | ||
| 008 | 418036-9 | GASKET | 1 | €2.78 | 1-4 weeks to ship | |
| 418036-9 | GASKET | 1 | €2.78 | 1-4 weeks to ship | ||
| 009 | 418042-4 | GEAR HOUSING COVER | 1 | €5.57 | 1-4 weeks to ship | |
| 418042-4 | GEAR HOUSING COVER | 1 | €5.57 | 1-4 weeks to ship | ||
| 010 | 211051-0 | BALL BEARING 609LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 211051-0 | BALL BEARING 609LLB | 1 | €5.57 | 1-4 weeks to ship | ||
| 011 | 240061-0 | FAN 48 | 1 | €2.78 | 1-4 weeks to ship | |
| 240061-0 | FAN 48 | 1 | €2.78 | 1-4 weeks to ship | ||
| 012 | 517583-8 | ARMATURE ASS'Y 220-240V | 1 | €55.66 | 1-4 weeks to ship | |
| 517583-8 | ARMATURE ASS'Y 220-240V | 1 | €55.66 | 1-4 weeks to ship | ||
| 013 | 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 014 | 211021-9 | BALL BEARING 607LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 211021-9 | BALL BEARING 607LLB | 1 | €5.57 | 1-4 weeks to ship | ||
| 015 | 421494-0 | RUBBER RING 19 | 1 | €4.17 | 1-4 weeks to ship | |
| 421494-0 | RUBBER RING 19 | 1 | €4.17 | 1-4 weeks to ship | ||
| 017 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 018 | 227437-8 | SPIRAL BEVEL GEAR 26 | 1 | €25.05 | 1-4 weeks to ship | |
| 227437-8 | SPIRAL BEVEL GEAR 26 | 1 | €25.05 | 1-4 weeks to ship | ||
| 021 | 254201-4 | KEY 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 254201-4 | KEY 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | DRILL CHUCK S10 | 1 | Not available in store | |||
| DRILL CHUCK S10 | 1 | Not available in store | ||||
| 023 | 285842-5 | BEARING RETAINER 36-43 | 1 | €4.17 | 1-4 weeks to ship | |
| 285842-5 | BEARING RETAINER 36-43 | 1 | €4.17 | 1-4 weeks to ship | ||
| 025 | 266315-7 | TAPPING SCREW MT 4X65 | 2 | €0.56 | 1-4 weeks to ship | |
| 266315-7 | TAPPING SCREW MT 4X65 | 2 | €0.56 | 1-4 weeks to ship | ||
| 026 | 418033-5 | BAFFLE PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| 418033-5 | BAFFLE PLATE | 1 | €1.67 | 1-4 weeks to ship | ||
| 027 | 635078-0 | FIELD | 1 | €16.70 | 1-4 weeks to ship | |
| 635078-0 | FIELD | 1 | €16.70 | 1-4 weeks to ship | ||
| 028 | 183560-8 | MOTOR HOUSING | 1 | €17.53 | 1-4 weeks to ship | |
| 183560-8 | MOTOR HOUSING | 1 | €17.53 | 1-4 weeks to ship | ||
| 029 | NAME PLATE DA3010 | 1 | Not available in store | |||
| NAME PLATE DA3010 | 1 | Not available in store | ||||
| 030 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
| 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | ||
| 031 | COVER | 1 | Not available in store | |||
| COVER | 1 | Not available in store | ||||
| 032 | 266053-1 | TAPPING SCREW 4X35 | 1 | €0.56 | 1-4 weeks to ship | |
| 266053-1 | TAPPING SCREW 4X35 | 1 | €0.56 | 1-4 weeks to ship | ||
| 033 | 265995-6 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | ||
| 034 | REAR COVER SET | 1 | Not available in store | |||
| REAR COVER SET | 1 | Not available in store | ||||
| 035 | 643801-9 | BRUSH HOLDER | 1 | €8.35 | 1-4 weeks to ship | |
| 643801-9 | BRUSH HOLDER | 1 | €8.35 | 1-4 weeks to ship | ||
| 036 | 687139-2 | SUPPORT | 1 | €2.78 | 1-4 weeks to ship | |
| 687139-2 | SUPPORT | 1 | €2.78 | 1-4 weeks to ship | ||
| 037 | 643801-9 | BRUSH HOLDER | 1 | €8.35 | 1-4 weeks to ship | |
| 643801-9 | BRUSH HOLDER | 1 | €8.35 | 1-4 weeks to ship | ||
| 039 | REAR COVER SET | 1 | Not available in store | |||
| REAR COVER SET | 1 | Not available in store | ||||
| 040 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 041 | 687052-4 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687052-4 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 042 | 650539-9 | SWITCH TG803BSA-1 | 1 | €33.40 | 1-4 weeks to ship | |
| 650539-9 | SWITCH TG803BSA-1 | 1 | €33.40 | 1-4 weeks to ship | ||
| 043 | 418038-5 | F/R CHANGE LEVER | 1 | €1.39 | 1-4 weeks to ship | |
| 418038-5 | F/R CHANGE LEVER | 1 | €1.39 | 1-4 weeks to ship | ||
| 044 | 645253-0 | NOISE SUPPRESSOR | 1 | €1.11 | 1-4 weeks to ship | |
| 645253-0 | NOISE SUPPRESSOR | 1 | €1.11 | 1-4 weeks to ship | ||
| 645253-0 | NOISE SUPPRESSOR | 1 | €1.11 | 1-4 weeks to ship | ||
| 645253-0 | NOISE SUPPRESSOR | 1 | €1.11 | 1-4 weeks to ship | ||
| 045 | 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 046 | 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | |
| 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | ||
| 047 | 213034-6 | O RING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 213034-6 | O RING 3 | 1 | €0.56 | 1-4 weeks to ship | ||
| 048 | 418040-8 | CAM | 1 | €1.11 | 1-4 weeks to ship | |
| 418040-8 | CAM | 1 | €1.11 | 1-4 weeks to ship | ||
| 049 | 153477-9 | SWITCH LEVER COMPLETE | 1 | €8.35 | 1-4 weeks to ship | |
| 153477-9 | SWITCH LEVER COMPLETE | 1 | €8.35 | 1-4 weeks to ship | ||
| 050 | 418037-7 | SPEED CHANGE DIAL | 1 | €4.17 | 1-4 weeks to ship | |
| 418037-7 | SPEED CHANGE DIAL | 1 | €4.17 | 1-4 weeks to ship | ||
