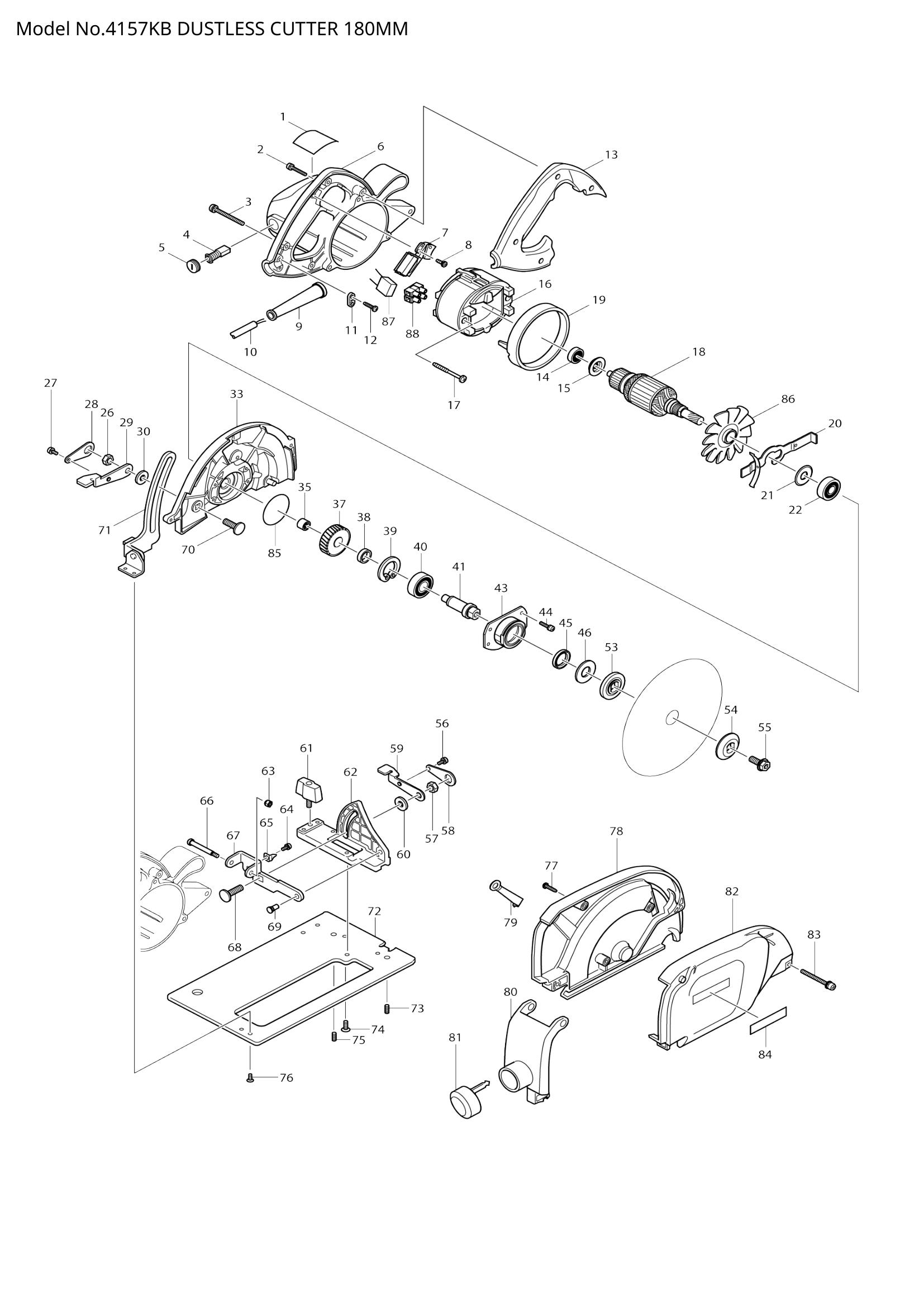

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 911148-2 | PAN HEAD SCREW M4X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 003 | 911273-9 | PAN HEAD SCREW M5X50 | 3 | €0.56 | 1-4 weeks to ship | |
| 911273-9 | PAN HEAD SCREW M5X50 | 3 | €0.56 | 1-4 weeks to ship | ||
| 008 | 266020-6 | TAPPING SCREW 4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 013 | HANDLE COVER | 1 | Not available in store | |||
| 014 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 015 | 681625-5 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 266046-8 | TAPPING SCREW 5X50 | 2 | €1.11 | 1-4 weeks to ship | |
| 018 | ARMATURE ASS'Y 220V | 1 | Not available in store | |||
| 019 | FAN GUIDE | 1 | Not available in store | |||
| 020 | 163113-9 | SPINDLE LOCK | 1 | €5.01 | 1-4 weeks to ship | |
| 021 | 213102-5 | DUST SEAL 12 | 1 | €1.39 | 1-4 weeks to ship | |
| 022 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 026 | 931402-8 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | |
| 931402-8 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 027 | 911106-8 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 911106-8 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 028 | 341415-5 | LOCK PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 029 | 341416-3 | LEVER PLATE | 1 | €2.92 | 1-4 weeks to ship | |
| 035 | 212052-1 | NEEDLE BEARING 1010 | 1 | €2.78 | 1-4 weeks to ship | |
| 037 | HELICAL GEAR 39 | 1 | Not available in store | |||
| 038 | 257064-7 | RING 15 | 1 | €2.78 | 1-4 weeks to ship | |
| 039 | 962153-2 | RETAINING RING R-35 | 1 | €0.83 | 1-4 weeks to ship | |
| 040 | 211228-7 | BALL BEARING 6202DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 043 | BEARING BOX | 1 | Not available in store | |||
| 044 | 911126-2 | PAN HEAD SCREW M4X16 | 4 | €0.83 | 1-4 weeks to ship | |
| 911126-2 | PAN HEAD SCREW M4X16 | 4 | €0.83 | 1-4 weeks to ship | ||
| 045 | OIL SEAL 20 | 1 | Not available in store | |||
| 046 | LABYRINTH RING | 1 | Not available in store | |||
| 053 | INNER FLANGE 40 | 1 | Not available in store | |||
| 054 | 224275-9 | OUTER FLANGE 40 | 1 | €2.78 | 1-4 weeks to ship | |
| 055 | 266283-4 | HEX. SOCKET HEX. BOLT M8X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | 911106-8 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 911106-8 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 057 | 931402-8 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | |
| 931402-8 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 058 | 341415-5 | LOCK PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 059 | 341416-3 | LEVER PLATE | 1 | €2.92 | 1-4 weeks to ship | |
| 061 | 251858-2 | DIAL SCREW M6X15 | 1 | €0.83 | 1-4 weeks to ship | |
| 062 | ANGULAR PLATE | 1 | Not available in store | |||
| 063 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 265075-8 | + PAN HEAD SCREW M5 | 1 | €0.83 | 1-4 weeks to ship | |
| 068 | CAP SQUARE NECK BOLT M8X28 | 1 | Not available in store | |||
| 070 | 265965-5 | CAP SQUARE NECK BOLT M8X24 | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | DEPTH GUIDE | 1 | Not available in store | |||
| 072 | BASE | 1 | Not available in store | |||
| 074 | 912212-2 | COUNTERSUNK HEAD SCREW M5 | 5 | €0.56 | 1-4 weeks to ship | |
| 912212-2 | COUNTERSUNK HEAD SCREW M5 | 5 | €0.56 | 1-4 weeks to ship | ||
| 076 | 265085-5 | + COUNTERSUNK HEAD SCREW | 2 | €0.56 | 1-4 weeks to ship | |
| 077 | 265995-6 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 079 | EARTH PLATE | 1 | Not available in store | |||
| 080 | DUST CAP COMPLETE | 1 | Not available in store | |||
| 081 | 421362-7 | CAP | 1 | €2.78 | 1-4 weeks to ship | |
| 084 | 819003-1 | MAKITA LABEL | 1 | €2.09 | 1-4 weeks to ship | |
| 819003-1 | MAKITA LABEL | 1 | €2.09 | 1-4 weeks to ship | ||
| 085 | 213621-1 | O RING 46 | 1 | €0.83 | 1-4 weeks to ship | |
| 086 | 241513-4 | FAN 92 | 1 | €4.45 | 1-4 weeks to ship | |
| 087 | 645200-1 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 089 | 961055-9 | RETAINING RING S-15 | 1 | €0.56 | 1-4 weeks to ship | |
