CP100D
CP100D

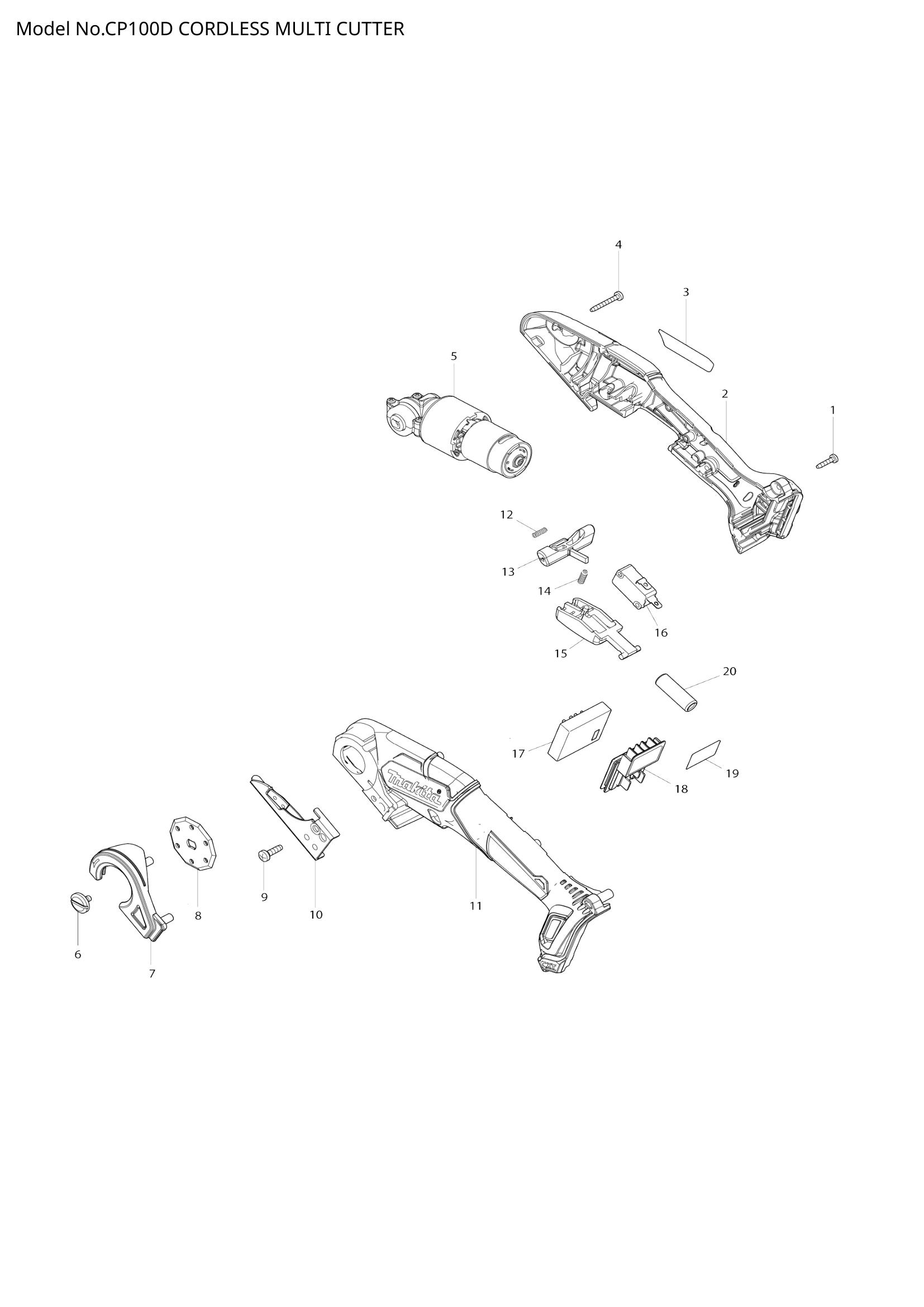

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266404-8 | TAPPING SCREW BIND 3X14 | 6 | €0.56 | 1-4 weeks to ship | |
| 002 | 183G66-8 | HOUSING SET | 1 | €14.81 | 1-4 weeks to ship | |
| 003 | CP100D NAME PLATE | 1 | Not available in store | |||
| 004 | 251574-6 | TAPPING SCREW BIND 3X24 | 2 | €0.04 | 1-4 weeks to ship | |
| 005 | 126614-8 | GEAR ASSEMBLY | 1 | €26.86 | 1-4 weeks to ship | |
| 006 | 251571-2 | - FLAT HEAD SCREW M4X8 | 1 | €1.14 | 1-4 weeks to ship | |
| 007 | 457828-1 | BLADE COVER | 1 | €3.24 | 1-4 weeks to ship | |
| 457828-1 | BLADE COVER | 1 | €3.24 | 1-4 weeks to ship | ||
| 009 | 266385-6 | TAPPING SCREW 4X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 183G66-8 | HOUSING SET | 1 | €14.81 | 1-4 weeks to ship | |
| 012 | 231469-9 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 457829-9 | LOCKOFF LEVER | 1 | €1.56 | 1-4 weeks to ship | |
| 457829-9 | LOCKOFF LEVER | 1 | €1.56 | 1-4 weeks to ship | ||
| 014 | 233438-6 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 457830-4 | SWITCH LEVER | 1 | €1.39 | 1-4 weeks to ship | |
| 457830-4 | SWITCH LEVER | 1 | €1.39 | 1-4 weeks to ship | ||
| 016 | 650744-8 | SWITCH D3V-16-3C26 | 1 | €2.09 | 1-4 weeks to ship | |
| 650744-8 | SWITCH D3V-16-3C26 | 1 | €2.09 | 1-4 weeks to ship | ||
| 017 | 620687-8 | CONTROLLER | 1 | €37.85 | 1-4 weeks to ship | |
| 620687-8 | CONTROLLER | 1 | €37.85 | 1-4 weeks to ship | ||
| 018 | 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | |
| 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | ||
| 019 | CP100D SERIAL NO. LABEL | 1 | Not available in store | |||
