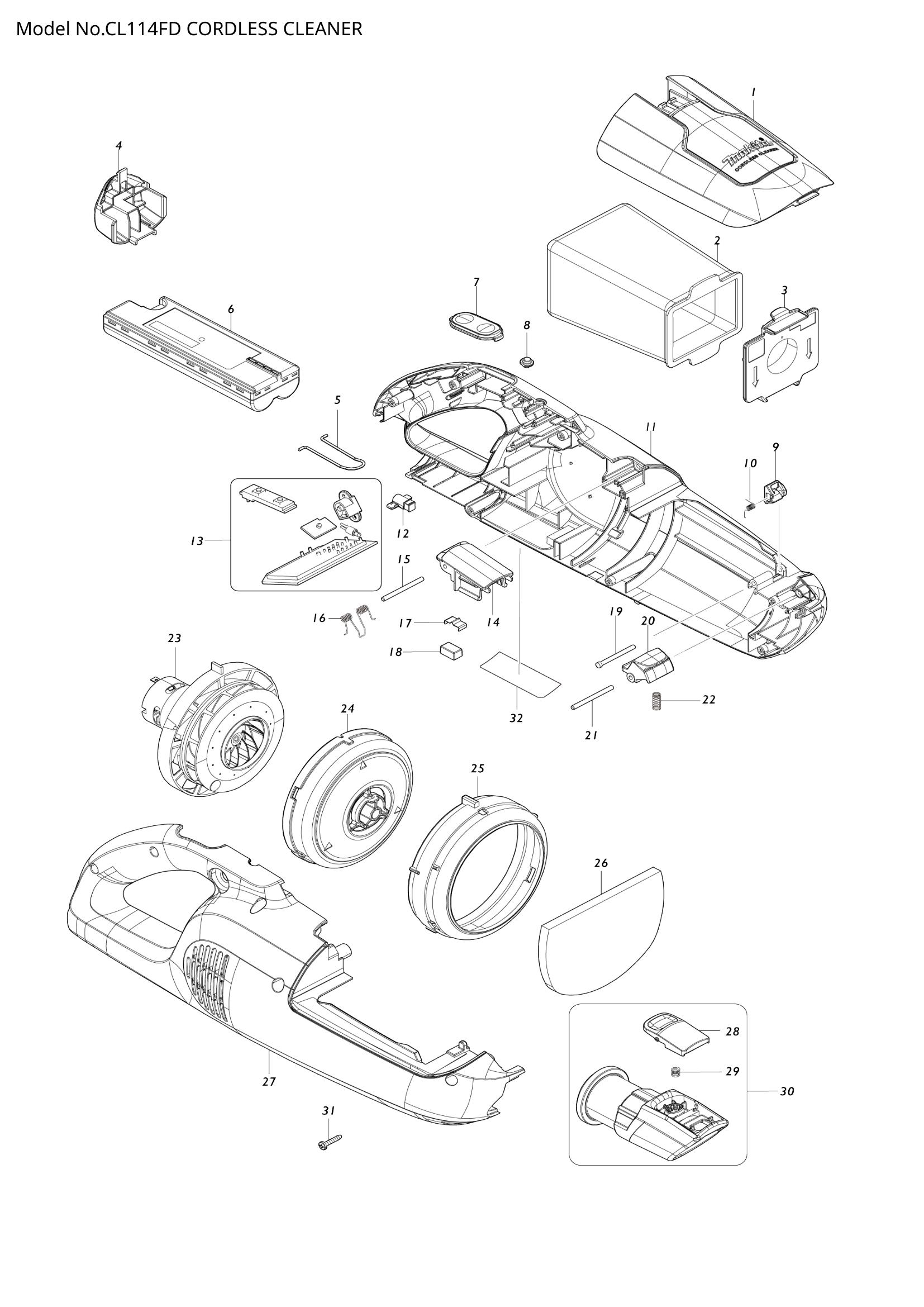

CL114FD
CL114FD
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | FRONT COVER COMPLETE | 1 | Not available in store | |||
| 002 | DUST BAG | 1 | Not available in store | |||
| 003 | VALVE STAY COMPLETE | 1 | Not available in store | |||
| 004 | COVER | 1 | Not available in store | |||
| 005 | 324885-3 | HANGER | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | BATTERY | 1 | Not available in store | |||
| 007 | SWITCH PLATE COMPLETE | 1 | Not available in store | |||
| 008 | 450522-4 | LENS | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | STOPPER PLATE | 1 | Not available in store | |||
| 010 | TORSION SPRING 4 | 1 | Not available in store | |||
| 011 | HOUSING SET | 1 | Not available in store | |||
| 012 | LENS CASE COMPLETE | 1 | Not available in store | |||
| 014 | FRONT COVER JOINT | 1 | Not available in store | |||
| 015 | 268271-7 | PIN 3 | 1 | €0.42 | 1-4 weeks to ship | |
| 016 | 233580-3 | TORSION SPRING 4 | 1 | €0.14 | 1-4 weeks to ship | |
| 017 | 232264-0 | LEAF SPRING | 1 | €0.14 | 1-4 weeks to ship | |
| 018 | 424367-6 | RUBBER | 1 | €0.28 | 1-4 weeks to ship | |
| 019 | FLAT FILLISTER HD. PIN 3 | 1 | Not available in store | |||
| 020 | BUTTON B | 1 | Not available in store | |||
| 021 | 268271-7 | PIN 3 | 1 | €0.42 | 1-4 weeks to ship | |
| 022 | 233344-5 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | MOTOR ASSEMBLY | 1 | Not available in store | |||
| 024 | FAN COVER | 1 | Not available in store | |||
| 025 | RUBBER RING | 1 | Not available in store | |||
| 026 | 424804-0 | SPONGE SHEET 76-110 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | HOUSING SET | 1 | Not available in store | |||
| 028 | BUTTON A | 1 | Not available in store | |||
| 029 | COMPRESSION SPRING 5 | 1 | Not available in store | |||
| 030 | INLET ASSY | 1 | Not available in store | |||
| 031 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | €0.56 | 1-4 weeks to ship | |
| 032 | CL114FD NAME PLATE | 1 | Not available in store | |||
