CL104D
CL104D

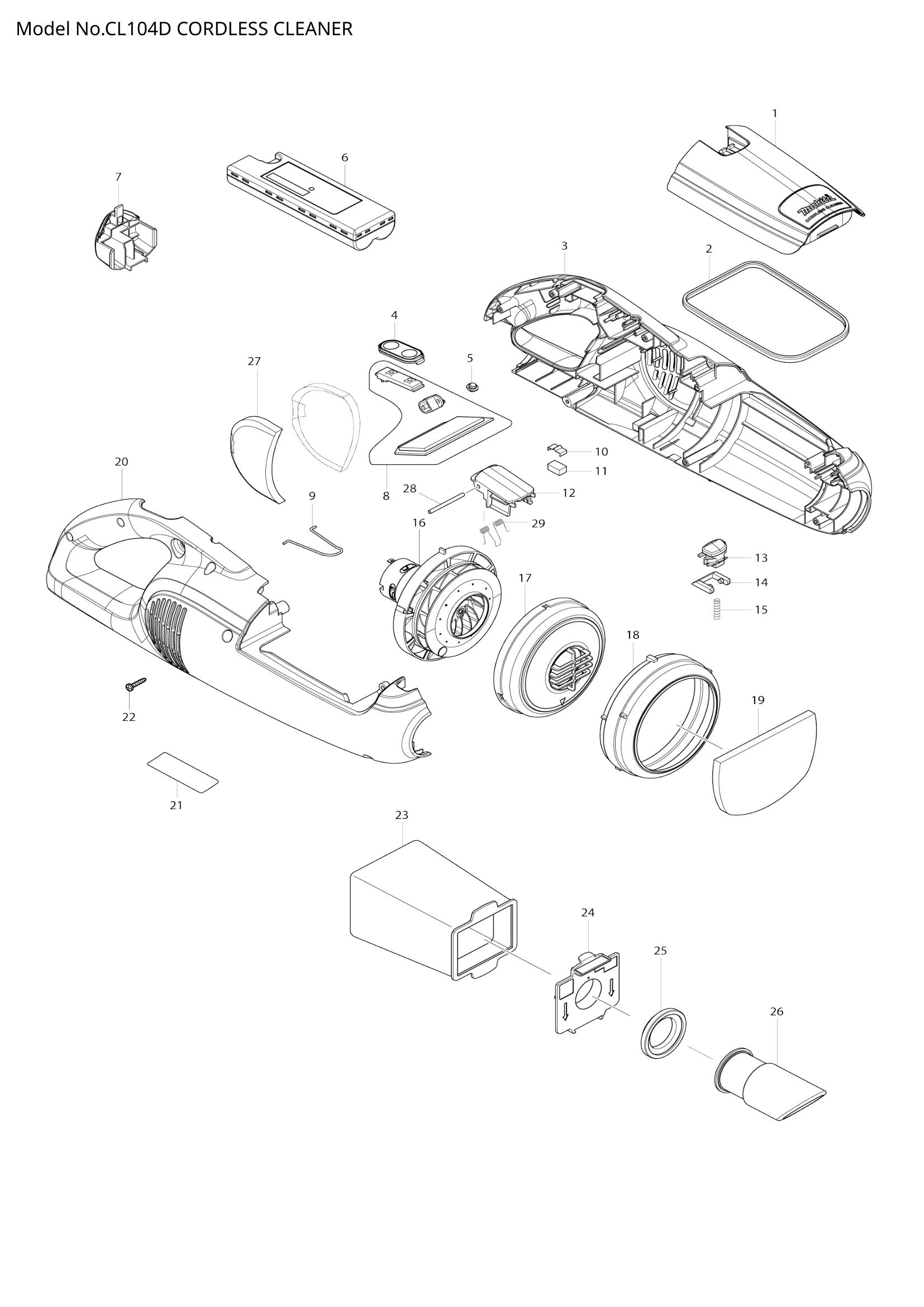

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 455253-0 | FRONT COVER | 1 | €3.06 | 1-4 weeks to ship | |
| 455253-0 | FRONT COVER | 1 | €3.06 | 1-4 weeks to ship | ||
| 002 | 424528-8 | SEAL | 1 | €0.97 | 1-4 weeks to ship | |
| 003 | 187931-1 | HOUSING SET | 1 | €12.25 | 1-4 weeks to ship | |
| 005 | 450522-4 | LENS | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | BATTERY | 1 | Not available in store | |||
| 007 | 455250-6 | COVER | 1 | €0.56 | 1-4 weeks to ship | |
| 455250-6 | COVER | 1 | €0.56 | 1-4 weeks to ship | ||
| 009 | 324885-3 | HANGER | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 232264-0 | LEAF SPRING | 1 | €0.14 | 1-4 weeks to ship | |
| 011 | 424367-6 | RUBBER | 1 | €0.28 | 1-4 weeks to ship | |
| 012 | 455249-1 | FRONT COVER JOINT | 1 | €0.56 | 1-4 weeks to ship | |
| 455249-1 | FRONT COVER JOINT | 1 | €0.56 | 1-4 weeks to ship | ||
| 013 | 455251-4 | BUTTON | 1 | €0.42 | 1-4 weeks to ship | |
| 455251-4 | BUTTON | 1 | €0.42 | 1-4 weeks to ship | ||
| 014 | 455027-9 | STOPPER | 1 | €0.28 | 1-4 weeks to ship | |
| 455027-9 | STOPPER | 1 | €0.28 | 1-4 weeks to ship | ||
| 015 | 233344-5 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 126231-4 | MOTOR ASSEMBLY | 1 | €17.39 | 1-4 weeks to ship | |
| 017 | 454084-4 | FAN COVER | 1 | €1.11 | 1-4 weeks to ship | |
| 454084-4 | FAN COVER | 1 | €1.11 | 1-4 weeks to ship | ||
| 018 | 424320-2 | RUBBER RING | 1 | €1.39 | 1-4 weeks to ship | |
| 020 | 187931-1 | HOUSING SET | 1 | €12.25 | 1-4 weeks to ship | |
| 021 | CL104D NAME PLATE | 1 | Not available in store | |||
| 022 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | €0.56 | 1-4 weeks to ship | |
| 023 | DUST BAG | 1 | Not available in store | |||
| 025 | 424094-5 | PACKING | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | INLET (BLUE) | 1 | Not available in store | |||
| 027 | 423444-1 | SPONGE SHEET 52-76 | 2 | €0.42 | 1-4 weeks to ship | |
| 028 | 268271-7 | PIN 3 | 1 | €0.42 | 1-4 weeks to ship | |
| 029 | 233580-3 | TORSION SPRING 4 | 1 | €0.14 | 1-4 weeks to ship | |
