CF101D
CF101D

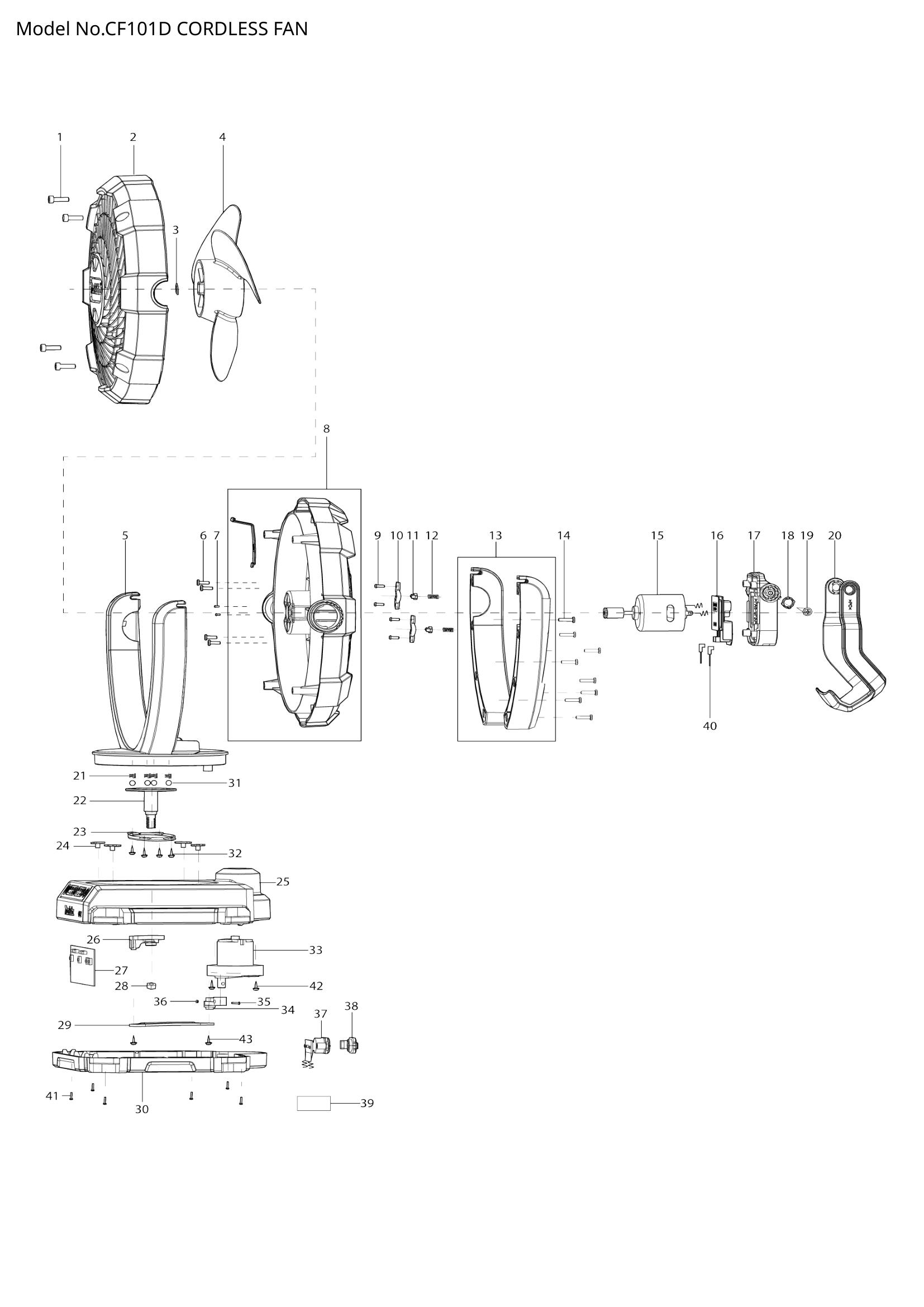

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | TE00000201 | HEX TAPPING SCREW 4X14 | 4 | €1.06 | 1-4 weeks to ship | |
| 002 | FRONT COVER OF THE BODY | 1 | Not available in store | |||
| 003 | TE00000199 | CIRCLIP | 1 | €0.38 | 1-4 weeks to ship | |
| 005 | FRONT COVER OF THE STAND | 1 | Not available in store | |||
| 006 | TE00000202 | SCREW 3X10 | 4 | €0.77 | 1-4 weeks to ship | |
| 007 | TE00000206 | P.H. SCREW M3X5 | 2 | €0.93 | 1-4 weeks to ship | |
| 008 | BACK COVER OF THE BODY | 1 | Not available in store | |||
| 009 | TE00000203 | SELF-TAPPING SCREW 2.5X8 | 4 | €0.58 | 1-4 weeks to ship | |
| 010 | TE00000189 | STOPPER SUPPORT | 2 | €0.13 | 1-4 weeks to ship | |
| 011 | TE00000190 | STOPPER | 2 | €0.13 | 1-4 weeks to ship | |
| 012 | TE00000197 | SPRING1 | 2 | €0.58 | 1-4 weeks to ship | |
| 013 | BACK COVER OF THE SUPPORT | 1 | Not available in store | |||
| 014 | TE00000204 | SCREW 3X14 | 8 | €0.77 | 1-4 weeks to ship | |
| 017 | TE00000179 | THE BATTERY HOUSING | 1 | €0.93 | 1-4 weeks to ship | |
| 018 | TE00000191 | STOPPER FOR HOOK AND HAND | 2 | €0.13 | 1-4 weeks to ship | |
| 019 | TE00000205 | CROSS BELT PAD SCREWS 4X10 | 2 | €0.93 | 1-4 weeks to ship | |
| 020 | TE00000185 | HOOK AND HANDLE | 1 | €1.73 | 1-4 weeks to ship | |
| 021 | SPRING(LARGE) | 4 | Not available in store | |||
| 029 | SHAKE HEAD -CONNECTION IRO | 1 | Not available in store | |||
| 030 | LOWER COVER OF THE BASE | 1 | Not available in store | |||
| 031 | STEEL BALL 6 | 4 | Not available in store | |||
| 032 | TAPPING SCREW 3X8 | 4 | Not available in store | |||
| 034 | TE00000282 | SHAKE HEAD-POM 2 | 1 | €0.21 | 1-4 weeks to ship | |
| 035 | PHILLIPS HEAD SCREW M3X14 | 1 | Not available in store | |||
| 036 | NUT M3 | 1 | Not available in store | |||
| 037 | FIXED PART OF DC BASE | 1 | Not available in store | |||
| 038 | TE00000192 | CHARGING SOCKET PLUG | 1 | €0.21 | 1-4 weeks to ship | |
| 039 | RAITING LABEL | 1 | Not available in store | |||
| 041 | TE00000204 | SCREW 3X14 | 6 | €0.77 | 1-4 weeks to ship | |
| 042 | TAPPING SCREW 3X8 | 2 | Not available in store | |||
| 043 | TAPPING SCREW 3X8 | 2 | Not available in store | |||
| 046 | CABLE TIE | 1 | Not available in store | |||
| 047 | TE00000204 | SCREW 3X14 | 1 | €0.77 | 1-4 weeks to ship | |
| 048 | KIT | 1 | Not available in store | |||
| 049 | PVC TUBE S | 1 | Not available in store | |||
