CF003G
CF003G

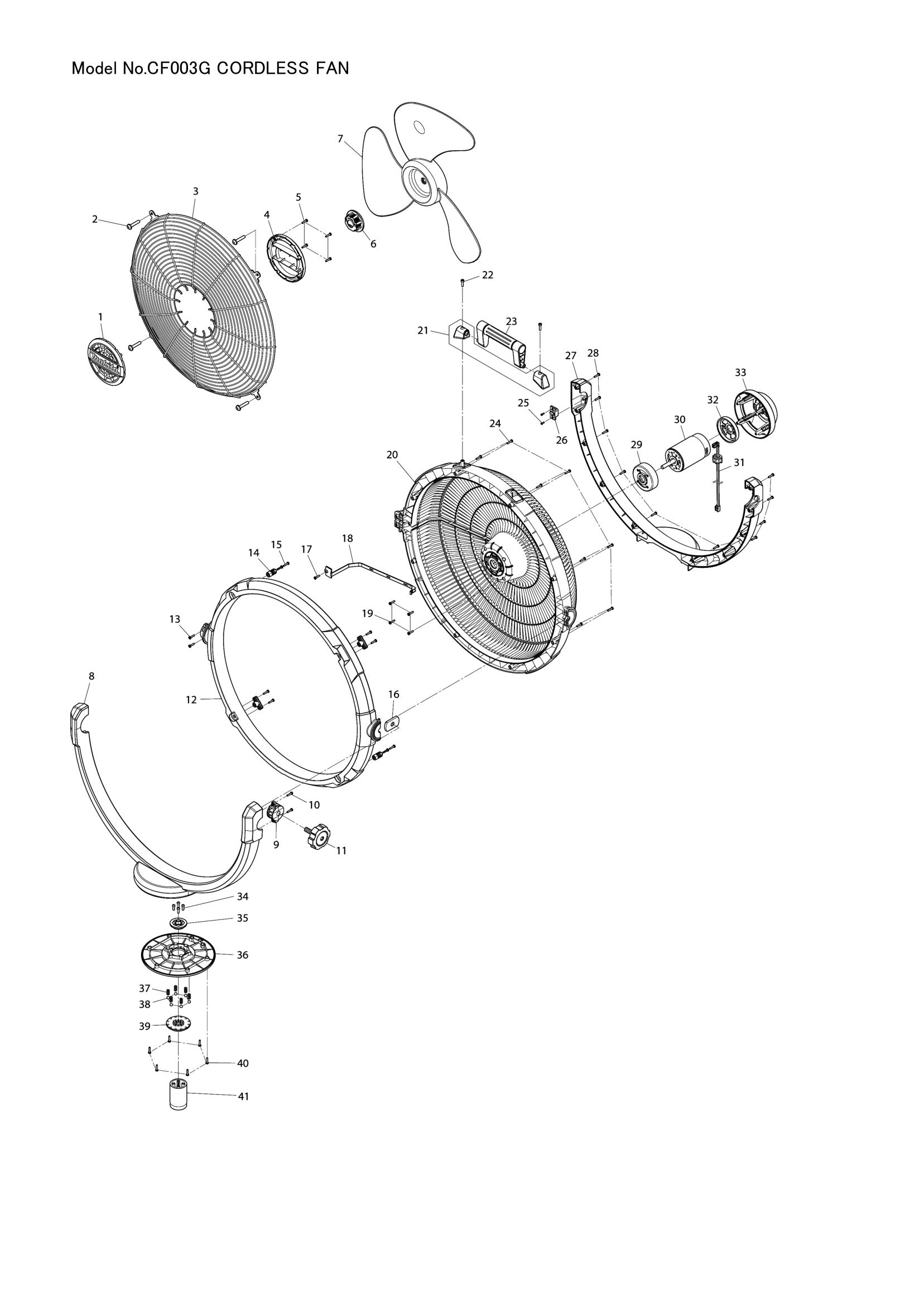

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | CENTER CAP FRONT | 1 | Not available in store | |||
| CENTER CAP FRONT | 1 | Not available in store | ||||
| 002 | PAN HEAD SCREW M5X20 | 4 | Not available in store | |||
| PAN HEAD SCREW M5X20 | 4 | Not available in store | ||||
| 003 | FRONT GUARD | 1 | Not available in store | |||
| FRONT GUARD | 1 | Not available in store | ||||
| 004 | CENTER CAP REAR | 1 | Not available in store | |||
| CENTER CAP REAR | 1 | Not available in store | ||||
| 005 | TAPPING SCREW 3X14 | 4 | Not available in store | |||
| TAPPING SCREW 3X14 | 4 | Not available in store | ||||
| 007 | FAN BLADE 45 | 1 | Not available in store | |||
| FAN BLADE 45 | 1 | Not available in store | ||||
| 008 | FRONT SWINGING FLAME | 1 | Not available in store | |||
| FRONT SWINGING FLAME | 1 | Not available in store | ||||
| 009 | ANGLE ADJUSTER RING | 1 | Not available in store | |||
| ANGLE ADJUSTER RING | 1 | Not available in store | ||||
| 010 | TAPPING SCREW 3X14 | 2 | Not available in store | |||
| TAPPING SCREW 3X14 | 2 | Not available in store | ||||
| 011 | TUB SCREW M10X31 | 1 | Not available in store | |||
| TUB SCREW M10X31 | 1 | Not available in store | ||||
| 012 | FRONT GUARD FIXING RING | 1 | Not available in store | |||
| FRONT GUARD FIXING RING | 1 | Not available in store | ||||
| 013 | TAPPING SCREW 3X14 | 2 | Not available in store | |||
| TAPPING SCREW 3X14 | 2 | Not available in store | ||||
| 015 | TAPPING SCREW 3X14 | 8 | Not available in store | |||
| TAPPING SCREW 3X14 | 8 | Not available in store | ||||
| 016 | RECTANGLE NUT M10 | 1 | Not available in store | |||
| RECTANGLE NUT M10 | 1 | Not available in store | ||||
| 017 | TAPPING SCREW 3X14 | 1 | Not available in store | |||
| TAPPING SCREW 3X14 | 1 | Not available in store | ||||
| 019 | TAPPING SCREW 3X14 | 4 | Not available in store | |||
| TAPPING SCREW 3X14 | 4 | Not available in store | ||||
| 020 | REAR GUARD | 1 | Not available in store | |||
| REAR GUARD | 1 | Not available in store | ||||
| 021 | HANDLE HOLDER L/R SET | 1 | Not available in store | |||
| HANDLE HOLDER L/R SET | 1 | Not available in store | ||||
| 023 | HANDLE | 1 | Not available in store | |||
| HANDLE | 1 | Not available in store | ||||
| 024 | TAPPING SCREW 3X14 | 8 | Not available in store | |||
| TAPPING SCREW 3X14 | 8 | Not available in store | ||||
| 025 | TE00000203 | SELF-TAPPING SCREW 2.5X8 | 2 | €0.58 | 1-4 weeks to ship | |
| TE00000203 | SELF-TAPPING SCREW 2.5X8 | 2 | €0.58 | 1-4 weeks to ship | ||
| 026 | POM SMALL FASTENER 1 | 1 | Not available in store | |||
| POM SMALL FASTENER 1 | 1 | Not available in store | ||||
| 027 | REAR SWINGING FLAME | 1 | Not available in store | |||
| REAR SWINGING FLAME | 1 | Not available in store | ||||
| 028 | TAPPING SCREW 3X14 | 10 | Not available in store | |||
| TAPPING SCREW 3X14 | 10 | Not available in store | ||||
| 029 | FRONT MOTOR MOUNT | 1 | Not available in store | |||
| FRONT MOTOR MOUNT | 1 | Not available in store | ||||
| 030 | DC MOTOR ASSY | 1 | Not available in store | |||
| DC MOTOR ASSY | 1 | Not available in store | ||||
| 032 | REAR MOTOR MOUNT | 1 | Not available in store | |||
| REAR MOTOR MOUNT | 1 | Not available in store | ||||
| 033 | MOTOR HOUSING | 1 | Not available in store | |||
| MOTOR HOUSING | 1 | Not available in store | ||||
| 034 | PAN HEAD SCREW M4X12 | 4 | Not available in store | |||
| PAN HEAD SCREW M4X12 | 4 | Not available in store | ||||
| 036 | TURN TABLE | 1 | Not available in store | |||
| TURN TABLE | 1 | Not available in store | ||||
| 037 | COMPRESSION SPRING 6 | 6 | Not available in store | |||
| COMPRESSION SPRING 6 | 6 | Not available in store | ||||
| 038 | STEEL BALL 6 | 6 | Not available in store | |||
| STEEL BALL 6 | 6 | Not available in store | ||||
| 040 | TAPPING SCREW 3X14 | 6 | Not available in store | |||
| TAPPING SCREW 3X14 | 6 | Not available in store | ||||
| 041 | SWING SHAFT | 1 | Not available in store | |||
| SWING SHAFT | 1 | Not available in store | ||||
| 042 | TURN TABLE RING | 1 | Not available in store | |||
| TURN TABLE RING | 1 | Not available in store | ||||
| 043 | BALL BEARING 6008ZZ | 2 | Not available in store | |||
| BALL BEARING 6008ZZ | 2 | Not available in store | ||||
| 045 | KNOB FOR SPEED CONTROL | 1 | Not available in store | |||
| KNOB FOR SPEED CONTROL | 1 | Not available in store | ||||
| 046 | LABEL FOR SWITCH PANEL | 1 | Not available in store | |||
| LABEL FOR SWITCH PANEL | 1 | Not available in store | ||||
| 048 | PCB | 1 | Not available in store | |||
| PCB | 1 | Not available in store | ||||
| 049 | TAPPING SCREW 3X10 | 4 | Not available in store | |||
| TAPPING SCREW 3X10 | 4 | Not available in store | ||||
| 050 | DC SOCKET COVER | 1 | Not available in store | |||
| DC SOCKET COVER | 1 | Not available in store | ||||
| 051 | DC SOCKET PANEL | 1 | Not available in store | |||
| DC SOCKET PANEL | 1 | Not available in store | ||||
| 052 | DC SOCKET | 1 | Not available in store | |||
| DC SOCKET | 1 | Not available in store | ||||
| 053 | TAPPING SCREW 3X14 | 2 | Not available in store | |||
| TAPPING SCREW 3X14 | 2 | Not available in store | ||||
| 054 | GEAR 54 | 1 | Not available in store | |||
| GEAR 54 | 1 | Not available in store | ||||
| 055 | PAN HEAD SCREW M4X12 | 4 | Not available in store | |||
| PAN HEAD SCREW M4X12 | 4 | Not available in store | ||||
| 057 | TAPPING SCREW 3X14 | 2 | Not available in store | |||
| TAPPING SCREW 3X14 | 2 | Not available in store | ||||
| 058 | GEAR 20 | 1 | Not available in store | |||
| GEAR 20 | 1 | Not available in store | ||||
| 059 | SWING UNIT HOUSING | 1 | Not available in store | |||
| SWING UNIT HOUSING | 1 | Not available in store | ||||
| 060 | TAPPING SCREW 3X14 | 3 | Not available in store | |||
| TAPPING SCREW 3X14 | 3 | Not available in store | ||||
| 061 | CABLE TIE | 1 | Not available in store | |||
| CABLE TIE | 1 | Not available in store | ||||
| 062 | TAPPING SCREW 3X14 | 1 | Not available in store | |||
| TAPPING SCREW 3X14 | 1 | Not available in store | ||||
| 063 | TAPPING SCREW 3X14 | 2 | Not available in store | |||
| TAPPING SCREW 3X14 | 2 | Not available in store | ||||
| 064 | TAPPING SCREW 3X14 | 1 | Not available in store | |||
| TAPPING SCREW 3X14 | 1 | Not available in store | ||||
| 065 | BATTERY HOLDER LEFT | 1 | Not available in store | |||
| BATTERY HOLDER LEFT | 1 | Not available in store | ||||
| 066 | BATTERY TERMINAL(LXT) | 1 | Not available in store | |||
| BATTERY TERMINAL(LXT) | 1 | Not available in store | ||||
| 067 | TAPPING SCREW 3X14 | 2 | Not available in store | |||
| TAPPING SCREW 3X14 | 2 | Not available in store | ||||
| 068 | BATTERY HOLDER CENTER | 1 | Not available in store | |||
| BATTERY HOLDER CENTER | 1 | Not available in store | ||||
| 069 | BATTERY TERMINAL(XGT) | 1 | Not available in store | |||
| BATTERY TERMINAL(XGT) | 1 | Not available in store | ||||
| 070 | TAPPING SCREW 3X14 | 1 | Not available in store | |||
| TAPPING SCREW 3X14 | 1 | Not available in store | ||||
| 071 | BATTERY HOLDER RIGHT | 1 | Not available in store | |||
| BATTERY HOLDER RIGHT | 1 | Not available in store | ||||
| 072 | TAPPING SCREW 3X14 | 2 | Not available in store | |||
| TAPPING SCREW 3X14 | 2 | Not available in store | ||||
| 074 | TAPPING SCREW 3X14 | 12 | Not available in store | |||
| TAPPING SCREW 3X14 | 12 | Not available in store | ||||
| 076 | TAPPING SCREW 3X14 | 3 | Not available in store | |||
| TAPPING SCREW 3X14 | 3 | Not available in store | ||||
| 077 | ACCESSORY BOX LEFT SIDE | 1 | Not available in store | |||
| ACCESSORY BOX LEFT SIDE | 1 | Not available in store | ||||
| 079 | TAPPING SCREW 3X14 | 2 | Not available in store | |||
| TAPPING SCREW 3X14 | 2 | Not available in store | ||||
| 083 | TAPPING SCREW 3X14 | 2 | Not available in store | |||
| TAPPING SCREW 3X14 | 2 | Not available in store | ||||
| 084 | TAPPING SCREW 3X14 | 3 | Not available in store | |||
| TAPPING SCREW 3X14 | 3 | Not available in store | ||||
| 085 | ACCESSORY BOX RIGHT SIDE | 1 | Not available in store | |||
| ACCESSORY BOX RIGHT SIDE | 1 | Not available in store | ||||
| 086 | TAPPING SCREW 3X14 | 2 | Not available in store | |||
| TAPPING SCREW 3X14 | 2 | Not available in store | ||||
| 087 | TAPPING SCREW 4X10 | 4 | Not available in store | |||
| TAPPING SCREW 4X10 | 4 | Not available in store | ||||
| 088 | TAPPING SCREW 4X10 | 4 | Not available in store | |||
| TAPPING SCREW 4X10 | 4 | Not available in store | ||||
| 089 | ALUMINUM LEG | 2 | Not available in store | |||
| ALUMINUM LEG | 2 | Not available in store | ||||
| 090 | UPPER FOOTS SET | 1 | Not available in store | |||
| UPPER FOOTS SET | 1 | Not available in store | ||||
| 091 | TAPPING SCREW 4X10 | 3 | Not available in store | |||
| TAPPING SCREW 4X10 | 3 | Not available in store | ||||
| 092 | TAPPING SCREW 4X10 | 3 | Not available in store | |||
| TAPPING SCREW 4X10 | 3 | Not available in store | ||||
| 093 | LOWER FOOTS SET | 1 | Not available in store | |||
| LOWER FOOTS SET | 1 | Not available in store | ||||
| 094 | TAPPING SCREW 3X14 | 5 | Not available in store | |||
| TAPPING SCREW 3X14 | 5 | Not available in store | ||||
| 095 | TAPPING SCREW 3X14 | 5 | Not available in store | |||
| TAPPING SCREW 3X14 | 5 | Not available in store | ||||
| 097 | XGT LABEL | 1 | Not available in store | |||
| XGT LABEL | 1 | Not available in store | ||||
| 099 | SWITCH PANEL | 1 | Not available in store | |||
| SWITCH PANEL | 1 | Not available in store | ||||
