CA5000
CA5000

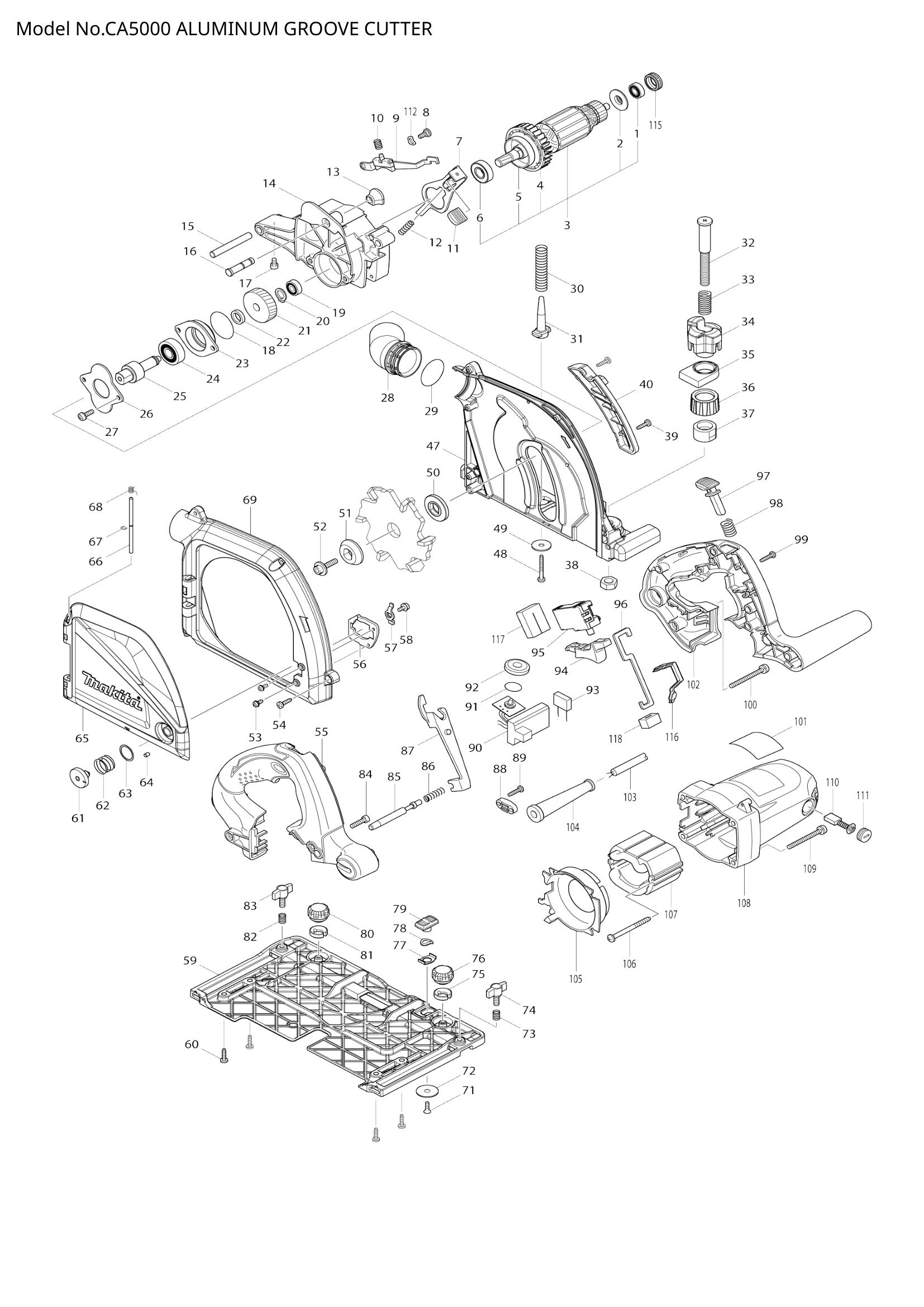

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 210013-5 | BALL BEARING 698VV | 1 | €8.35 | 1-4 weeks to ship | |
| 002 | 681634-4 | INSULATION WASHER | 1 | €1.11 | 1-4 weeks to ship | |
| 003 | 513678-5 | ARMATURE ASS'Y 220-240V | 1 | €64.01 | 1-4 weeks to ship | |
| 004 | 240091-1 | FAN 60 | 1 | €11.13 | 1-4 weeks to ship | |
| 005 | 345767-6 | DRUM | 1 | €5.57 | 1-4 weeks to ship | |
| 006 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 007 | 345742-2 | SHAFT LOCK | 1 | €5.57 | 1-4 weeks to ship | |
| 010 | 233480-7 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 233084-5 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 324708-5 | STOPPER PIN 8 | 1 | €2.78 | 1-4 weeks to ship | |
| 018 | 213512-6 | O RING 39 | 1 | €1.39 | 1-4 weeks to ship | |
| 019 | 211021-9 | BALL BEARING 607LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 020 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 226637-7 | HELICAL GEAR 39 | 1 | €13.92 | 1-4 weeks to ship | |
| 022 | 257010-0 | RING 12 | 1 | €0.83 | 1-4 weeks to ship | |
| 023 | 318088-9 | BEARING BOX | 1 | €5.57 | 1-4 weeks to ship | |
| 024 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 025 | 326555-0 | SPINDLE | 1 | €5.01 | 1-4 weeks to ship | |
| 026 | 285024-9 | BEARING RETAINER 55 | 1 | €3.06 | 1-4 weeks to ship | |
| 027 | 911221-8 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 028 | 419620-3 | DUST NOZZLE | 1 | €4.17 | 1-4 weeks to ship | |
| 029 | 213460-9 | O RING 35 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 233479-2 | COMPRESSION SPRING 11 | 1 | €0.83 | 1-4 weeks to ship | |
| 031 | 419624-5 | SPRING HOLDER | 1 | €1.39 | 1-4 weeks to ship | |
| 032 | 266964-0 | + FLAT HEAD SCREW M10 | 1 | €6.40 | 1-4 weeks to ship | |
| 033 | 234382-0 | COMPRESSION SPRING 13 | 1 | €0.14 | 1-4 weeks to ship | |
| 034 | 319316-5 | STOPPER | 1 | €20.32 | 1-4 weeks to ship | |
| 035 | 456060-4 | SPACER | 1 | €2.37 | 1-4 weeks to ship | |
| 036 | 456059-9 | GRIP | 1 | €3.06 | 1-4 weeks to ship | |
| 037 | 264115-9 | CIRCULAR NUT M10-24 | 1 | €5.43 | 1-4 weeks to ship | |
| 039 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 040 | 456110-5 | DEPTH GUIDE | 1 | €3.90 | 1-4 weeks to ship | |
| 047 | 319317-3 | BLADE CASE | 1 | €86.27 | 1-4 weeks to ship | |
| 048 | 266053-1 | TAPPING SCREW 4X35 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 253010-8 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 224479-3 | OUTER FLANGE 35 | 1 | €27.00 | 1-4 weeks to ship | |
| 052 | 251475-8 | HEX. SOCKET HEAD BOLT M6X25 | 1 | €0.42 | 1-4 weeks to ship | |
| 053 | 911113-1 | PAN HEAD SCREW M4X10 WITH | 2 | €0.56 | 1-4 weeks to ship | |
| 054 | 266034-5 | TAPPING SCREW CT 4X16 | 5 | €0.56 | 1-4 weeks to ship | |
| 055 | 188197-6 | HANDLE SET | 1 | €27.83 | 1-4 weeks to ship | |
| 056 | 346946-9 | LOCK PLATE B | 1 | €6.26 | 1-4 weeks to ship | |
| 057 | 346945-1 | LOCK PLATE A | 1 | €5.84 | 1-4 weeks to ship | |
| 058 | 911114-9 | PAN HEAD SCREW M4X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | 319314-9 | BASE | 1 | €43.14 | 1-4 weeks to ship | |
| 060 | 266034-5 | TAPPING SCREW CT 4X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 061 | LOCK PIN | 1 | Not available in store | |||
| 062 | 234283-2 | COMPRESSION SPRING 18.5 | 1 | €0.14 | 1-4 weeks to ship | |
| 063 | 253343-1 | THIN WASHER 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | 263032-0 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 065 | 456062-0 | COVER | 1 | €20.32 | 1-4 weeks to ship | |
| 066 | 256875-7 | ROD 4 | 1 | €0.70 | 1-4 weeks to ship | |
| 067 | 961017-7 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | 233627-3 | TORSION SPRING 4 | 1 | €0.14 | 1-4 weeks to ship | |
| 069 | 456061-2 | BLADE CASE COVER | 1 | €15.31 | 1-4 weeks to ship | |
| 071 | 912112-6 | COUNTERSUNK HEAD SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 072 | 345748-0 | LOCK WASHER | 1 | €1.11 | 1-4 weeks to ship | |
| 074 | 265726-3 | SCREW M6X15 | 1 | €1.39 | 1-4 weeks to ship | |
| 075 | 419627-9 | HOLDER | 1 | €0.83 | 1-4 weeks to ship | |
| 076 | 265775-0 | THUMB SCREW M4X3 | 1 | €0.83 | 1-4 weeks to ship | |
| 077 | 345977-5 | PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | 253932-2 | WAVE WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 080 | 265775-0 | THUMB SCREW M4X3 | 1 | €0.83 | 1-4 weeks to ship | |
| 081 | 419627-9 | HOLDER | 1 | €0.83 | 1-4 weeks to ship | |
| 083 | 265726-3 | SCREW M6X15 | 1 | €1.39 | 1-4 weeks to ship | |
| 084 | 922232-8 | HEX. SOCKET HEAD BOLT M5X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 085 | 326557-6 | LOCK PIN 8 | 1 | €2.23 | 1-4 weeks to ship | |
| 086 | 233267-7 | COMPRESSION SPRING 7 | 1 | €0.83 | 1-4 weeks to ship | |
| 087 | 419631-8 | LOCK PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 088 | 687052-4 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 089 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 090 | 631729-3 | CONTROLLER | 1 | €58.44 | 1-4 weeks to ship | |
| 091 | 213261-5 | O RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 092 | 418905-4 | DIAL | 1 | €0.97 | 1-4 weeks to ship | |
| 093 | 645185-1 | NOISE SUPPRESSOR | 1 | €0.56 | 1-4 weeks to ship | |
| 094 | 419622-9 | SWITCH LEVER | 1 | €1.67 | 1-4 weeks to ship | |
| 095 | 650716-3 | SWITCH TGC31B | 1 | €7.65 | 1-4 weeks to ship | |
| 650716-3 | SWITCH TGC31B | 1 | €7.65 | 1-4 weeks to ship | ||
| 096 | 345745-6 | LINK PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 097 | 419629-5 | LOCK OFF BUTTON | 1 | €1.39 | 1-4 weeks to ship | |
| 098 | 233089-5 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 099 | 265995-6 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 100 | 911273-9 | PAN HEAD SCREW M5X50 | 1 | €0.56 | 1-4 weeks to ship | |
| 911273-9 | PAN HEAD SCREW M5X50 | 1 | €0.56 | 1-4 weeks to ship | ||
| 101 | CA5000 NAME PLATE | 1 | Not available in store | |||
| 102 | 188197-6 | HANDLE SET | 1 | €27.83 | 1-4 weeks to ship | |
| 103 | 665890-4 | POWER SUPPLY CORD 1.0-2-4.0 | 1 | €25.05 | 1-4 weeks to ship | |
| 104 | 682540-6 | CORD GUARD 9.3-90 | 1 | €1.39 | 1-4 weeks to ship | |
| 105 | 419626-1 | BAFFLE PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 106 | 266044-2 | TAPPING SCREW 5X60 | 2 | €1.11 | 1-4 weeks to ship | |
| 107 | 525743-8 | FIELD ASS'Y 220-240V | 1 | €25.05 | 1-4 weeks to ship | |
| 108 | 158094-0 | MOTOR HOUSING COMPLETE | 1 | €22.26 | 1-4 weeks to ship | |
| 109 | 911273-9 | PAN HEAD SCREW M5X50 | 4 | €0.56 | 1-4 weeks to ship | |
| 911273-9 | PAN HEAD SCREW M5X50 | 4 | €0.56 | 1-4 weeks to ship | ||
| 111 | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | €0.56 | 1-4 weeks to ship | |
| 112 | 267781-1 | WAVE WASHER 7 | 1 | €1.39 | 1-4 weeks to ship | |
| 115 | 421479-6 | RUBBER RING 19 | 1 | €5.57 | 1-4 weeks to ship | |
| 116 | 424047-4 | PACKING | 1 | €0.56 | 1-4 weeks to ship | |
| 117 | 424050-5 | SPONGE | 1 | €0.56 | 1-4 weeks to ship | |
| 118 | 443137-4 | FELT | 1 | €0.56 | 1-4 weeks to ship | |
| 119 | SHOE S | 1 | Not available in store | |||
