4112HS
4112HS

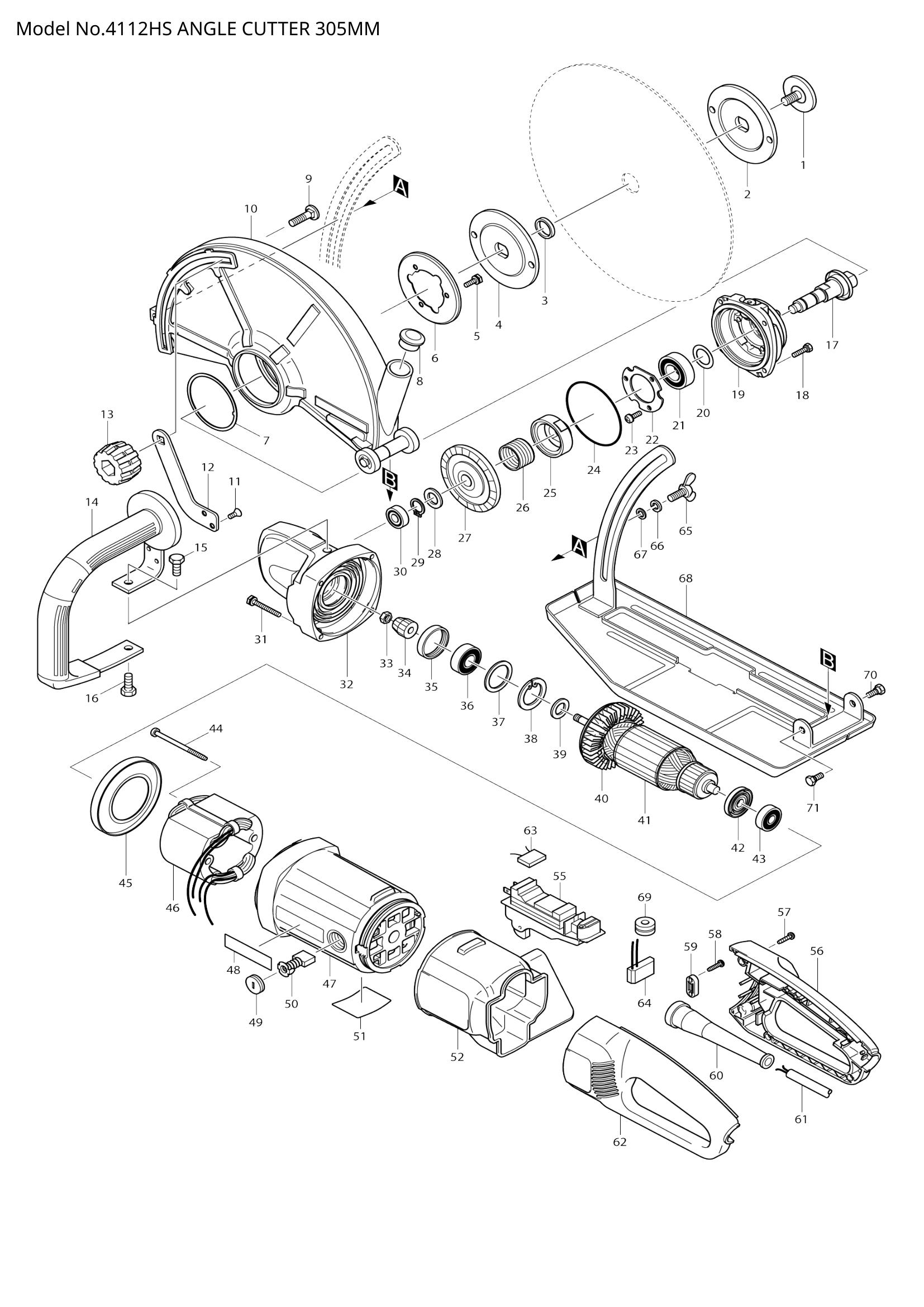

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 265265-3 | HEX. BOLT M10X25 | 1 | €4.17 | 1-4 weeks to ship | |
| 002 | 224184-2 | INNER FLANGE 100 | 1 | €22.26 | 1-4 weeks to ship | |
| 003 | 257054-0 | RING 20 | 1 | €4.17 | 1-4 weeks to ship | |
| 004 | 224184-2 | INNER FLANGE 100 | 1 | €22.26 | 1-4 weeks to ship | |
| 006 | 345269-2 | PRESSURE PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 007 | 341853-1 | PLATE B | 1 | €1.39 | 1-4 weeks to ship | |
| 009 | 265845-5 | CAP SQUARE NECK BOLT M8X30 | 1 | €1.11 | 1-4 weeks to ship | |
| 010 | 125185-2 | WHEEL COVER ASS'Y | 1 | €164.20 | 1-4 weeks to ship | |
| 011 | 912202-5 | COUNTERSUNK HEAD SCREW M5 | 2 | €0.56 | 1-4 weeks to ship | |
| 012 | 345291-9 | LOCK PLATE | 1 | €5.57 | 1-4 weeks to ship | |
| 013 | 252648-6 | THUMB NUT M8 | 1 | €11.13 | 1-4 weeks to ship | |
| 014 | 273655-6 | GRIP | 1 | €52.88 | 1-4 weeks to ship | |
| 015 | 921432-7 | HEX. BOLT M8X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 921432-7 | HEX. BOLT M8X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 153541-6 | SPINDLE COMPLETE | 1 | €44.53 | 1-4 weeks to ship | |
| 018 | 265502-5 | + HEX. BOLT M5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 019 | 153539-3 | BEARING BOX COMPLETE | 1 | €36.18 | 1-4 weeks to ship | |
| 020 | 267041-1 | FLAT WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 285708-9 | BEARING RETAINER 50 | 1 | €4.17 | 1-4 weeks to ship | |
| 023 | 911221-8 | PAN HEAD SCREW M5X16 | 3 | €0.56 | 1-4 weeks to ship | |
| 024 | 213757-6 | O RING 80 | 1 | €1.39 | 1-4 weeks to ship | |
| 025 | 331644-8 | LOCK SLEEVE | 1 | €25.05 | 1-4 weeks to ship | |
| 026 | 233922-1 | LOCK SPRING 24 | 1 | €13.92 | 1-4 weeks to ship | |
| 027 | 227438-6 | SPIRAL BEVEL GEAR 48 | 1 | €77.92 | 1-4 weeks to ship | |
| 028 | 267251-0 | FLAT WASHER 15 | 1 | €5.57 | 1-4 weeks to ship | |
| 029 | 961055-9 | RETAINING RING S-15 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 031 | 925261-0 | + HEX. BOLT M5X40 | 4 | €0.56 | 1-4 weeks to ship | |
| 032 | 153542-4 | GEAR HOUSING COMPLETE | 1 | €75.14 | 1-4 weeks to ship | |
| 033 | 252178-7 | HEX. NUT M8-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 227440-9 | SPIRAL BEVEL GEAR 9 | 1 | €30.61 | 1-4 weeks to ship | |
| 035 | 262554-7 | RUBBER RING 36 | 1 | €0.83 | 1-4 weeks to ship | |
| 036 | 211228-7 | BALL BEARING 6202DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 037 | 267250-2 | FLAT WASHER 30 | 1 | €2.78 | 1-4 weeks to ship | |
| 038 | 962157-4 | RETAINING RING R-40 | 1 | €0.83 | 1-4 weeks to ship | |
| 039 | 267251-0 | FLAT WASHER 15 | 1 | €5.57 | 1-4 weeks to ship | |
| 040 | 240060-2 | FAN 80 | 1 | €13.92 | 1-4 weeks to ship | |
| 041 | 516888-3 | ARMATURE ASS'Y 220-240V | 1 | €128.02 | 1-4 weeks to ship | |
| 042 | 681630-2 | INSULATION WASHER | 1 | €1.11 | 1-4 weeks to ship | |
| 043 | 211087-9 | BALL BEARING 6200DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 044 | 266059-9 | TAPPING SCREW 5X75 | 2 | €1.11 | 1-4 weeks to ship | |
| 045 | 416131-9 | BAFFLE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 046 | 626134-7 | FIELD 220-240V | 1 | €69.58 | 1-4 weeks to ship | |
| 047 | 183564-0 | MOTOR HOUSING | 1 | €52.88 | 1-4 weeks to ship | |
| 048 | 819064-1 | MAKITA MARK | 2 | €0.56 | 1-4 weeks to ship | |
| 049 | 643710-2 | BRUSH HOLDER CAP | 2 | €1.67 | 1-4 weeks to ship | |
| 051 | 850449-2 | NAME PLATE 4112HS | 1 | €0.83 | 1-4 weeks to ship | |
| 052 | 421831-8 | DUST COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 056 | 183615-9 | HANDLE SET | 1 | €44.53 | 1-4 weeks to ship | |
| 057 | 266045-0 | TAPPING SCREW 4X20 | 5 | €0.56 | 1-4 weeks to ship | |
| 058 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 059 | 687053-2 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | 682560-0 | CORD GUARD 10 | 1 | €1.67 | 1-4 weeks to ship | |
| 061 | 695107-1 | POWER SUPPLY CORD 1.5-2-2.5 | 1 | €11.83 | 1-4 weeks to ship | |
| 062 | 183615-9 | HANDLE SET | 1 | €44.53 | 1-4 weeks to ship | |
| 063 | 645200-1 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 064 | 631553-4 | SOFT START CIRCUIT | 1 | €44.53 | 1-4 weeks to ship | |
| 065 | 924426-1 | WING BOLT M8X20 | 1 | €2.78 | 1-4 weeks to ship | |
| 066 | 942201-3 | SPRING WASHER 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 067 | 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 068 | 165343-8 | BASE | 1 | €19.48 | 1-4 weeks to ship | |
| 070 | 265506-7 | SHOULDER HEX. BOLT M6 | 1 | €2.78 | 1-4 weeks to ship | |
| 071 | 265506-7 | SHOULDER HEX. BOLT M6 | 1 | €2.78 | 1-4 weeks to ship |
