BVC350
BVC350

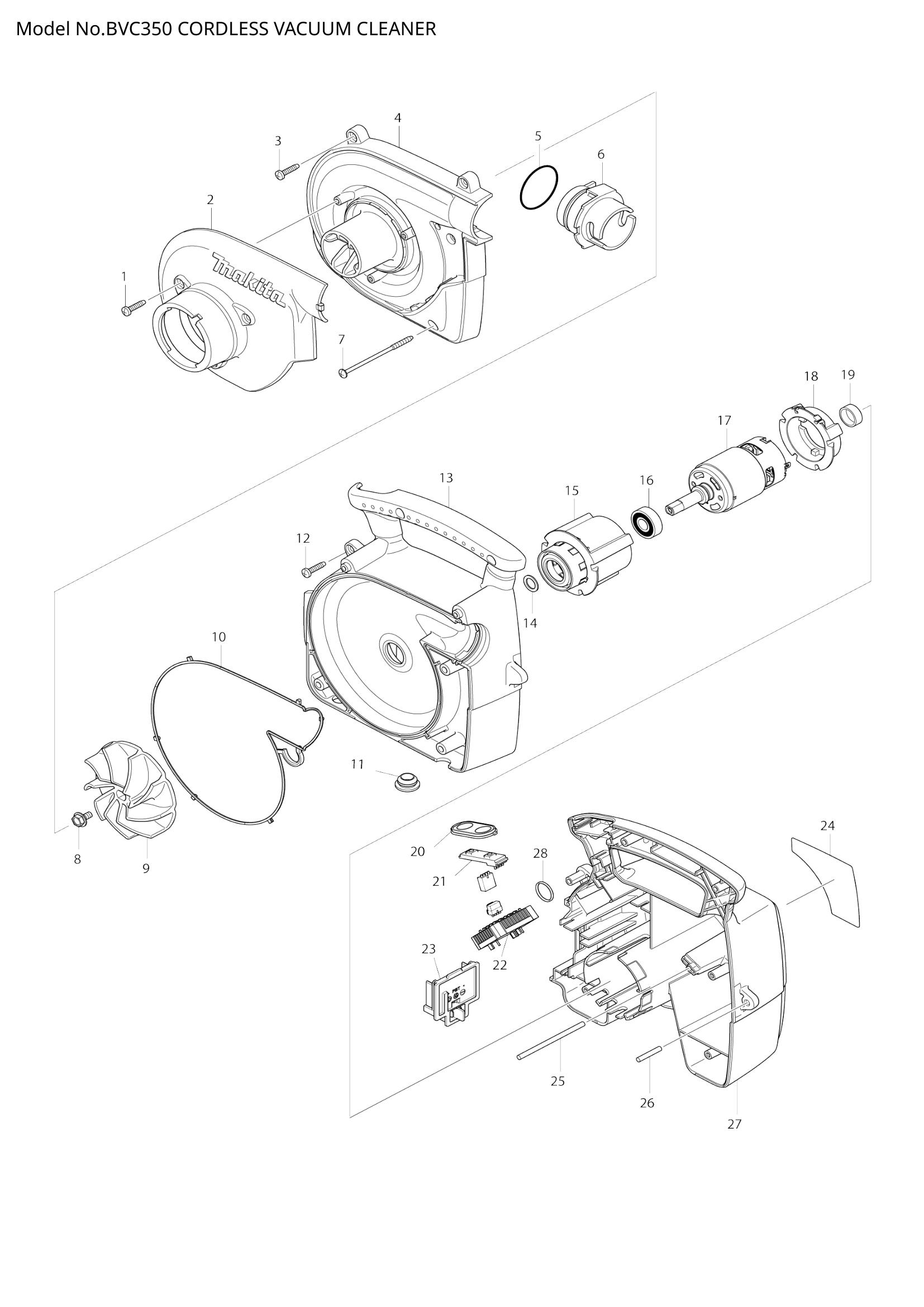

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 265995-6 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 003 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 004 | 451989-9 | FAN COVER | 1 | €22.26 | 1-4 weeks to ship | |
| 005 | 213508-7 | O RING 38 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 452067-8 | JOINT | 1 | €5.57 | 1-4 weeks to ship | |
| 007 | 266049-2 | TAPPING SCREW 4X75 | 3 | €1.11 | 1-4 weeks to ship | |
| 008 | 266614-7 | HEX. FLANGE HEAD BOLT M5X10 | 1 | €1.11 | 1-4 weeks to ship | |
| 009 | 240122-6 | FAN 86 | 1 | €5.57 | 1-4 weeks to ship | |
| 010 | 424332-5 | SEAL RING | 1 | €2.78 | 1-4 weeks to ship | |
| 012 | 265995-6 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 013 | 187008-2 | MOTOR HOUSING SET | 1 | €75.14 | 1-4 weeks to ship | |
| 014 | 267047-9 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 424330-9 | MOTOR RUBBER RING A | 1 | €4.17 | 1-4 weeks to ship | |
| 016 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 017 | 629888-5 | DC MOTOR | 1 | €52.88 | 1-4 weeks to ship | |
| 018 | 424331-7 | MOTOR RUBBER RING B | 1 | €2.78 | 1-4 weeks to ship | |
| 019 | 421940-3 | CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 140463-9 | SWITCH PLATE COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 021 | 631973-2 | SWITCH UNIT | 1 | €11.13 | 1-4 weeks to ship | |
| 023 | 643852-2 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 643852-2 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | ||
| 024 | BVC350 NAME PLATE | 1 | Not available in store | |||
| 025 | 268092-7 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 256206-0 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 187008-2 | MOTOR HOUSING SET | 1 | €75.14 | 1-4 weeks to ship | |
| 028 | 259048-1 | RING | 1 | €0.56 | 1-4 weeks to ship | |
