4105KB
4105KB

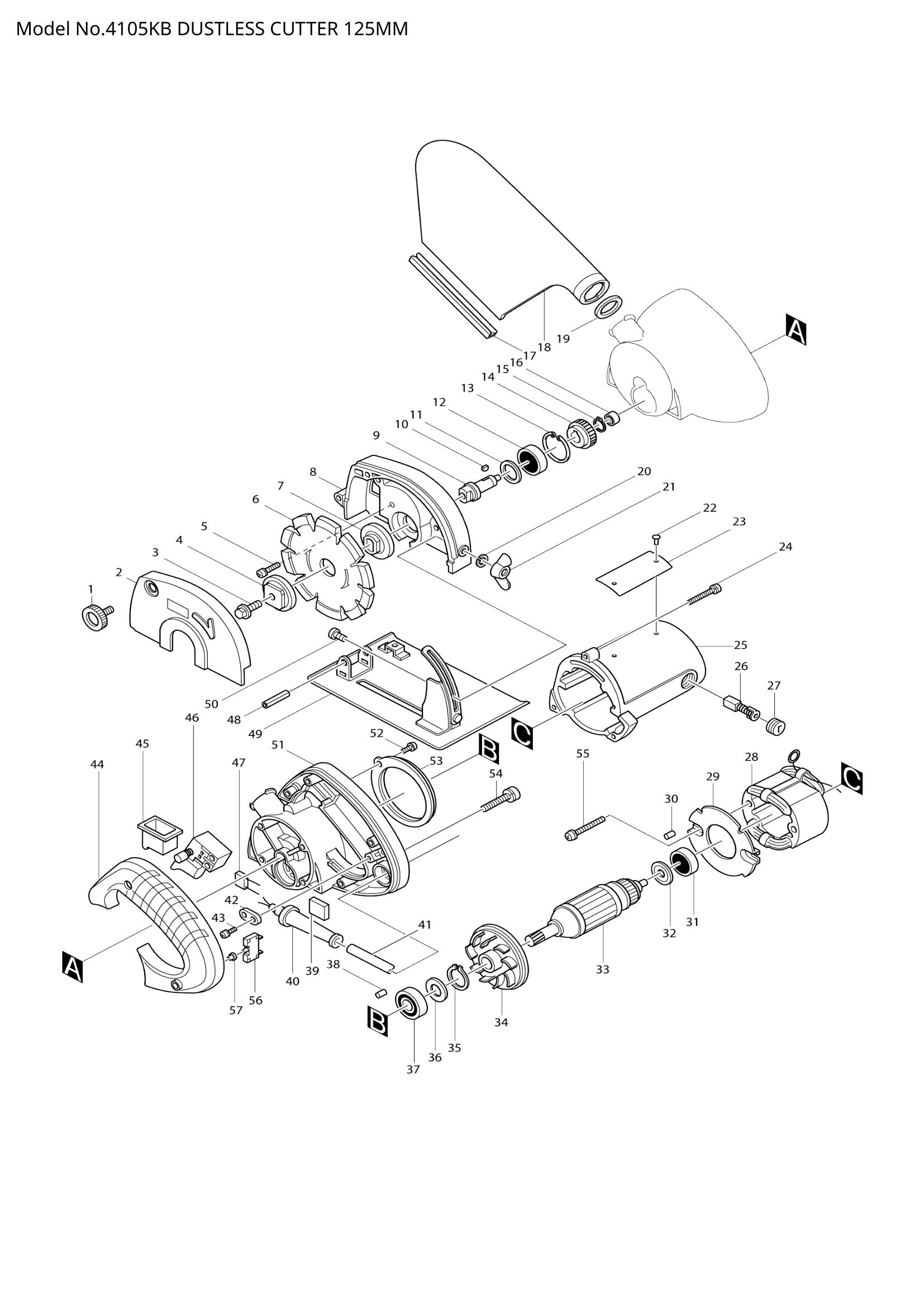

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 004 | 224081-2 | OUTER FLANGE 36 | 1 | €4.45 | 1-4 weeks to ship | |
| 005 | 911131-9 | PAN HEAD SCREW M4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 007 | 224080-4 | INNER FLANGE 36 | 1 | €16.70 | 1-4 weeks to ship | |
| 008 | BLADE CASE | 1 | Not available in store | |||
| 009 | SPINDLE | 1 | Not available in store | |||
| 010 | 254011-9 | WOODRUFF KEY 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | THIN WASHER 12 | 1 | Not available in store | |||
| 013 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 221692-4 | HELICAL GEAR 40 | 1 | €19.48 | 1-4 weeks to ship | |
| 015 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 212019-9 | NEEDLE BEARING 709 | 1 | €12.52 | 1-4 weeks to ship | |
| 017 | FASTENER | 1 | Not available in store | |||
| 019 | RUBBER RING 26 | 1 | Not available in store | |||
| 020 | 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 021 | 934301-3 | WING NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 934301-3 | WING NUT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 953106-2 | RIVET 0-5 | 2 | €0.56 | 1-4 weeks to ship | |
| 024 | 911263-2 | PAN HEAD SCREW M5X40 | 3 | €0.56 | 1-4 weeks to ship | |
| 911263-2 | PAN HEAD SCREW M5X40 | 3 | €0.56 | 1-4 weeks to ship | ||
| 025 | MOTOR HOUSING | 1 | Not available in store | |||
| 027 | 643600-9 | BRUSH HOLDER CAP 6-10 | 2 | €0.83 | 1-4 weeks to ship | |
| 029 | BAFFLE PLATE | 1 | Not available in store | |||
| 031 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 034 | FAN 72 | 1 | Not available in store | |||
| 035 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | SPONGE SHEET | 1 | Not available in store | |||
| 045 | 421142-1 | SWITCH COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 048 | SPRING PIN 6-36 | 1 | Not available in store | |||
| 050 | 251919-8 | CAP SQUARE NECK BOLT M6X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 911113-1 | PAN HEAD SCREW M4X10 WITH | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | SEPARATOR | 1 | Not available in store | |||
| 054 | 911143-2 | PAN HEAD SCREW M4X22 | 4 | €0.56 | 1-4 weeks to ship | |
| 057 | RELAY COVER | 1 | Not available in store | |||
| 400 | WRENCH 22 | 1 | Not available in store | |||
| 402 | 410047-0 | WRENCH HOLDER 5.6 | 1 | €0.56 | 1-4 weeks to ship | |
| 900 | RING 20 | 1 | Not available in store | |||
