BTW250
BTW250

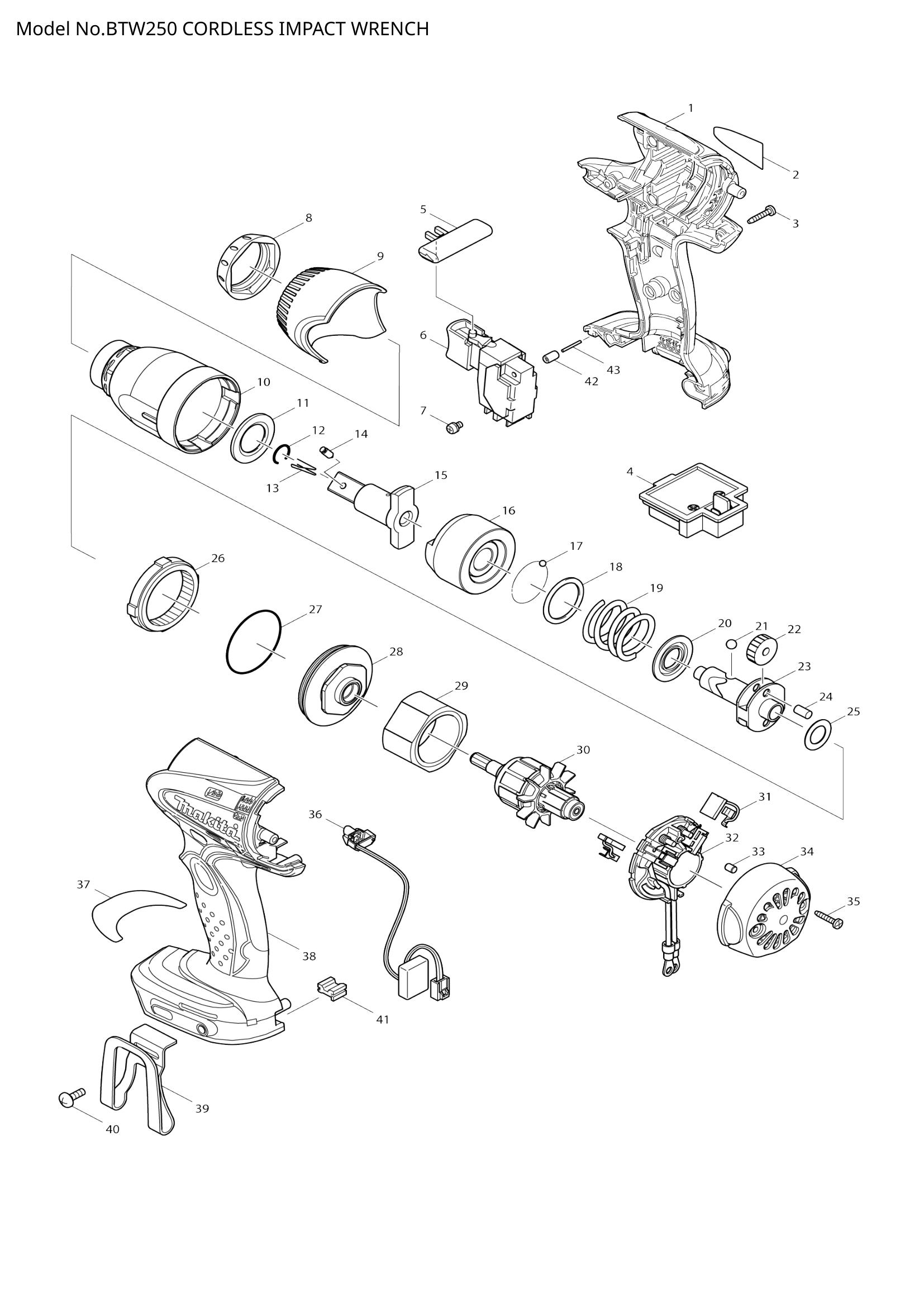

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 862816-9 | BTW250 NAME PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | €0.56 | 1-4 weeks to ship | |
| 005 | 419041-9 | F/R CHANGE LEVER | 1 | €1.11 | 1-4 weeks to ship | |
| 007 | 652045-0 | +PAN HEAD SCREW M3.5X5 | 2 | €0.56 | 1-4 weeks to ship | |
| 011 | 261116-8 | NYLON WASHER 18 | 1 | €1.11 | 1-4 weeks to ship | |
| 012 | 231907-1 | RING SPRING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 324706-9 | ANVIL | 1 | €44.53 | 1-4 weeks to ship | |
| 016 | 324703-5 | HAMMER | 1 | €22.26 | 1-4 weeks to ship | |
| 017 | 216001-0 | STEEL BALL 3.5 | 24 | €0.56 | 1-4 weeks to ship | |
| 018 | 267175-0 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 267766-7 | CUP WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 216011-7 | STEEL BALL 5.6 | 2 | €0.56 | 1-4 weeks to ship | |
| 023 | 324220-5 | SPINDLE | 1 | €27.83 | 1-4 weeks to ship | |
| 024 | 256253-1 | PIN 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 025 | 267212-0 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 227150-8 | INTERNAL GEAR 51 | 1 | €5.57 | 1-4 weeks to ship | |
| 027 | 213507-9 | O RING 40 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 158145-9 | BEARING BOX COMPLETE | 1 | €13.92 | 1-4 weeks to ship | |
| 029 | 638495-3 | YORK UNIT | 1 | €16.70 | 1-4 weeks to ship | |
| 033 | 263032-0 | RUBBER PIN 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 034 | 418981-8 | REAR COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 035 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 036 | 631631-0 | LIGHT CIRCUIT | 1 | €22.26 | 1-4 weeks to ship | |
| 040 | 251314-2 | + TRUSS HEAD SCREW M4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 424026-2 | CUSHION | 1 | €4.17 | 1-4 weeks to ship | |
| 042 | 263036-2 | RUBBER PIN 5 | 1 | €1.67 | 1-4 weeks to ship | |
| 043 | 268184-2 | PIN 1.5 | 1 | €0.56 | 1-4 weeks to ship |
