BTW200
BTW200

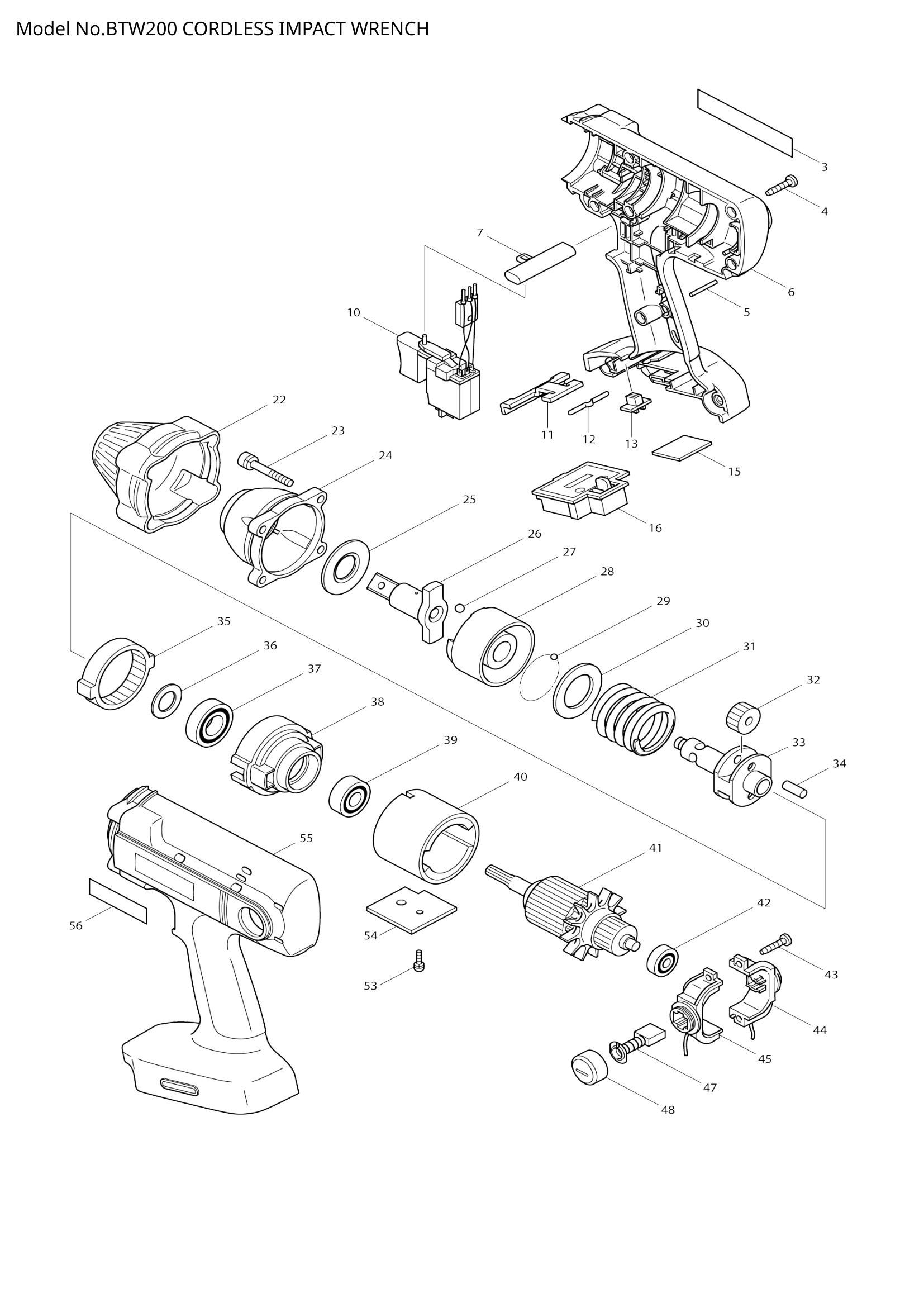

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 003 | NAME PLATE BTW200 | 1 | Not available in store | |||
| 004 | 265995-6 | TAPPING SCREW 4X18 | 9 | €0.56 | 1-4 weeks to ship | |
| 005 | 256176-3 | PIN 2.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 183257-9 | HOUSING SET | 1 | €135.25 | 1-4 weeks to ship | |
| 007 | 416079-5 | F/R CHANGE LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 010 | 651994-8 | SWITCH | 1 | €64.01 | 1-4 weeks to ship | |
| 011 | 344898-8 | SUPPORT PLATE | 1 | €1.39 | 1-4 weeks to ship | |
| 012 | 232198-7 | LEAF SPRING | 1 | €2.78 | 1-4 weeks to ship | |
| 013 | H/L CHANGE LEVER | 1 | Not available in store | |||
| 015 | PLATE | 1 | Not available in store | |||
| 022 | 421757-4 | BUMPER | 1 | €5.98 | 1-4 weeks to ship | |
| 023 | 266271-1 | HEX. SOCKET HEAD BOLT M5X35 | 4 | €1.11 | 1-4 weeks to ship | |
| 024 | 151981-2 | HAMMER CASE COMPLETE | 1 | €25.05 | 1-4 weeks to ship | |
| 025 | 267054-2 | FLAT WASHER 18 | 1 | €3.34 | 1-4 weeks to ship | |
| 027 | 216011-7 | STEEL BALL 5.6 | 2 | €0.56 | 1-4 weeks to ship | |
| 029 | 216008-6 | STEEL BALL 4 | 25 | €0.56 | 1-4 weeks to ship | |
| 030 | 267088-5 | FLAT WASHER 28 | 1 | €4.17 | 1-4 weeks to ship | |
| 031 | 233079-8 | COMPRESSION SPRING 30 | 1 | €5.29 | 1-4 weeks to ship | |
| 032 | 227005-7 | SPUR GEAR 24 | 2 | €4.45 | 1-4 weeks to ship | |
| 033 | SPINDLE | 1 | Not available in store | |||
| 034 | 256033-5 | PIN 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 035 | INTERNAL GEAR 55 | 1 | Not available in store | |||
| 036 | 267215-4 | FLAT WASHER 15 | 1 | €1.11 | 1-4 weeks to ship | |
| 037 | 211237-6 | BALL BEARING 6002LLB | 1 | €7.65 | 1-4 weeks to ship | |
| 038 | INTERNAL GEAR CASE | 1 | Not available in store | |||
| 039 | 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 040 | 638020-0 | YOKE UNIT | 1 | €16.70 | 1-4 weeks to ship | |
| 041 | 519063-0 | ARMATURE ASS'Y | 1 | €147.50 | 1-4 weeks to ship | |
| 042 | 211021-9 | BALL BEARING 607LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 043 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 044 | 643968-3 | BRUSH HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 045 | 643969-1 | BRUSH HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 048 | 643941-3 | BRUSH HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 053 | 911006-2 | PAN HEAD SCREW M3X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | 689070-8 | HEAT SINK | 1 | €2.78 | 1-4 weeks to ship | |
| 055 | 183257-9 | HOUSING SET | 1 | €135.25 | 1-4 weeks to ship | |
| 056 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
