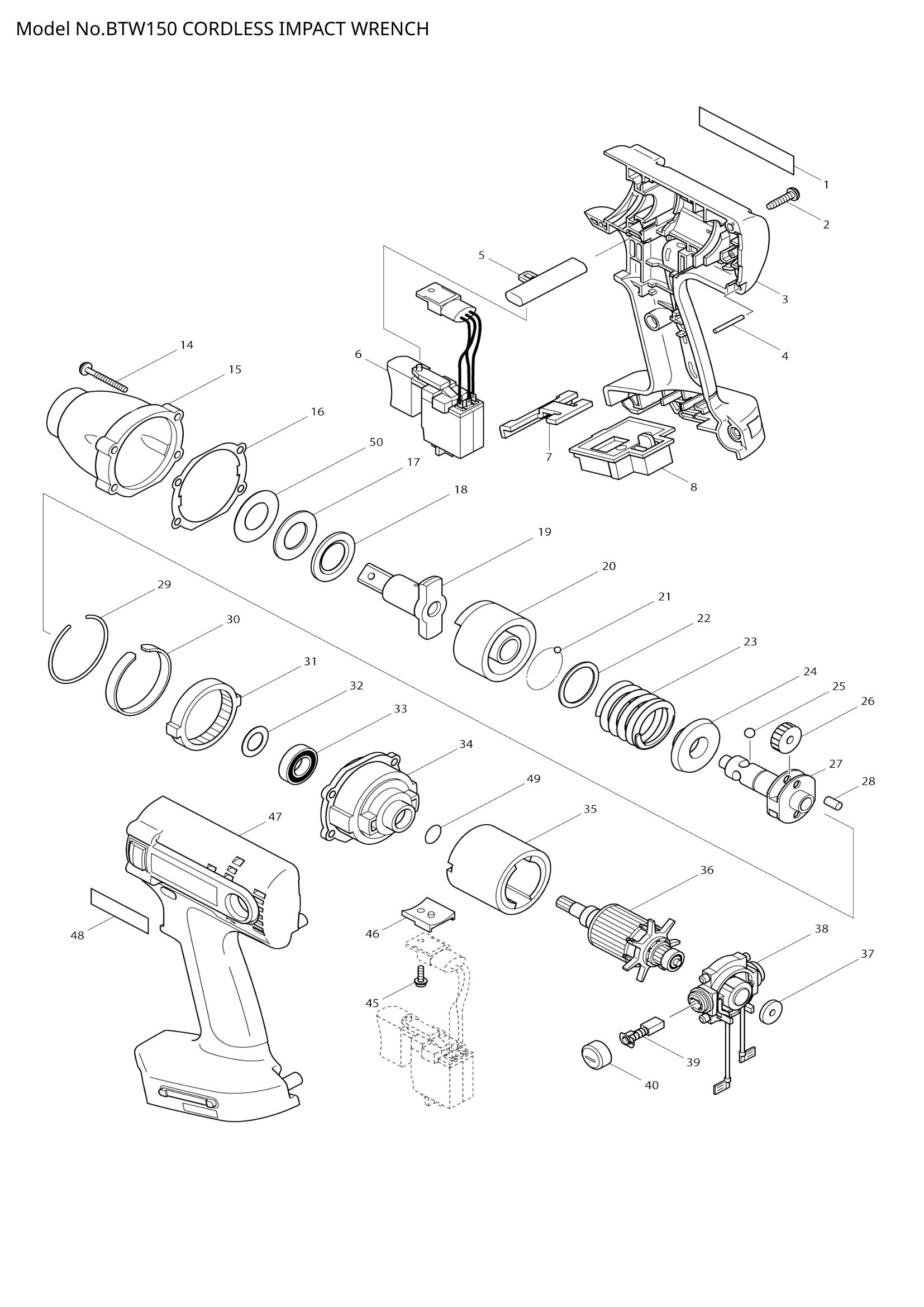

BTW150
BTW150
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | NAME PLATE BTW150 | 1 | Not available in store | |||
| 002 | 265995-6 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | |
| 004 | 256176-3 | PIN 2.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 416079-5 | F/R CHANGE LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 006 | SWITCH C3LA-1A-D | 1 | Not available in store | |||
| 007 | 344898-8 | SUPPORT PLATE | 1 | €1.39 | 1-4 weeks to ship | |
| 015 | HAMMER CASE COMPLETE | 1 | Not available in store | |||
| 016 | GASKET | 1 | Not available in store | |||
| 017 | RUBBER WASHER 18 | 1 | Not available in store | |||
| 018 | FLAT WASHER 18 | 1 | Not available in store | |||
| 019 | ANVIL | 1 | Not available in store | |||
| 020 | HAMMER | 1 | Not available in store | |||
| 021 | 216001-0 | STEEL BALL 3.5 | 25 | €0.56 | 1-4 weeks to ship | |
| 022 | 267175-0 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | COMPRESSION SPRING 25 | 1 | Not available in store | |||
| 024 | 267759-4 | CUP WASHER 14 | 1 | €1.39 | 1-4 weeks to ship | |
| 025 | 216011-7 | STEEL BALL 5.6 | 2 | €0.56 | 1-4 weeks to ship | |
| 027 | 324090-2 | SPINDLE | 1 | €55.66 | 1-4 weeks to ship | |
| 029 | 233910-8 | RING SPRING 43 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 344991-8 | C-SLEEVE 45 | 1 | €1.39 | 1-4 weeks to ship | |
| 031 | 227001-5 | INTERNAL GEAR 51 | 1 | €2.78 | 1-4 weeks to ship | |
| 032 | 267212-0 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 211140-1 | BALL BEARING 6901LLB | 1 | €11.13 | 1-4 weeks to ship | |
| 034 | INTERNAL GEAR CASE | 1 | Not available in store | |||
| 035 | YOKE UNIT | 1 | Not available in store | |||
| 036 | ARMATURE | 1 | Not available in store | |||
| 037 | RUBBER CAP 12 | 1 | Not available in store | |||
| 040 | 643933-2 | BRUSH HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 045 | TAPPING SCREW ST3X10 | 1 | Not available in store | |||
| 046 | 689106-3 | FET SPACER | 1 | €2.78 | 1-4 weeks to ship | |
| 048 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | O RING 11 | 1 | Not available in store | |||
| 050 | FLAT WASHER 18 | 1 | Not available in store | |||
