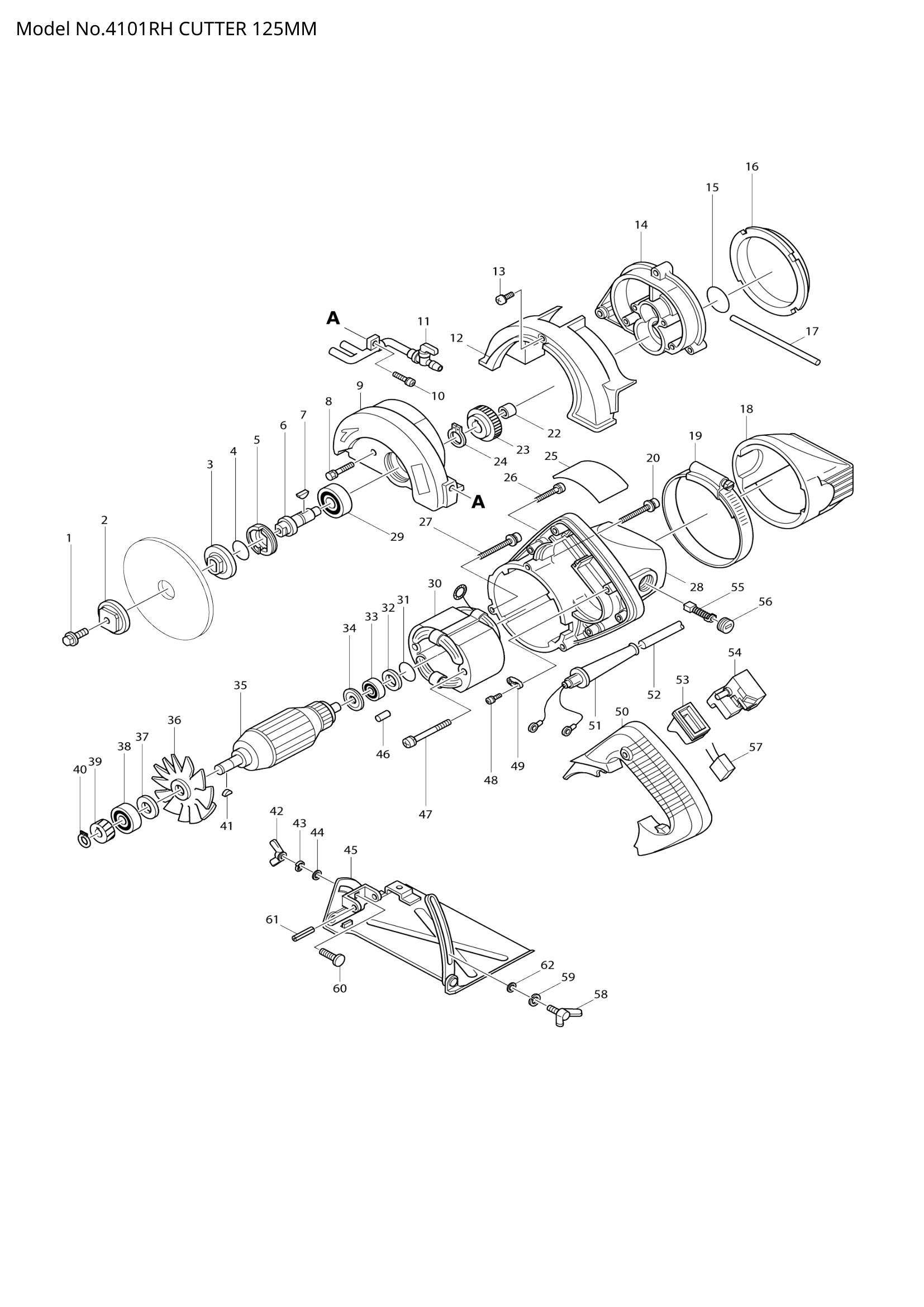

4101RH
4101RH
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266133-3 | HEX. SOCKET HEAD BOLT M6X20 | 1 | €0.83 | 1-4 weeks to ship | |
| 266133-3 | HEX. SOCKET HEAD BOLT M6X20 | 1 | €0.83 | 1-4 weeks to ship | ||
| 002 | 224081-2 | OUTER FLANGE 36 | 1 | €4.45 | 1-4 weeks to ship | |
| 224081-2 | OUTER FLANGE 36 | 1 | €4.45 | 1-4 weeks to ship | ||
| 003 | 224080-4 | INNER FLANGE 36 | 1 | €16.70 | 1-4 weeks to ship | |
| 224080-4 | INNER FLANGE 36 | 1 | €16.70 | 1-4 weeks to ship | ||
| 004 | 213255-0 | O RING 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 213255-0 | O RING 18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 005 | 285815-8 | BEARING RETAINER 19-33 | 1 | €2.78 | 1-4 weeks to ship | |
| 285815-8 | BEARING RETAINER 19-33 | 1 | €2.78 | 1-4 weeks to ship | ||
| 006 | 321197-5 | SPINDLE | 1 | €4.17 | 1-4 weeks to ship | |
| 321197-5 | SPINDLE | 1 | €4.17 | 1-4 weeks to ship | ||
| 007 | 254001-2 | WOODRUFF KEY 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 254001-2 | WOODRUFF KEY 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 008 | + HEX. BOLT M4X25 | 4 | Not available in store | |||
| + HEX. BOLT M4X25 | 4 | Not available in store | ||||
| 010 | 911123-8 | PAN HEAD SCREW M4X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 911123-8 | PAN HEAD SCREW M4X14 | 1 | €0.56 | 1-4 weeks to ship | ||
| 012 | COVER B | 1 | Not available in store | |||
| COVER B | 1 | Not available in store | ||||
| 013 | 911203-0 | PAN HEAD SCREW M5X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 911203-0 | PAN HEAD SCREW M5X8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 014 | GEAR HOUSING COMPLETE | 1 | Not available in store | |||
| GEAR HOUSING COMPLETE | 1 | Not available in store | ||||
| 015 | 213407-3 | O RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 213407-3 | O RING 26 | 1 | €0.56 | 1-4 weeks to ship | ||
| 016 | FAN GUIDE | 1 | Not available in store | |||
| FAN GUIDE | 1 | Not available in store | ||||
| 017 | SEAL RUBBER | 1 | Not available in store | |||
| SEAL RUBBER | 1 | Not available in store | ||||
| 018 | COVER A | 1 | Not available in store | |||
| COVER A | 1 | Not available in store | ||||
| 019 | CLAMP 90 | 1 | Not available in store | |||
| CLAMP 90 | 1 | Not available in store | ||||
| 020 | 911258-5 | PAN HEAD SCREW M5X35 | 1 | €0.56 | 1-4 weeks to ship | |
| 911258-5 | PAN HEAD SCREW M5X35 | 1 | €0.56 | 1-4 weeks to ship | ||
| 911258-5 | PAN HEAD SCREW M5X35 | 1 | €0.56 | 1-4 weeks to ship | ||
| 911258-5 | PAN HEAD SCREW M5X35 | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 212004-2 | NEEDLE BEARING 810 | 1 | €5.57 | 1-4 weeks to ship | |
| 212004-2 | NEEDLE BEARING 810 | 1 | €5.57 | 1-4 weeks to ship | ||
| 023 | 226420-2 | HELICAL GEAR 42 | 1 | €13.92 | 1-4 weeks to ship | |
| 226420-2 | HELICAL GEAR 42 | 1 | €13.92 | 1-4 weeks to ship | ||
| 024 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 025 | NAME PLATE 4101RH | 1 | Not available in store | |||
| NAME PLATE 4101RH | 1 | Not available in store | ||||
| 026 | 911148-2 | PAN HEAD SCREW M4X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 911148-2 | PAN HEAD SCREW M4X25 | 4 | €0.56 | 1-4 weeks to ship | ||
| 027 | 911263-2 | PAN HEAD SCREW M5X40 | 2 | €0.56 | 1-4 weeks to ship | |
| 911263-2 | PAN HEAD SCREW M5X40 | 2 | €0.56 | 1-4 weeks to ship | ||
| 911263-2 | PAN HEAD SCREW M5X40 | 2 | €0.56 | 1-4 weeks to ship | ||
| 911263-2 | PAN HEAD SCREW M5X40 | 2 | €0.56 | 1-4 weeks to ship | ||
| 028 | 150927-5 | MOTOR HOUSING COMPLETE | 1 | €44.53 | 1-4 weeks to ship | |
| 150927-5 | MOTOR HOUSING COMPLETE | 1 | €44.53 | 1-4 weeks to ship | ||
| 029 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 030 | 522843-5 | FIELD ASS'Y 220V | 1 | €52.88 | 1-4 weeks to ship | |
| 522843-5 | FIELD ASS'Y 220V | 1 | €52.88 | 1-4 weeks to ship | ||
| 031 | 213262-3 | O RING 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 213262-3 | O RING 18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 032 | 253192-6 | FLAT WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 253192-6 | FLAT WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | ||
| 033 | 211033-2 | BALL BEARING 608LB | 1 | €4.17 | 1-4 weeks to ship | |
| 211033-2 | BALL BEARING 608LB | 1 | €4.17 | 1-4 weeks to ship | ||
| 034 | 681613-2 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681613-2 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 035 | 516343-5 | ARMATURE ASS'Y 220V | 1 | €61.23 | 1-4 weeks to ship | |
| 516343-5 | ARMATURE ASS'Y 220V | 1 | €61.23 | 1-4 weeks to ship | ||
| 036 | 240007-6 | FAN 68 | 1 | €4.45 | 1-4 weeks to ship | |
| 240007-6 | FAN 68 | 1 | €4.45 | 1-4 weeks to ship | ||
| 037 | 253741-9 | FLAT WASHER 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 253741-9 | FLAT WASHER 9 | 1 | €0.56 | 1-4 weeks to ship | ||
| 039 | 226419-7 | HELICAL GEAR 19 | 1 | €11.13 | 1-4 weeks to ship | |
| 226419-7 | HELICAL GEAR 19 | 1 | €11.13 | 1-4 weeks to ship | ||
| 040 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 961004-6 | RETAINING RING (EXT) S-8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 041 | 254002-0 | WOODRUFF KEY 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 254002-0 | WOODRUFF KEY 3 | 1 | €0.56 | 1-4 weeks to ship | ||
| 042 | WING NUT M6 | 1 | Not available in store | |||
| WING NUT M6 | 1 | Not available in store | ||||
| 044 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 045 | 168216-4 | BASE | 1 | €41.19 | 1-4 weeks to ship | |
| 168216-4 | BASE | 1 | €41.19 | 1-4 weeks to ship | ||
| 046 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 048 | 911133-5 | PAN HEAD SCREW M4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 911133-5 | PAN HEAD SCREW M4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 050 | HANDLE COVER COMPLETE | 1 | Not available in store | |||
| HANDLE COVER COMPLETE | 1 | Not available in store | ||||
| 052 | 699005-1 | POWER SUPPLY CORD UNIT | 1 | €577.33 | 1-4 weeks to ship | |
| 699005-1 | POWER SUPPLY CORD UNIT | 1 | €577.33 | 1-4 weeks to ship | ||
| 053 | 421329-5 | DUST COVER | 1 | €1.11 | 1-4 weeks to ship | |
| 421329-5 | DUST COVER | 1 | €1.11 | 1-4 weeks to ship | ||
| 058 | 251886-7 | WING BOLT M6X10 | 1 | €2.78 | 1-4 weeks to ship | |
| 251886-7 | WING BOLT M6X10 | 1 | €2.78 | 1-4 weeks to ship | ||
| 060 | 251919-8 | CAP SQUARE NECK BOLT M6X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 251919-8 | CAP SQUARE NECK BOLT M6X20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 061 | 951219-3 | SPRING PIN 6-32 | 1 | €2.09 | 1-4 weeks to ship | |
| 951219-3 | SPRING PIN 6-32 | 1 | €2.09 | 1-4 weeks to ship | ||
| 062 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 063 | 654532-5 | TERMINAL BLOCK 1P | 1 | €1.11 | 1-4 weeks to ship | |
| 654532-5 | TERMINAL BLOCK 1P | 1 | €1.11 | 1-4 weeks to ship | ||
| 064 | LEAD UNIT | 1 | Not available in store | |||
| LEAD UNIT | 1 | Not available in store | ||||
| 065 | 652014-1 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 652014-1 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | ||
