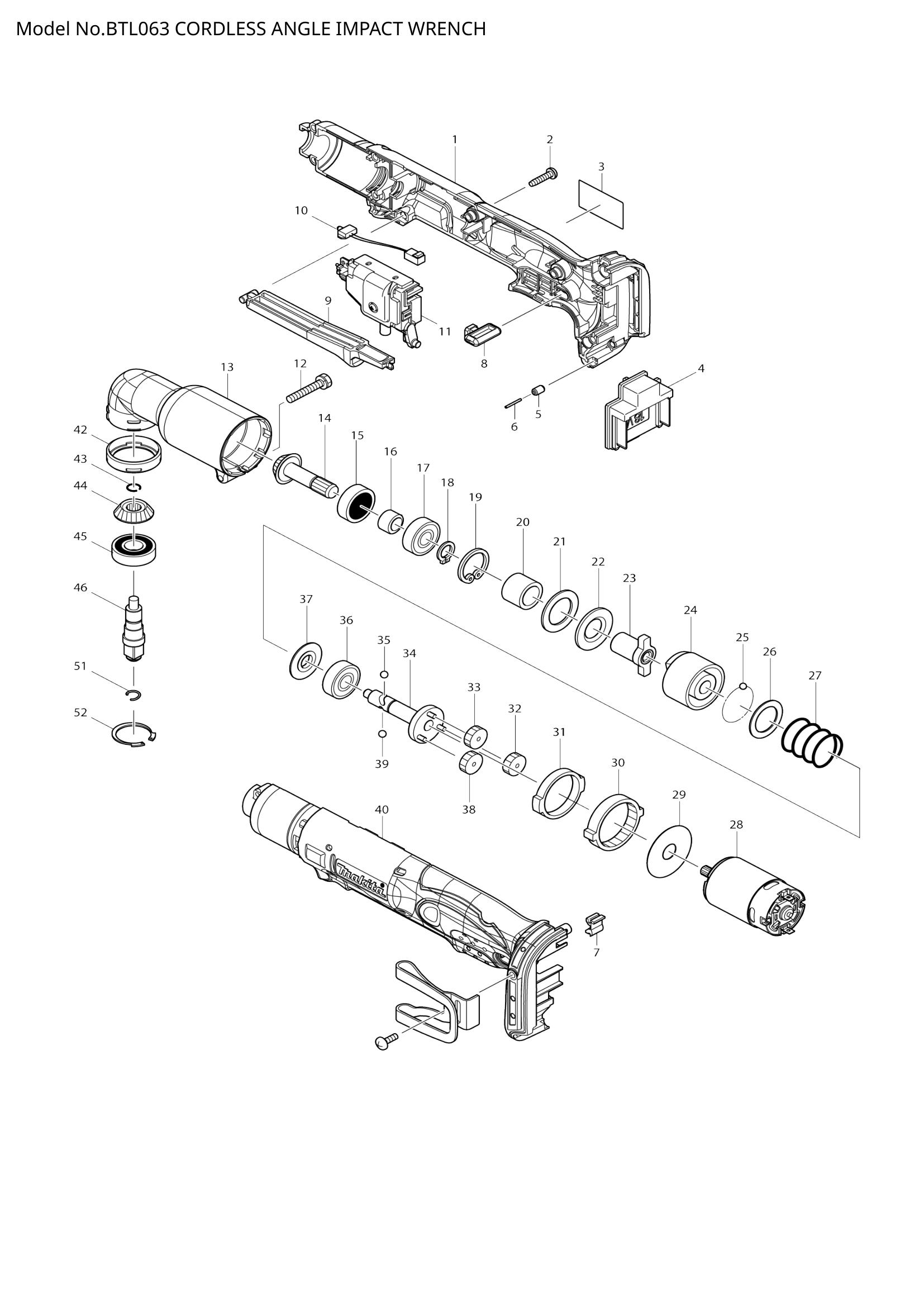

BTL063
BTL063
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 265995-6 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | |
| 003 | BTL063 NAME PLATE | 1 | Not available in store | |||
| 005 | 263036-2 | RUBBER PIN 5 | 1 | €1.67 | 1-4 weeks to ship | |
| 006 | 268184-2 | PIN 1.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 424026-2 | CUSHION | 1 | €4.17 | 1-4 weeks to ship | |
| 008 | 450126-2 | FR CHANGE LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 009 | 450125-4 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 010 | 631778-0 | LED CIRCUIT | 1 | €11.13 | 1-4 weeks to ship | |
| 012 | 265409-5 | + HEX. BOLT M5X30 | 1 | €1.39 | 1-4 weeks to ship | |
| 013 | 152461-1 | ANGLE HEAD COMPLETE | 1 | €52.88 | 1-4 weeks to ship | |
| 015 | 211064-1 | BALL BEARING 6000 | 1 | €7.65 | 1-4 weeks to ship | |
| 016 | 257660-1 | SLEEVE 10 | 1 | €1.67 | 1-4 weeks to ship | |
| 017 | 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 018 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 962105-3 | RETAINING RING R-26 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 257662-7 | SLEEVE 15 | 1 | €5.57 | 1-4 weeks to ship | |
| 021 | 261095-0 | RUBBER WASHER 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 267120-5 | FLAT WASHER 15 | 1 | €2.78 | 1-4 weeks to ship | |
| 023 | 322689-7 | ANVIL | 1 | €48.42 | 1-4 weeks to ship | |
| 024 | 322688-9 | HAMMER | 1 | €34.51 | 1-4 weeks to ship | |
| 025 | 216001-0 | STEEL BALL 3.5 | 22 | €0.56 | 1-4 weeks to ship | |
| 026 | 267121-3 | FLAT WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 233107-9 | COMPRESSION SPRING 22 | 1 | €1.39 | 1-4 weeks to ship | |
| 029 | 267053-4 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 226280-2 | INTERNAL GEAR 69 | 1 | €21.57 | 1-4 weeks to ship | |
| 031 | 257187-1 | RING 32 | 1 | €2.78 | 1-4 weeks to ship | |
| 032 | 226279-7 | SPUR GEAR 29 | 1 | €2.78 | 1-4 weeks to ship | |
| 033 | 226279-7 | SPUR GEAR 29 | 1 | €2.78 | 1-4 weeks to ship | |
| 034 | 154416-2 | SPINDLE COMPLETE | 1 | €31.73 | 1-4 weeks to ship | |
| 035 | 216002-8 | STEEL BALL 4.8 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | 211064-1 | BALL BEARING 6000 | 1 | €7.65 | 1-4 weeks to ship | |
| 037 | 322719-4 | WASHER 10 | 1 | €4.17 | 1-4 weeks to ship | |
| 038 | 226279-7 | SPUR GEAR 29 | 1 | €2.78 | 1-4 weeks to ship | |
| 039 | 216002-8 | STEEL BALL 4.8 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 424044-0 | RUBBER RING 32 | 1 | €2.78 | 1-4 weeks to ship | |
| 043 | 231990-8 | RING SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 046 | 324026-1 | SPINDLE | 1 | €22.96 | 1-4 weeks to ship | |
| 051 | 231964-9 | RING SPRING 7 | 1 | €1.39 | 1-4 weeks to ship | |
| 052 | 962116-8 | RETAINING RING R-28 | 1 | €0.83 | 1-4 weeks to ship | |
