BTD140
BTD140

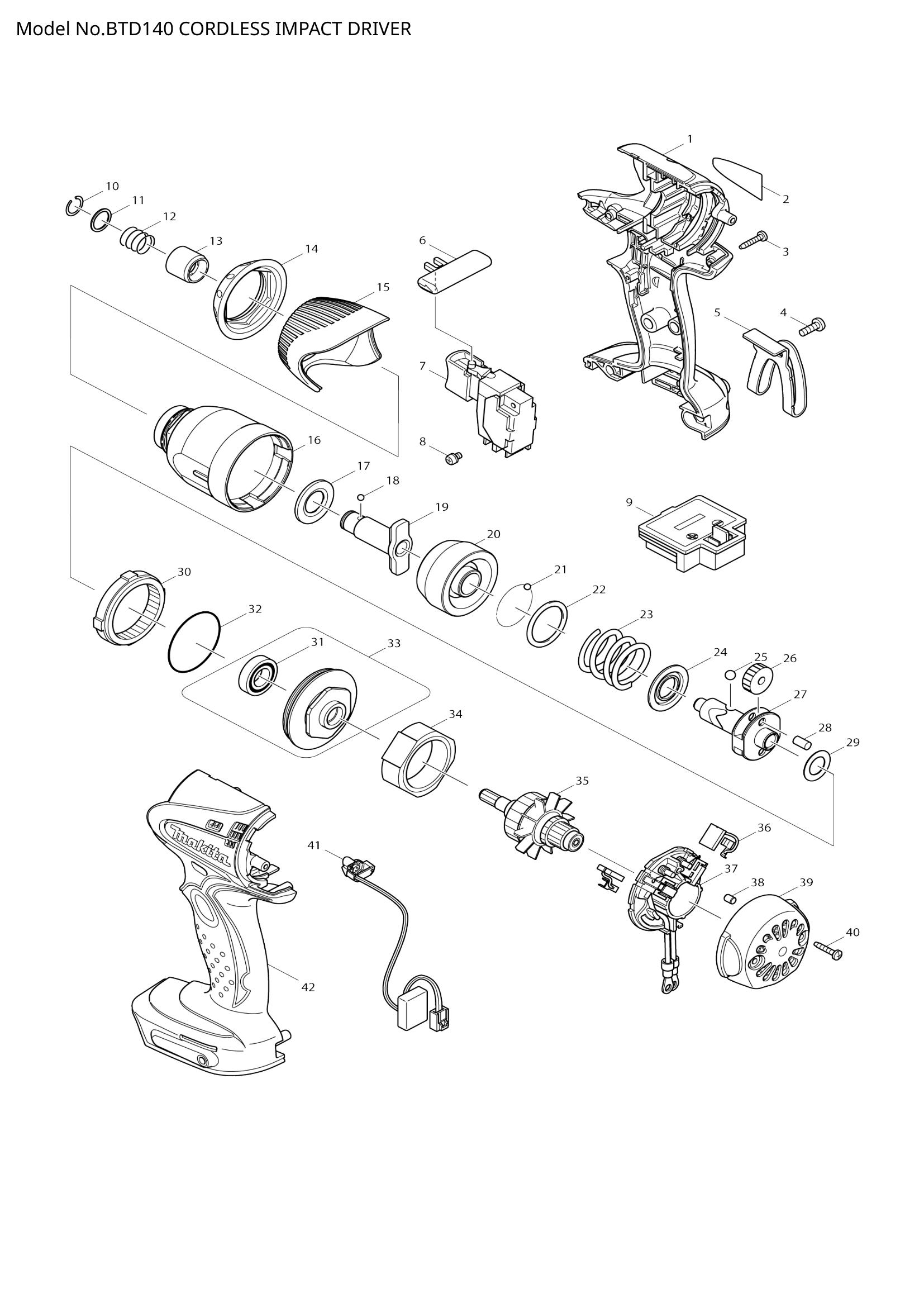

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 004 | 251314-2 | + SCREW M4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 419041-9 | F/R CHANGE LEVER | 1 | €1.11 | 1-4 weeks to ship | |
| 007 | 650564-0 | SWITCH TG553FSB-1 | 1 | €29.22 | 1-4 weeks to ship | |
| 008 | 652045-0 | +PAN HEAD SCREW M3.5X5 | 2 | €0.56 | 1-4 weeks to ship | |
| 010 | 231951-8 | RING SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 267085-1 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 233005-7 | COMPRESSION SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 324420-7 | SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 017 | 261108-7 | NYLON WASHER 14 | 1 | €0.70 | 1-4 weeks to ship | |
| 019 | 324432-0 | ANVIL M | 1 | €11.13 | 1-4 weeks to ship | |
| 020 | 324583-9 | HAMMER | 1 | €22.26 | 1-4 weeks to ship | |
| 022 | 267175-0 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 233430-2 | COMPRESSION SPRING 24 | 1 | €1.67 | 1-4 weeks to ship | |
| 024 | 267766-7 | CUP WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 324552-0 | SPINDLE | 1 | €36.18 | 1-4 weeks to ship | |
| 028 | 256253-1 | PIN 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 029 | 267212-0 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 227150-8 | INTERNAL GEAR 51 | 1 | €5.57 | 1-4 weeks to ship | |
| 032 | 213507-9 | O RING 40 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 154769-9 | BEARING BOX COMPLETE | 1 | €13.92 | 1-4 weeks to ship | |
| 038 | 263032-0 | RUBBER PIN 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 039 | 418981-8 | REAR COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 418982-6 | REAR COVER | 1 | €8.35 | 1-4 weeks to ship | ||
| 041 | 631693-8 | LIGHT CIRCUIT | 1 | €22.26 | 1-4 weeks to ship |
