BTD104
BTD104

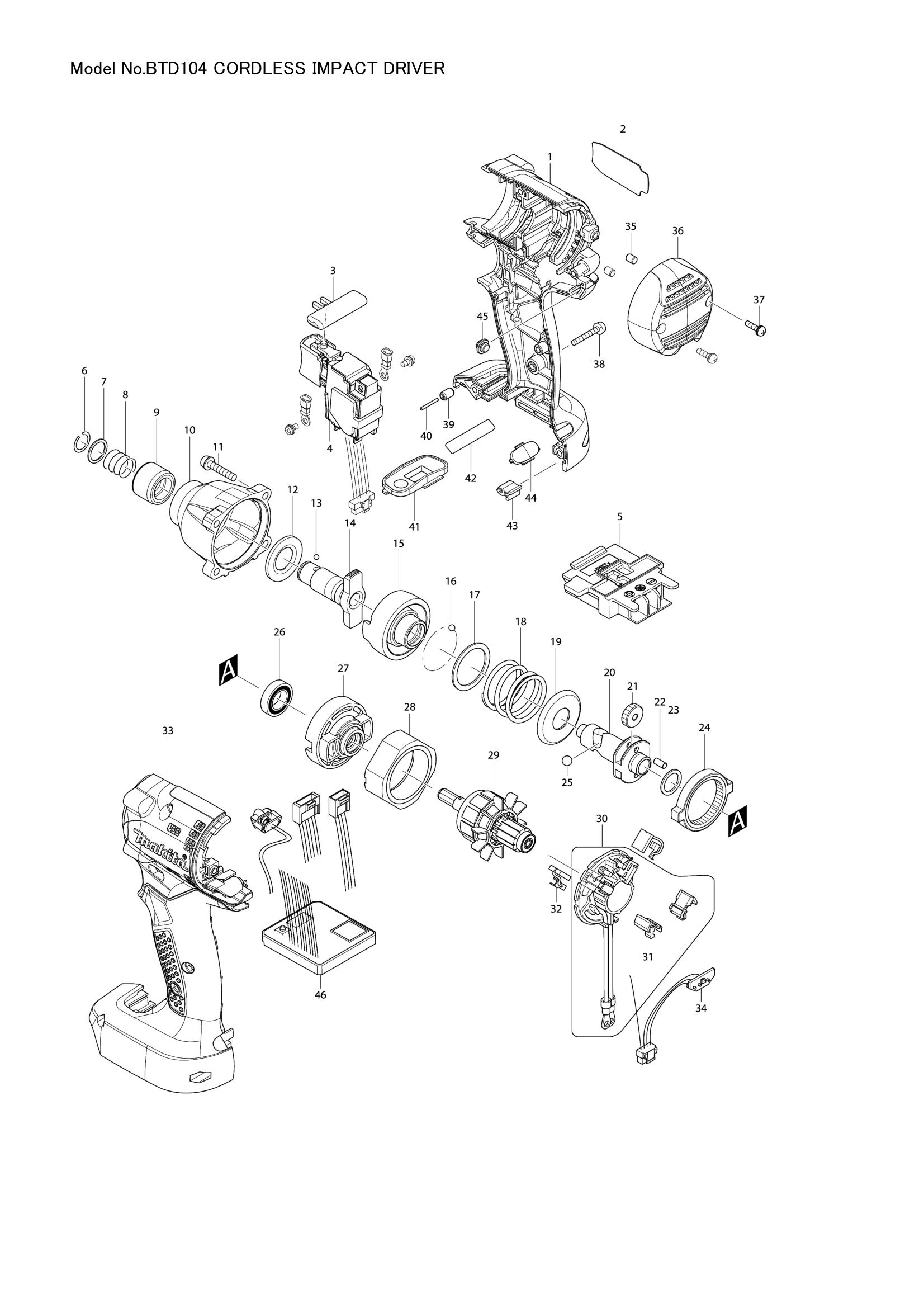

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | BTD104 NAME PLATE | 1 | Not available in store | |||
| 003 | 419041-9 | F/R CHANGE LEVER | 1 | €1.11 | 1-4 weeks to ship | |
| 005 | TERMINAL | 1 | Not available in store | |||
| 006 | 231951-8 | RING SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 267085-1 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 233005-7 | COMPRESSION SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | SLEEVE | 1 | Not available in store | |||
| 011 | 265145-3 | + PAN HEAD SCREW M4X22 | 4 | €0.56 | 1-4 weeks to ship | |
| 012 | 261108-7 | NYLON WASHER 14 | 1 | €0.70 | 1-4 weeks to ship | |
| 013 | 216001-0 | STEEL BALL 3.5 | 2 | €0.56 | 1-4 weeks to ship | |
| 015 | HAMMER C | 1 | Not available in store | |||
| 016 | 216001-0 | STEEL BALL 3.5 | 24 | €0.56 | 1-4 weeks to ship | |
| 017 | 267175-0 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | COMPRESSION SPRING 25 | 1 | Not available in store | |||
| 019 | CUP WASHER 14 | 1 | Not available in store | |||
| 020 | SPINDLE | 1 | Not available in store | |||
| 021 | SPUR GEAR 16 | 2 | Not available in store | |||
| 022 | 268217-3 | PIN 3.5 | 2 | €0.56 | 1-4 weeks to ship | |
| 023 | 267104-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 216011-7 | STEEL BALL 5.6 | 2 | €0.56 | 1-4 weeks to ship | |
| 026 | 211136-2 | BALL BEARING 6801LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 027 | INTERNAL GEAR CASE | 1 | Not available in store | |||
| 028 | 638396-5 | YOKE UNIT | 1 | €9.74 | 1-4 weeks to ship | |
| 034 | LED CIRCUIT | 1 | Not available in store | |||
| 035 | 263032-0 | RUBBER PIN 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 038 | 265095-2 | PAN HEAD SCREW M3X20 | 7 | €0.56 | 1-4 weeks to ship | |
| 039 | 263036-2 | RUBBER PIN 5 | 1 | €1.67 | 1-4 weeks to ship | |
| 040 | 268184-2 | PIN 1.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | BTD104 SERIAL NO. LABEL | 1 | Not available in store | |||
| 043 | 424517-3 | CUSHION | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | ID PLATE RED | 1 | Not available in store | |||
| 045 | 450522-4 | LENS | 1 | €0.56 | 1-4 weeks to ship | |
