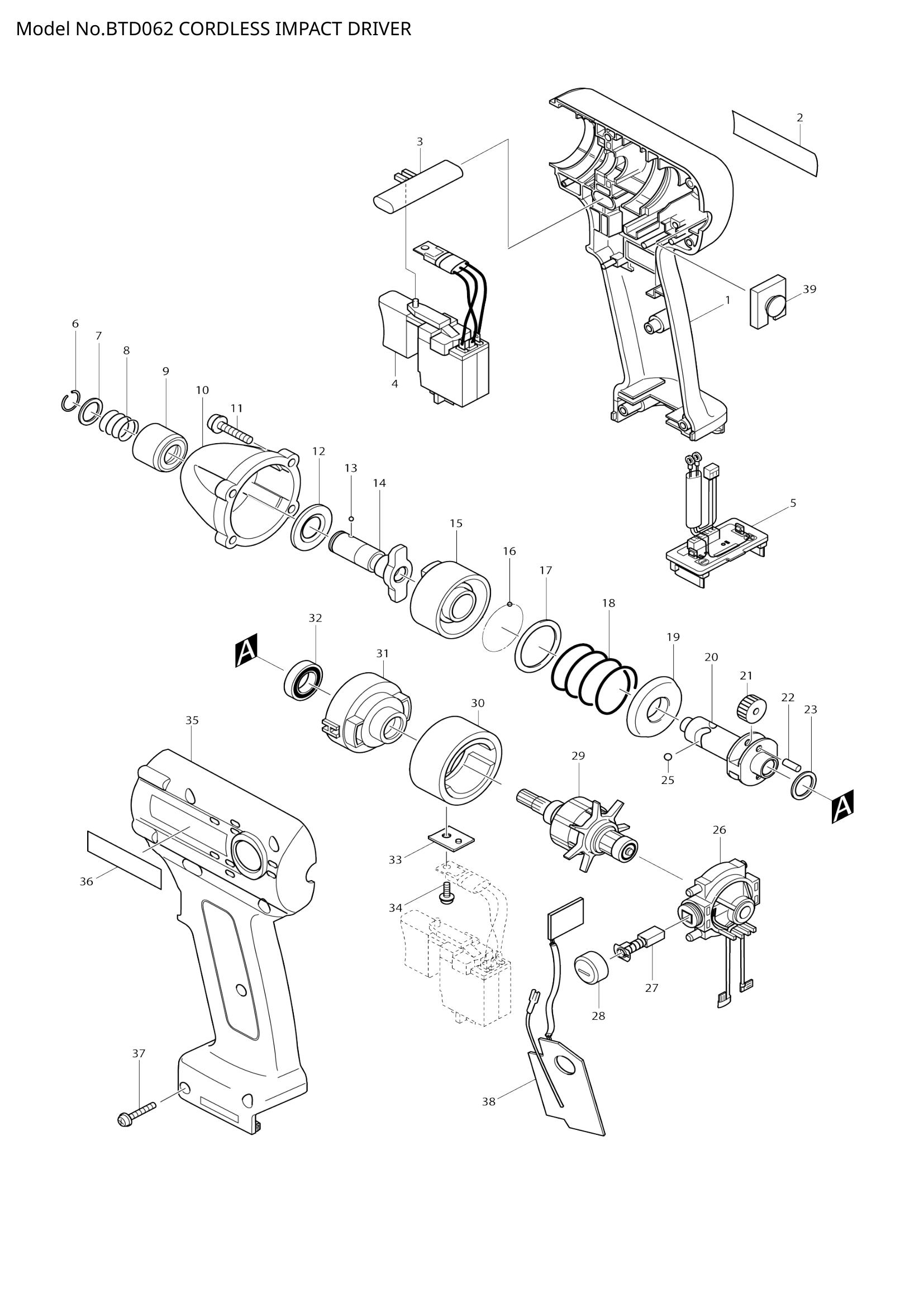

BTD062
BTD062
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | HOUSING SET | 1 | Not available in store | |||
| 002 | NAME PLATE BTD062 | 1 | Not available in store | |||
| 003 | 417283-9 | F/R CHANGE LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 231965-7 | RING SPRING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 267143-3 | FLAT WASHER 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 233005-7 | COMPRESSION SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 162218-2 | SLEEVE | 1 | €11.13 | 1-4 weeks to ship | |
| 010 | HAMMER CASE COMPLETE | 1 | Not available in store | |||
| 012 | 261117-6 | NYLON WASHER 12 | 1 | €0.83 | 1-4 weeks to ship | |
| 013 | 216019-1 | STEEL BALL 3 | 2 | €0.56 | 1-4 weeks to ship | |
| 014 | 324054-6 | ANVIL M | 1 | €36.18 | 1-4 weeks to ship | |
| 015 | 324033-4 | HAMMER B | 1 | €43.00 | 1-4 weeks to ship | |
| 017 | 267175-0 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | COMPRESSION SPRING 24 | 1 | Not available in store | |||
| 019 | SPRING HOLDER | 1 | Not available in store | |||
| 020 | 324051-2 | SPINDLE B | 1 | €58.16 | 1-4 weeks to ship | |
| 021 | SPUR GEAR 16 | 2 | Not available in store | |||
| 022 | PIN 3.5 | 2 | Not available in store | |||
| 023 | 267104-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 216011-7 | STEEL BALL 5.6 | 2 | €0.56 | 1-4 weeks to ship | |
| 028 | 643933-2 | BRUSH HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 029 | 619058-4 | ARMATURE | 1 | €39.24 | 1-4 weeks to ship | |
| 030 | 632966-2 | YOKE UNIT | 1 | €48.42 | 1-4 weeks to ship | |
| 032 | 211136-2 | BALL BEARING 6801LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 033 | 689096-0 | FET SPACER | 1 | €0.83 | 1-4 weeks to ship | |
| 034 | 266170-7 | TAPPING SCREW ST3X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | HOUSING SET | 1 | Not available in store | |||
| 036 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | CONTROLLER | 1 | Not available in store | |||
| 039 | LENS | 1 | Not available in store | |||
| 040 | INTERNAL GEAR 39 | 1 | Not available in store | |||
| 041 | INTERNAL GEAR CASE | 1 | Not available in store | |||
