4100KB
4100KB

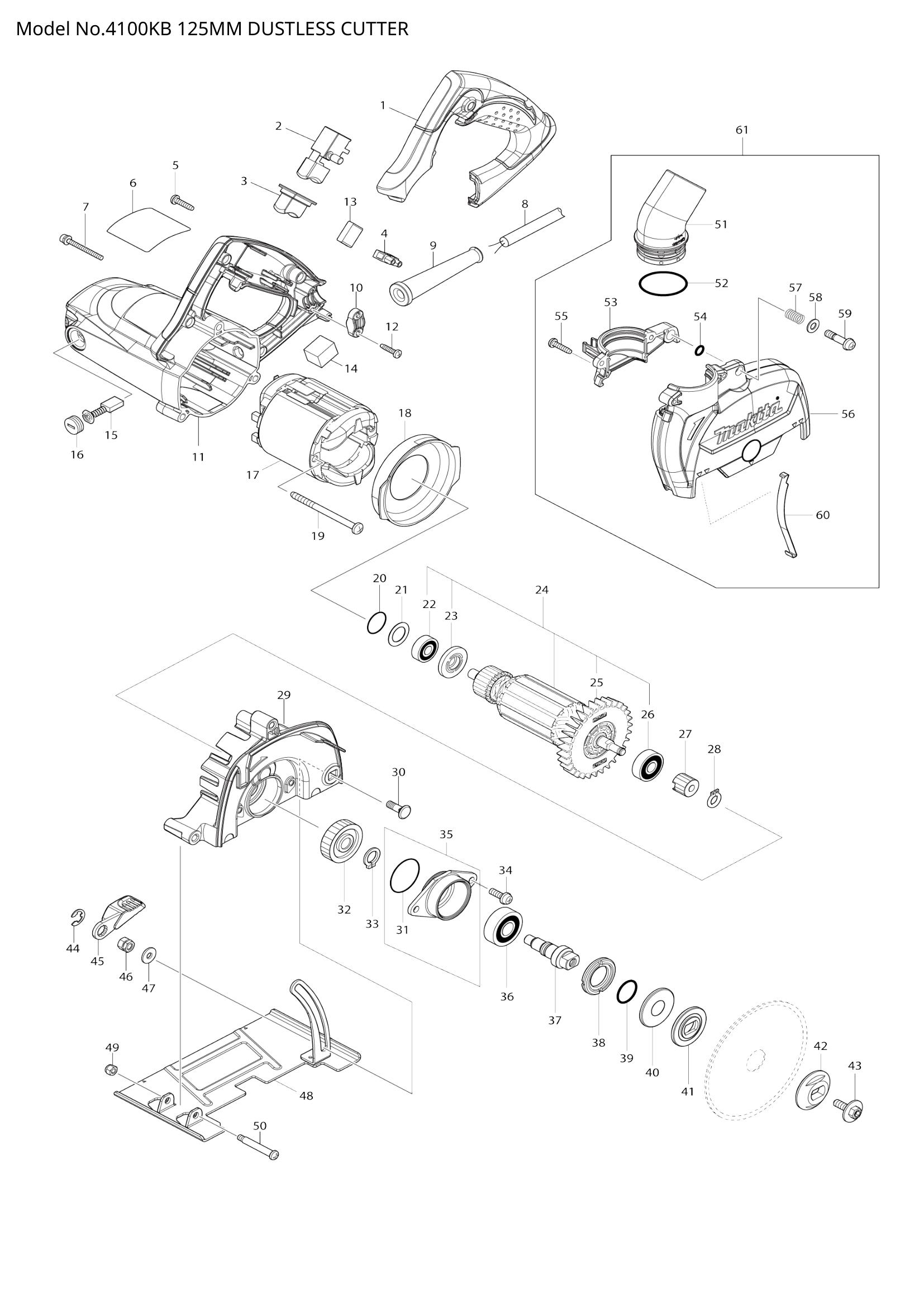

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | HANDLE COVER | 1 | Not available in store | |||
| 002 | SWITCH SGES115C-3 | 1 | Not available in store | |||
| 003 | 424585-6 | DUST COVER | 1 | €0.46 | 1-4 weeks to ship | |
| 004 | 654532-5 | TERMINAL BLOCK 1P | 1 | €1.11 | 1-4 weeks to ship | |
| 005 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 006 | 4100KB NAME PLATE | 1 | Not available in store | |||
| 007 | 911263-2 | PAN HEAD SCREW M5X40 | 3 | €0.56 | 1-4 weeks to ship | |
| 911263-2 | PAN HEAD SCREW M5X40 | 3 | €0.56 | 1-4 weeks to ship | ||
| 008 | 665865-3 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €16.70 | 1-4 weeks to ship | |
| 009 | 682540-6 | CORD GUARD 9.3-90 | 1 | €1.39 | 1-4 weeks to ship | |
| 010 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | MOTOR HOUSING COMPLETE | 1 | Not available in store | |||
| 012 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 013 | 645200-1 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 014 | SPONGE | 1 | Not available in store | |||
| 016 | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | €0.56 | 1-4 weeks to ship | |
| 017 | FIELD ASSY 220V | 1 | Not available in store | |||
| 018 | BUFFLE PLATE | 1 | Not available in store | |||
| 019 | 266038-7 | TAPPING SCREW 5X70 | 2 | €2.09 | 1-4 weeks to ship | |
| 020 | 213262-3 | O RING 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 253192-6 | FLAT WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | BALL BEARING 608LLU | 1 | Not available in store | |||
| 023 | 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 024 | ARMATURE ASS'Y 240V | 1 | Not available in store | |||
| 025 | FAN 70 | 1 | Not available in store | |||
| 026 | 211092-6 | BALL BEARING 629DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 027 | HELICAL GEAR 17 | 1 | Not available in store | |||
| 028 | 961002-0 | RETAINING RING S-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 144781-7 | GEAR HOUSING COMPLETE | 1 | €85.65 | 1-4 weeks to ship | |
| 030 | 251586-9 | FLAT HEAD SQUARE NECK BOLT | 1 | €2.12 | 1-4 weeks to ship | |
| 031 | O RING 30 | 1 | Not available in store | |||
| 032 | HELICAL GEAR 44 | 1 | Not available in store | |||
| 033 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 035 | 135948-8 | BEARING BOX ASSEMBLY | 1 | €4.31 | 1-4 weeks to ship | |
| 036 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 037 | SPINDLE | 1 | Not available in store | |||
| 038 | BEARING RETAINER 19-33 | 1 | Not available in store | |||
| 039 | 213279-6 | O RING 18 | 1 | €0.83 | 1-4 weeks to ship | |
| 040 | 253397-8 | CUP WASHER 15 | 1 | €4.68 | 1-4 weeks to ship | |
| 041 | INNER FLANGE 36 | 1 | Not available in store | |||
| 042 | OUTER FLANGE 36 | 1 | Not available in store | |||
| 043 | HEX. SOCKET HEX. BOLT M6X18 | 1 | Not available in store | |||
| 044 | 257982-9 | BOW STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 271443-5 | LEVER 49 | 1 | €6.07 | 1-4 weeks to ship | |
| 046 | 264103-6 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 253111-2 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 161775-7 | BASE | 1 | €5.57 | 1-4 weeks to ship | |
| 049 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | + PAN HEAD SCREW M5 | 1 | Not available in store | |||
| 051 | 416741-2 | ELBOW | 1 | €7.24 | 1-4 weeks to ship | |
| 052 | 213460-9 | O RING 35 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | DUST COVER R | 1 | Not available in store | |||
| 054 | 213005-3 | O RING 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 055 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 056 | DUST COVER L | 1 | Not available in store | |||
| 057 | 233267-7 | COMPRESSION SPRING 7 | 1 | €0.83 | 1-4 weeks to ship | |
| 058 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 059 | PAN HEAD SCREW M6X26 | 1 | Not available in store | |||
| 060 | PLATE | 1 | Not available in store | |||
| 061 | DUST COVER ASSEMBLY | 1 | Not available in store | |||
