BST221
BST221

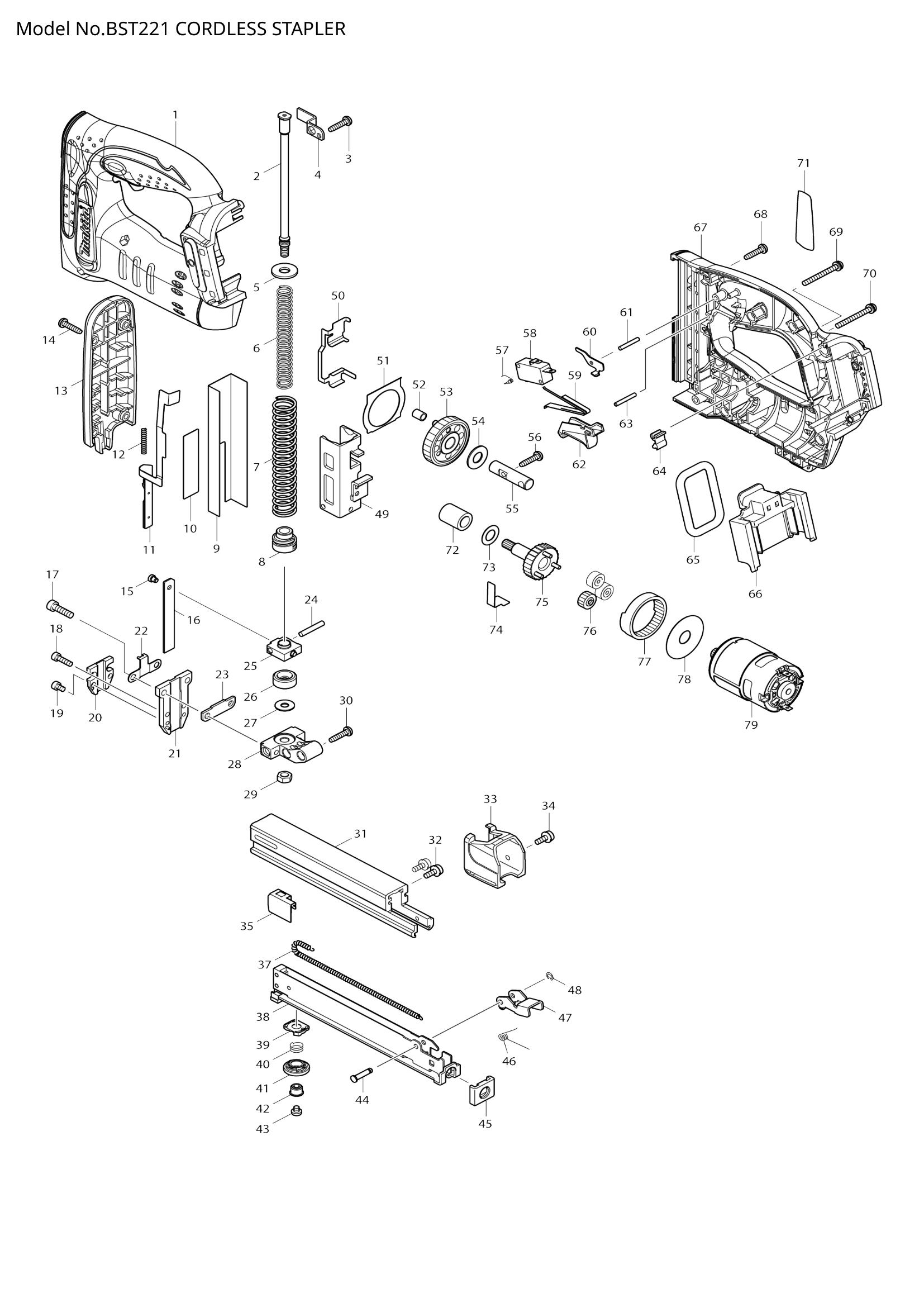

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 003 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 345907-6 | FIX PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 005 | 253762-1 | FLAT WASHER 8 | 1 | €1.11 | 1-4 weeks to ship | |
| 006 | 234060-2 | COMPRESSION SPRING 9 | 1 | €4.17 | 1-4 weeks to ship | |
| 008 | 424135-7 | SPRING HOLDER | 1 | €5.57 | 1-4 weeks to ship | |
| 009 | 345978-3 | GUIDE PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 010 | UPPER PLATE | 1 | Not available in store | |||
| 012 | 234078-3 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 450539-7 | FRONT COVER | 1 | €5.57 | 1-4 weeks to ship | |
| 014 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 015 | 268157-5 | PIN 4 | 1 | €2.78 | 1-4 weeks to ship | |
| 016 | 345996-1 | DRIVER | 1 | €16.70 | 1-4 weeks to ship | |
| 017 | 922227-1 | HEX. SOCKET HEAD BOLT M5X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 018 | 266201-2 | HEX.SOCKET HEAD BOLT M4X14 | 2 | €0.56 | 1-4 weeks to ship | |
| 019 | HEX.SOCKET HEAD BOLT M4X6 | 2 | Not available in store | |||
| 021 | 158759-4 | DRIVER GUIDE COMPLETE | 1 | €30.61 | 1-4 weeks to ship | |
| 022 | 345910-7 | SPRING BASE | 1 | €5.57 | 1-4 weeks to ship | |
| 023 | 344670-8 | SET PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 024 | 256206-0 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 313150-5 | DRIVER LOCK | 1 | €19.48 | 1-4 weeks to ship | |
| 026 | 424099-5 | CUSHION | 1 | €1.39 | 1-4 weeks to ship | |
| 027 | 253804-1 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | HOLDER | 1 | Not available in store | |||
| 029 | 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 911113-1 | PAN HEAD SCREW M4X10 WITH | 2 | €0.56 | 1-4 weeks to ship | |
| 033 | 450540-2 | END CAP | 1 | €8.35 | 1-4 weeks to ship | |
| 034 | 911113-1 | PAN HEAD SCREW M4X10 WITH | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 345997-9 | PUSHER | 1 | €16.70 | 1-4 weeks to ship | |
| 037 | 231854-6 | TENSION SPRING 3 | 1 | €4.17 | 1-4 weeks to ship | |
| 038 | 165532-5 | SUB MAGAZINE | 1 | €122.73 | 1-4 weeks to ship | |
| 039 | 450775-5 | ADJUSTER BASE | 1 | €2.78 | 1-4 weeks to ship | |
| 040 | 231323-7 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 450702-2 | ADJUSTER | 1 | €2.78 | 1-4 weeks to ship | |
| 042 | 450774-7 | LOCK SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 043 | 265127-5 | + PAN HEAD SCREW M4X4 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 268029-4 | PIN 4 | 1 | €1.11 | 1-4 weeks to ship | |
| 046 | 233528-5 | TORSION SPRING 5 | 1 | €1.39 | 1-4 weeks to ship | |
| 047 | 345861-4 | LEVER | 1 | €8.35 | 1-4 weeks to ship | |
| 048 | 961017-7 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 165506-6 | HAMMER | 1 | €27.83 | 1-4 weeks to ship | |
| 050 | 345914-9 | SLIDE PLATE | 1 | €8.35 | 1-4 weeks to ship | |
| 051 | 343629-2 | PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| 052 | 257772-0 | SLEEVE 5 | 1 | €5.57 | 1-4 weeks to ship | |
| 053 | 158646-7 | SPUR GEAR 55 COMPLETE | 1 | €22.26 | 1-4 weeks to ship | |
| 054 | 253171-4 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | 324947-7 | PIN 10 | 1 | €8.35 | 1-4 weeks to ship | |
| 056 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 057 | 233531-6 | TORSION SPRING 3 | 1 | €1.39 | 1-4 weeks to ship | |
| 058 | 651891-8 | SWITCH V-15-3A6 | 1 | €5.57 | 1-4 weeks to ship | |
| 059 | 232240-4 | LEAF SPRING | 1 | €5.57 | 1-4 weeks to ship | |
| 060 | 345908-4 | RELEASE PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 061 | 256221-4 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | 450536-3 | TRIGGER | 1 | €4.17 | 1-4 weeks to ship | |
| 063 | 256221-4 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | 424026-2 | CUSHION | 1 | €4.17 | 1-4 weeks to ship | |
| 065 | 424030-1 | CUSHION | 1 | €0.97 | 1-4 weeks to ship | |
| 068 | 265995-6 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 069 | 911163-6 | PAN HEAD SCREW M4X35 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | 911163-6 | PAN HEAD SCREW M4X35 | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | BST221 NAME PLATE | 1 | Not available in store | |||
| 072 | PLANE BEARING 10 | 1 | Not available in store | |||
| 073 | 253758-2 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 074 | 232241-2 | LEAF SPRING | 1 | €2.78 | 1-4 weeks to ship | |
| 075 | 158647-5 | SPUR GEAR 7 COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 076 | 221961-3 | SPUR GEAR 27 | 3 | €4.17 | 1-4 weeks to ship | |
| 077 | 221999-8 | INTERNAL GEAR 69 | 1 | €14.89 | 1-4 weeks to ship | |
| 078 | 267053-4 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
