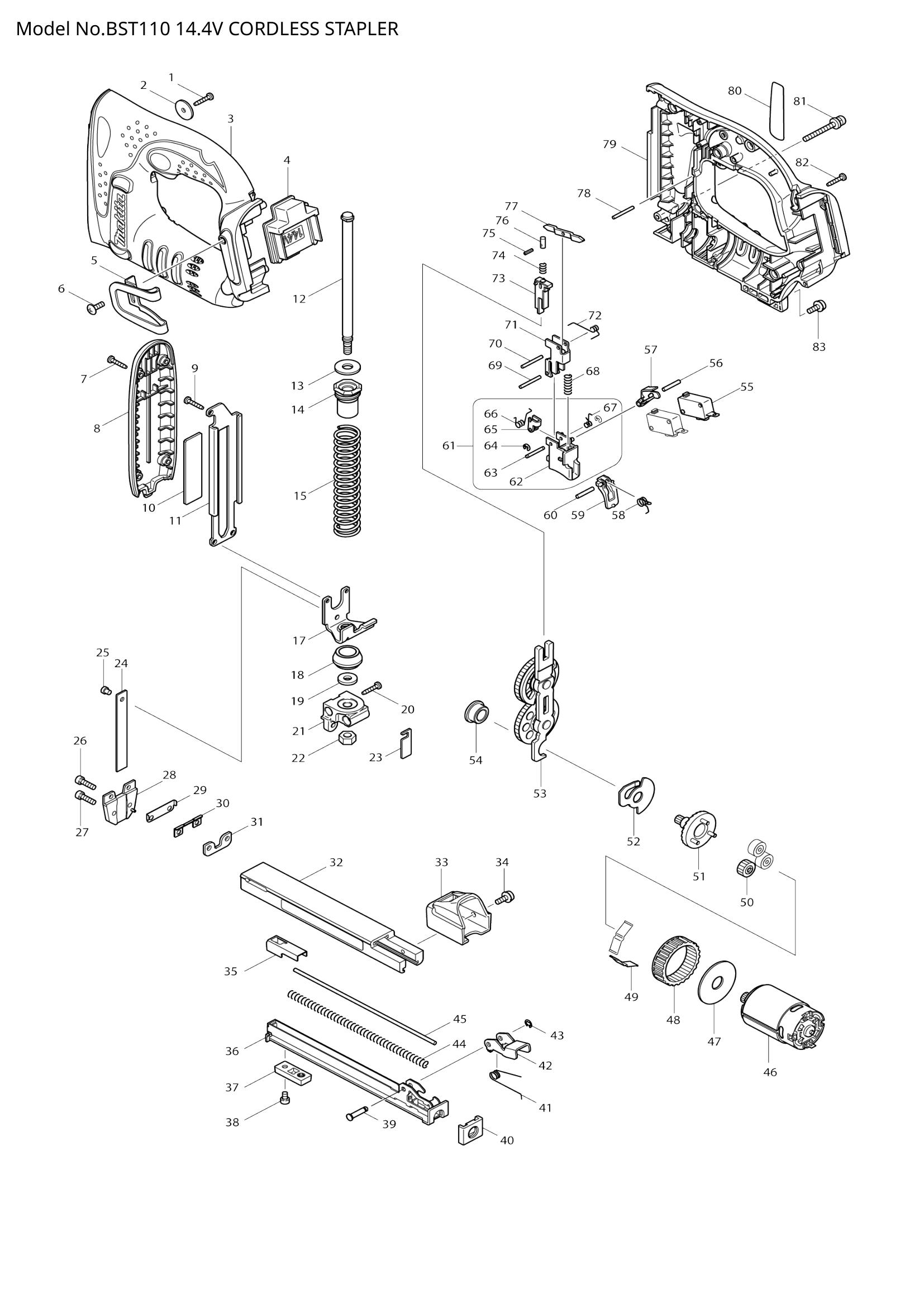

BST110
BST110
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 002 | 267071-2 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 251314-2 | + SCREW M4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 008 | 419450-2 | FRONT COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 009 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | UPPER PLATE | 1 | Not available in store | |||
| 011 | 345703-2 | RAIL | 1 | €25.05 | 1-4 weeks to ship | |
| 012 | 324683-5 | GUIDE BOLT | 1 | €13.92 | 1-4 weeks to ship | |
| 013 | 253762-1 | FLAT WASHER 8 | 1 | €1.11 | 1-4 weeks to ship | |
| 014 | 421962-3 | SPRING HOLDER | 1 | €8.35 | 1-4 weeks to ship | |
| 015 | 234035-1 | COMPRESSION SPRING 16 | 1 | €4.17 | 1-4 weeks to ship | |
| 017 | 345865-6 | HAMMER | 1 | €13.92 | 1-4 weeks to ship | |
| 018 | 424059-7 | CUSHION | 1 | €0.83 | 1-4 weeks to ship | |
| 019 | 253804-1 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 318025-3 | HOLDER | 1 | €13.92 | 1-4 weeks to ship | |
| 022 | 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 345864-8 | TRIGGER PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 024 | 345857-5 | DRIVER | 1 | €16.70 | 1-4 weeks to ship | |
| 025 | 268189-2 | PIN 4 | 1 | €4.17 | 1-4 weeks to ship | |
| 026 | 922122-5 | HEX.SOCKET HEAD BOLT M4X14 | 2 | €0.56 | 1-4 weeks to ship | |
| 027 | 922122-5 | HEX.SOCKET HEAD BOLT M4X14 | 2 | €0.56 | 1-4 weeks to ship | |
| 028 | 158417-2 | DRIVER GUIDE COMPLETE | 1 | €25.05 | 1-4 weeks to ship | |
| 029 | 345863-0 | SPACER | 1 | €2.78 | 1-4 weeks to ship | |
| 030 | 345862-2 | SPACER PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 031 | 345860-6 | SET PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| 032 | 158661-1 | MAIN MAGAZINE COMPLETE | 1 | €44.53 | 1-4 weeks to ship | |
| 033 | 450224-2 | END CAP | 1 | €5.57 | 1-4 weeks to ship | |
| 034 | 911113-1 | PAN HEAD SCREW M4X10 WITH | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 345858-3 | PUSHER | 1 | €19.48 | 1-4 weeks to ship | |
| 036 | 165479-3 | SUB MAGAZINE | 1 | €77.92 | 1-4 weeks to ship | |
| 037 | 450225-0 | FOOT | 1 | €4.17 | 1-4 weeks to ship | |
| 038 | 265127-5 | + PAN HEAD SCREW M4X4 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 268029-4 | PIN 4 | 1 | €1.11 | 1-4 weeks to ship | |
| 041 | 233519-6 | TORSION SPRING 5 | 1 | €1.39 | 1-4 weeks to ship | |
| 042 | 345861-4 | LEVER | 1 | €8.35 | 1-4 weeks to ship | |
| 043 | 961017-7 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 234036-9 | COMPRESSION SPRING 5 | 1 | €5.57 | 1-4 weeks to ship | |
| 045 | 324836-6 | ROD | 1 | €2.78 | 1-4 weeks to ship | |
| 047 | 267053-4 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 227166-3 | INTERNAL GEAR 69 | 1 | €4.17 | 1-4 weeks to ship | |
| 049 | 232230-7 | LEAF SPRING | 2 | €4.17 | 1-4 weeks to ship | |
| 050 | 221961-3 | SPUR GEAR 27 | 3 | €4.17 | 1-4 weeks to ship | |
| 051 | 154973-0 | SPUR GEAR 7 COMPLETE | 1 | €8.35 | 1-4 weeks to ship | |
| 052 | 345773-1 | ANTI BACK PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 053 | 158418-0 | SPUR GEAR 55 COMPLETE | 1 | €36.18 | 1-4 weeks to ship | |
| 054 | 214060-8 | PLANE BEARING 10 | 1 | €1.39 | 1-4 weeks to ship | |
| 055 | 651891-8 | SWITCH V-15-3A6 | 2 | €5.57 | 1-4 weeks to ship | |
| 056 | 256299-7 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 057 | 419453-6 | LINK PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 058 | 231693-4 | TORSION SPRING 4 | 1 | €1.11 | 1-4 weeks to ship | |
| 059 | 419454-4 | SAFETY TRIGGER | 1 | €4.17 | 1-4 weeks to ship | |
| 060 | 256299-7 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | 188168-3 | TRIGGER SET | 1 | €16.70 | 1-4 weeks to ship | |
| 062 | 419451-0 | TRIGGER | 1 | €4.17 | 1-4 weeks to ship | |
| 063 | 256771-9 | PIN 2.5 | 1 | €1.67 | 1-4 weeks to ship | |
| 064 | 257926-9 | STOP RING E-2.0 | 2 | €0.56 | 1-4 weeks to ship | |
| 065 | 345707-4 | SWING ARM | 1 | €4.17 | 1-4 weeks to ship | |
| 066 | 231694-2 | TORSION SPRING 3 | 1 | €1.11 | 1-4 weeks to ship | |
| 067 | 231695-0 | TORSION SPRING 3 | 1 | €1.11 | 1-4 weeks to ship | |
| 068 | 234037-7 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | 256176-3 | PIN 2.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | 256176-3 | PIN 2.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | 345706-6 | GUIDE PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 072 | 231692-6 | TORSION SPRING 4 | 1 | €0.83 | 1-4 weeks to ship | |
| 074 | 233188-3 | COMPRESSION SPRING 2.4 | 1 | €0.56 | 1-4 weeks to ship | |
| 075 | 951001-0 | SPRING PIN 2-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 077 | 345708-2 | SWITCH ARM | 1 | €4.17 | 1-4 weeks to ship | |
| 078 | 256176-3 | PIN 2.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 080 | 864861-0 | BST110 NAME PLATE | 1 | €2.09 | 1-4 weeks to ship | |
| 081 | 911163-6 | PAN HEAD SCREW M4X35 | 1 | €0.56 | 1-4 weeks to ship | |
| 082 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | €0.56 | 1-4 weeks to ship | |
| 083 | 911113-1 | PAN HEAD SCREW M4X10 WITH | 2 | €0.56 | 1-4 weeks to ship | |
