BSS611
BSS611

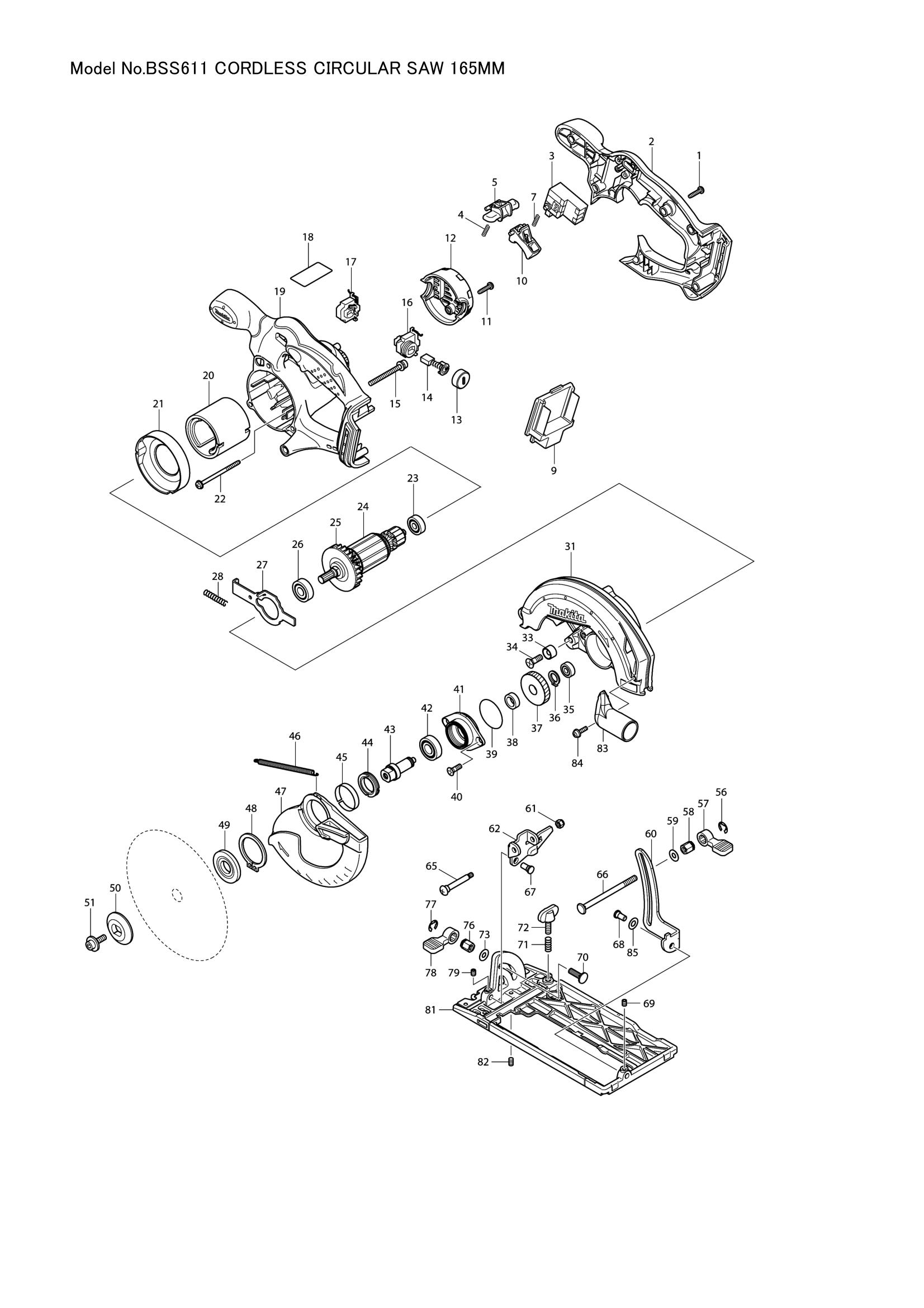

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 003 | SWITCH TG73BD | 1 | Not available in store | |||
| 004 | 231469-9 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 419664-3 | LOCK OFF LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 007 | 231469-9 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 419665-1 | SWITCH LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 012 | 419281-9 | REAR COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 013 | 643829-7 | HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 015 | 911263-2 | PAN HEAD SCREW M5X40 | 3 | €0.56 | 1-4 weeks to ship | |
| 911263-2 | PAN HEAD SCREW M5X40 | 3 | €0.56 | 1-4 weeks to ship | ||
| 018 | BSS611 NAME PLATE | 1 | Not available in store | |||
| 021 | 419285-1 | BAFFLE PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| 022 | 266292-3 | TAPPING SCREW 4X65 | 2 | €1.11 | 1-4 weeks to ship | |
| 023 | 210045-2 | BALL BEARING 627DDW | 1 | €1.25 | 1-4 weeks to ship | |
| 024 | ARMATURE ASS'Y 18V | 1 | Not available in store | |||
| 025 | 241869-5 | FAN 55 | 1 | €2.78 | 1-4 weeks to ship | |
| 028 | 233092-6 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 262049-0 | RUBBER RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 210028-2 | BALL BEARING 606ZZ | 1 | €0.83 | 1-4 weeks to ship | |
| 036 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 227156-6 | SPUR GEAR 52 | 1 | €11.13 | 1-4 weeks to ship | |
| 038 | 257173-2 | RING 12 | 1 | €0.83 | 1-4 weeks to ship | |
| 039 | 213512-6 | O RING 39 | 1 | €1.39 | 1-4 weeks to ship | |
| 041 | 318009-1 | BEARING BOX | 1 | €4.17 | 1-4 weeks to ship | |
| 044 | 285845-9 | BEARING RETAINER 19-29 | 1 | €3.34 | 1-4 weeks to ship | |
| 045 | 345469-4 | THICKNESS RING | 1 | €1.67 | 1-4 weeks to ship | |
| 046 | 231821-1 | TENSION SPRING 3 | 1 | €2.78 | 1-4 weeks to ship | |
| 047 | 419286-9 | SAFETY COVER | 1 | €5.57 | 1-4 weeks to ship | |
| 048 | 961152-1 | RETAINING RING (EXT) S-34 | 1 | €0.83 | 1-4 weeks to ship | |
| 961152-1 | RETAINING RING (EXT) S-34 | 1 | €0.83 | 1-4 weeks to ship | ||
| 050 | 224409-4 | OUTER FLANGE 35 | 1 | €1.67 | 1-4 weeks to ship | |
| 056 | 961014-3 | STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 057 | 272229-0 | LEVER 40 | 1 | €2.78 | 1-4 weeks to ship | |
| 058 | 252158-3 | HEX.NUT M6 | 1 | €4.17 | 1-4 weeks to ship | |
| 059 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 060 | 345658-1 | DEPTH GUIDE | 1 | €2.78 | 1-4 weeks to ship | |
| 061 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | 345657-3 | ANGULAR GUIDE | 1 | €4.17 | 1-4 weeks to ship | |
| 065 | 265056-2 | + PAN HEAD SCREW M5 | 1 | €1.67 | 1-4 weeks to ship | |
| 066 | 266194-3 | FLAT HEAD SCREW M6X90 | 1 | €1.67 | 1-4 weeks to ship | |
| 067 | 256480-0 | SHOULDER PIN 6-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | 256480-0 | SHOULDER PIN 6-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | 231007-7 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 072 | 251896-4 | SCREW M5X20 | 1 | €1.39 | 1-4 weeks to ship | |
| 073 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 076 | 252133-9 | HEX. NUT M6 | 1 | €2.78 | 1-4 weeks to ship | |
| 077 | 961014-3 | STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | 272251-7 | LEVER 30 | 1 | €1.11 | 1-4 weeks to ship | |
| 081 | 154832-8 | BASE COMPLETE | 1 | €27.83 | 1-4 weeks to ship | |
| 083 | DUST NOZZLE | 1 | Not available in store | |||
| 084 | 911118-1 | PAN HEAD SCREW M4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 085 | 253186-1 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
