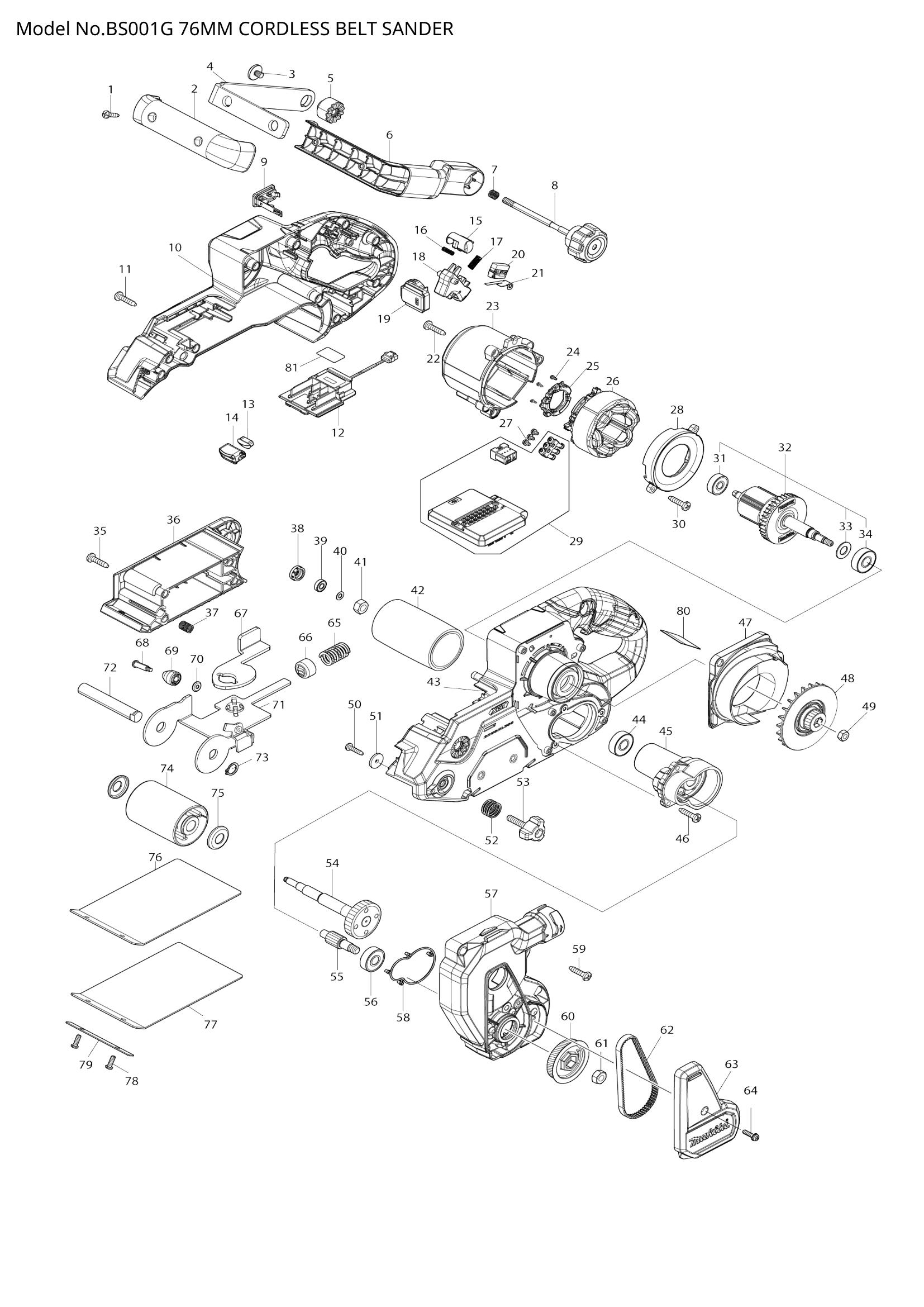

BS001G
BS001G
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 002 | FRONT HANDLE SET | 1 | Not available in store | |||
| FRONT HANDLE SET | 1 | Not available in store | ||||
| 003 | + FLAT HEAD SCREW M6X8 | 1 | Not available in store | |||
| + FLAT HEAD SCREW M6X8 | 1 | Not available in store | ||||
| 004 | FRONT HANDLE C | 1 | Not available in store | |||
| FRONT HANDLE C | 1 | Not available in store | ||||
| 005 | FRONT HANDLE CAM | 1 | Not available in store | |||
| FRONT HANDLE CAM | 1 | Not available in store | ||||
| 006 | FRONT HANDLE SET | 1 | Not available in store | |||
| FRONT HANDLE SET | 1 | Not available in store | ||||
| 007 | COMPRESSION SPRING 6 | 1 | Not available in store | |||
| COMPRESSION SPRING 6 | 1 | Not available in store | ||||
| 008 | KNOB 40 | 1 | Not available in store | |||
| KNOB 40 | 1 | Not available in store | ||||
| 009 | CAP COMPLETE | 1 | Not available in store | |||
| CAP COMPLETE | 1 | Not available in store | ||||
| 010 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 011 | 266326-2 | TAPPING SCREW 4X18 | 11 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 11 | €0.56 | 1-4 weeks to ship | ||
| 012 | TERMINAL UNIT | 1 | Not available in store | |||
| TERMINAL UNIT | 1 | Not available in store | ||||
| 013 | LED CIRCUIT | 1 | Not available in store | |||
| LED CIRCUIT | 1 | Not available in store | ||||
| 014 | LED HOUSING | 1 | Not available in store | |||
| LED HOUSING | 1 | Not available in store | ||||
| 015 | LOCKON BUTTON | 1 | Not available in store | |||
| LOCKON BUTTON | 1 | Not available in store | ||||
| 016 | 231433-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 231433-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 017 | 231372-4 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 231372-4 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 018 | SWITCH LEVER COMPLETE | 1 | Not available in store | |||
| SWITCH LEVER COMPLETE | 1 | Not available in store | ||||
| 019 | DIAL CIRCUIT | 1 | Not available in store | |||
| DIAL CIRCUIT | 1 | Not available in store | ||||
| 020 | SWITCH UNIT | 1 | Not available in store | |||
| SWITCH UNIT | 1 | Not available in store | ||||
| 021 | LEAF SPRING | 1 | Not available in store | |||
| LEAF SPRING | 1 | Not available in store | ||||
| 022 | 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | ||
| 023 | MOTOR HOUSING | 1 | Not available in store | |||
| MOTOR HOUSING | 1 | Not available in store | ||||
| 024 | PAN HEAD SCREW M2X6 | 3 | Not available in store | |||
| PAN HEAD SCREW M2X6 | 3 | Not available in store | ||||
| 025 | SENSOR UNIT | 1 | Not available in store | |||
| SENSOR UNIT | 1 | Not available in store | ||||
| 026 | 629A85-9 | STATOR | 1 | €20.45 | 1-4 weeks to ship | |
| 629A85-9 | STATOR | 1 | €20.45 | 1-4 weeks to ship | ||
| 027 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | ||
| 028 | BUFFLE PLATE | 1 | Not available in store | |||
| BUFFLE PLATE | 1 | Not available in store | ||||
| 029 | CONTROLLER | 1 | Not available in store | |||
| CONTROLLER | 1 | Not available in store | ||||
| 030 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 031 | 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | ||
| 032 | ROTOR ASS'Y | 1 | Not available in store | |||
| ROTOR ASS'Y | 1 | Not available in store | ||||
| 033 | 267256-0 | FLAT WASHER 10 | 1 | €0.83 | 1-4 weeks to ship | |
| 267256-0 | FLAT WASHER 10 | 1 | €0.83 | 1-4 weeks to ship | ||
| 034 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 035 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 036 | ROLLER COVER | 1 | Not available in store | |||
| ROLLER COVER | 1 | Not available in store | ||||
| 037 | 233249-9 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 233249-9 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 038 | 421977-0 | RUBBER RING 13 | 1 | €0.83 | 1-4 weeks to ship | |
| 421977-0 | RUBBER RING 13 | 1 | €0.83 | 1-4 weeks to ship | ||
| 039 | BALL BEARING 695 DDW | 1 | Not available in store | |||
| BALL BEARING 695 DDW | 1 | Not available in store | ||||
| 040 | 253811-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 253811-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 041 | 252154-1 | HEX. NUT M8-13 | 1 | €0.56 | 1-4 weeks to ship | |
| 252154-1 | HEX. NUT M8-13 | 1 | €0.56 | 1-4 weeks to ship | ||
| 042 | 162217-4 | DRIVING ROLLER | 1 | €25.05 | 1-4 weeks to ship | |
| 162217-4 | DRIVING ROLLER | 1 | €25.05 | 1-4 weeks to ship | ||
| 043 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 044 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 045 | FRAME COMPLETE | 1 | Not available in store | |||
| FRAME COMPLETE | 1 | Not available in store | ||||
| 046 | 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | ||
| 047 | SCROLL COVER | 1 | Not available in store | |||
| SCROLL COVER | 1 | Not available in store | ||||
| 048 | 241663-5 | FAN 76 | 1 | €19.48 | 1-4 weeks to ship | |
| 241663-5 | FAN 76 | 1 | €19.48 | 1-4 weeks to ship | ||
| 049 | 252153-3 | HEX. NUT M6-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 252153-3 | HEX. NUT M6-10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 050 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 051 | 253400-5 | FLAT WASHER 4 | 1 | €0.42 | 1-4 weeks to ship | |
| 253400-5 | FLAT WASHER 4 | 1 | €0.42 | 1-4 weeks to ship | ||
| 052 | 233142-7 | COMPRESSION SPRING 14 | 1 | €1.11 | 1-4 weeks to ship | |
| 233142-7 | COMPRESSION SPRING 14 | 1 | €1.11 | 1-4 weeks to ship | ||
| 053 | 265790-4 | THUMB SCREW M6X28 | 1 | €0.56 | 1-4 weeks to ship | |
| 265790-4 | THUMB SCREW M6X28 | 1 | €0.56 | 1-4 weeks to ship | ||
| 054 | HERICAL GEAR 39 COMPLETE | 1 | Not available in store | |||
| HERICAL GEAR 39 COMPLETE | 1 | Not available in store | ||||
| 055 | 226520-8 | HELICAL GEAR 10 | 1 | €13.92 | 1-4 weeks to ship | |
| 226520-8 | HELICAL GEAR 10 | 1 | €13.92 | 1-4 weeks to ship | ||
| 056 | BALL BEARING 629DDW | 1 | Not available in store | |||
| BALL BEARING 629DDW | 1 | Not available in store | ||||
| 057 | BRACKET ASSEMBLY | 1 | Not available in store | |||
| BRACKET ASSEMBLY | 1 | Not available in store | ||||
| 058 | SEAL RING | 1 | Not available in store | |||
| SEAL RING | 1 | Not available in store | ||||
| 059 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | ||
| 060 | 222156-1 | PULLEY 9.5-46.0 | 1 | €13.92 | 1-4 weeks to ship | |
| 222156-1 | PULLEY 9.5-46.0 | 1 | €13.92 | 1-4 weeks to ship | ||
| 061 | 931402-8 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | |
| 931402-8 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 931402-8 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 931402-8 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 062 | SYNCHRO BELT 6-264 | 1 | Not available in store | |||
| SYNCHRO BELT 6-264 | 1 | Not available in store | ||||
| 063 | BELT COVER | 1 | Not available in store | |||
| BELT COVER | 1 | Not available in store | ||||
| 064 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 065 | 233250-4 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 233250-4 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 066 | 267746-3 | CUP WASHER 17 | 1 | €1.67 | 1-4 weeks to ship | |
| 267746-3 | CUP WASHER 17 | 1 | €1.67 | 1-4 weeks to ship | ||
| 067 | 344823-9 | LEVER | 1 | €4.17 | 1-4 weeks to ship | |
| 344823-9 | LEVER | 1 | €4.17 | 1-4 weeks to ship | ||
| 068 | 265059-6 | SHOULDER SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 265059-6 | SHOULDER SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 069 | 416417-1 | ROLLER | 1 | €1.11 | 1-4 weeks to ship | |
| 416417-1 | ROLLER | 1 | €1.11 | 1-4 weeks to ship | ||
| 070 | 267731-6 | CUP WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 267731-6 | CUP WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 071 | 151744-6 | TENSION ROLLER ARM COMPLET | 1 | €22.26 | 1-4 weeks to ship | |
| 151744-6 | TENSION ROLLER ARM COMPLET | 1 | €22.26 | 1-4 weeks to ship | ||
| 072 | 323931-9 | TENSION ROLLER SHAFT | 1 | €4.17 | 1-4 weeks to ship | |
| 323931-9 | TENSION ROLLER SHAFT | 1 | €4.17 | 1-4 weeks to ship | ||
| 073 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 074 | 151753-5 | TENSION ROLLER COMPLETE | 1 | €25.05 | 1-4 weeks to ship | |
| 151753-5 | TENSION ROLLER COMPLETE | 1 | €25.05 | 1-4 weeks to ship | ||
| 075 | 253922-5 | CUP WASHER 12 | 2 | €0.56 | 1-4 weeks to ship | |
| 253922-5 | CUP WASHER 12 | 2 | €0.56 | 1-4 weeks to ship | ||
| 076 | 193199-9 | CORK RUBBER PLATE | 1 | €9.46 | 1-4 weeks to ship | |
| 193199-9 | CORK RUBBER PLATE | 1 | €9.46 | 1-4 weeks to ship | ||
| 077 | CARBON PLATE | 1 | Not available in store | |||
| CARBON PLATE | 1 | Not available in store | ||||
| 078 | 911117-3 | PAN HEAD SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 911117-3 | PAN HEAD SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | ||
| 079 | 344848-3 | STRAP WASHER | 1 | €0.83 | 1-4 weeks to ship | |
| 344848-3 | STRAP WASHER | 1 | €0.83 | 1-4 weeks to ship | ||
| 080 | BS001G NAME PLATE | 1 | Not available in store | |||
| BS001G NAME PLATE | 1 | Not available in store | ||||
| 081 | BS001G SERIAL NO.LABEL | 1 | Not available in store | |||
| BS001G SERIAL NO.LABEL | 1 | Not available in store | ||||
