BO6050
BO6050

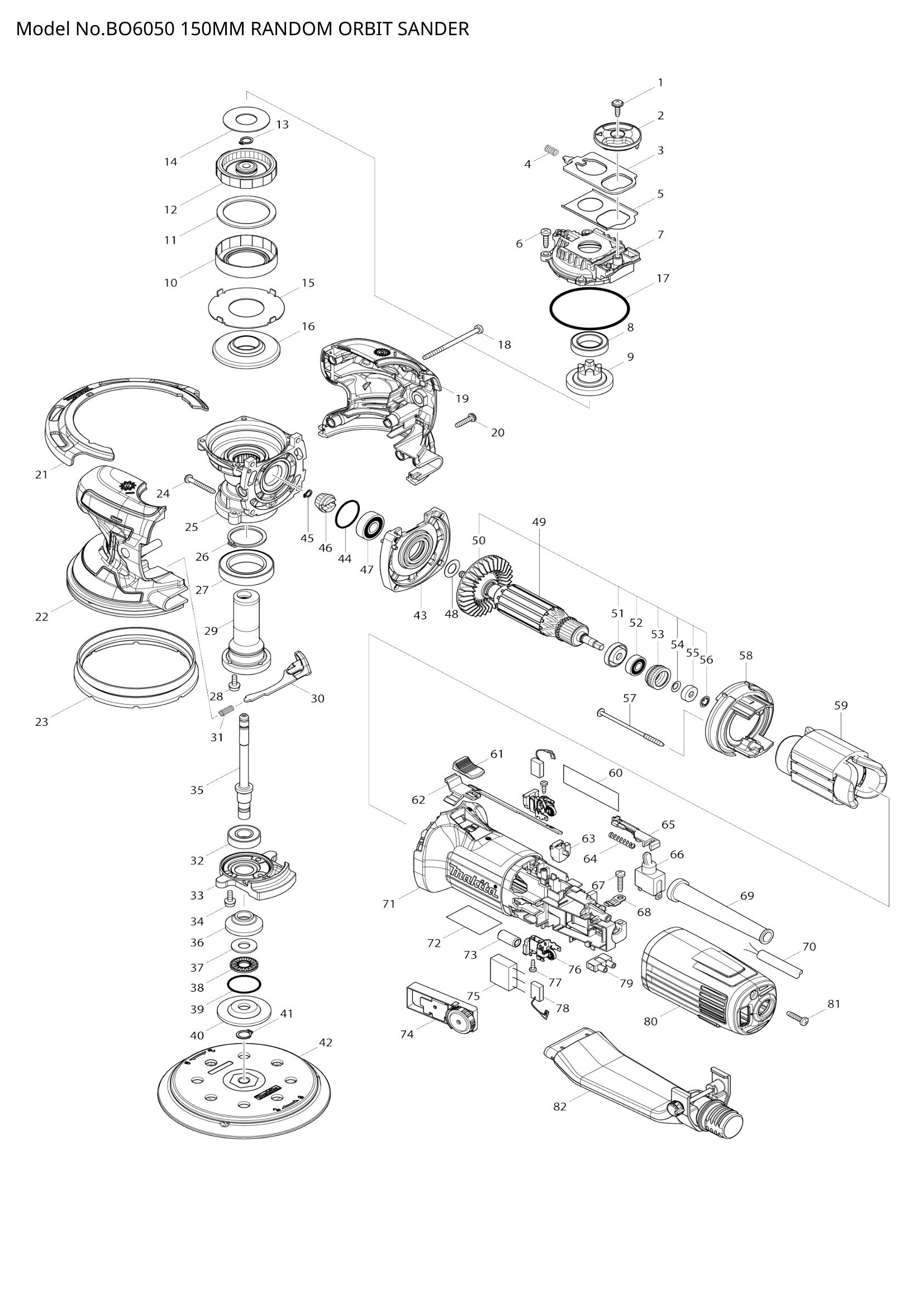

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266901-4 | TAPPING SCREW 4X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 002 | 456126-0 | CHANGE KNOB | 1 | €1.81 | 1-4 weeks to ship | |
| 004 | 231490-8 | COMPRESSION SPRING 5 | 1 | €0.28 | 1-4 weeks to ship | |
| 005 | 346913-4 | GUIDE PLATE | 1 | €1.95 | 1-4 weeks to ship | |
| 006 | 266034-5 | TAPPING SCREW CT 4X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 007 | 456117-1 | TOP COVER | 1 | €3.20 | 1-4 weeks to ship | |
| 008 | 211333-0 | BALL BEARING 6804LLU | 1 | €10.30 | 1-4 weeks to ship | |
| 010 | 424748-4 | BRAKE RING | 1 | €3.06 | 1-4 weeks to ship | |
| 011 | 261157-4 | SPONGE WASHER 40 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 227387-7 | INTERNAL GEAR 34 | 1 | €33.95 | 1-4 weeks to ship | |
| 013 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 267290-0 | FLAT WASHER 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 346912-6 | PLATE | 1 | €2.09 | 1-4 weeks to ship | |
| 016 | 227648-5 | SPIRAL BEVEL GEAR 43 | 1 | €30.47 | 1-4 weeks to ship | |
| 017 | 213707-1 | O RING 65 | 1 | €0.83 | 1-4 weeks to ship | |
| 018 | 266060-4 | TAPPING SCREW 4X65 | 1 | €1.39 | 1-4 weeks to ship | |
| 019 | 183B68-4 | HEAD COVER SET | 1 | €18.23 | 1-4 weeks to ship | |
| 020 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 021 | 456127-8 | PAD PROTECTOR | 1 | €3.34 | 1-4 weeks to ship | |
| 022 | 183B68-4 | HEAD COVER SET | 1 | €18.23 | 1-4 weeks to ship | |
| 023 | 424747-6 | RUBBER GUARD | 1 | €3.48 | 1-4 weeks to ship | |
| 024 | 266050-7 | TAPPING SCREW 4X30 | 4 | €0.56 | 1-4 weeks to ship | |
| 025 | 143324-2 | GEAR HOUSING COMPLETE | 1 | €45.36 | 1-4 weeks to ship | |
| 026 | 961110-7 | RETAINING RING S-30 | 1 | €2.78 | 1-4 weeks to ship | |
| 027 | 211445-9 | BALL BEARING 6906DDW | 1 | €9.60 | 1-4 weeks to ship | |
| 028 | 911119-9 | PAN HEAD SCREW M4X12 | 3 | €0.56 | 1-4 weeks to ship | |
| 029 | 143325-0 | OUTER SPINDLE COMPLETE | 1 | €54.41 | 1-4 weeks to ship | |
| 030 | 143376-3 | SHAFT LOCK COMPLETE | 1 | €3.62 | 1-4 weeks to ship | |
| 031 | 233285-5 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 033 | 319330-1 | BALANCER | 1 | €8.07 | 1-4 weeks to ship | |
| 034 | 911119-9 | PAN HEAD SCREW M4X12 | 3 | €0.56 | 1-4 weeks to ship | |
| 035 | 143375-5 | INNER SPINDLE COMPLETE | 1 | €13.64 | 1-4 weeks to ship | |
| 036 | 326582-7 | COVER | 1 | €8.21 | 1-4 weeks to ship | |
| 037 | 253024-7 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 216413-7 | THRUST NEEDLE CAGE 1024 | 1 | €2.78 | 1-4 weeks to ship | |
| 039 | 213445-5 | O-RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 326581-9 | FLANGE | 1 | €12.25 | 1-4 weeks to ship | |
| 041 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | PAD 150 SET | 1 | Not available in store | |||
| 043 | 143327-6 | GEAR HOUSING COVER COMPLE | 1 | €22.54 | 1-4 weeks to ship | |
| 044 | 213445-5 | O-RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 961002-0 | RETAINING RING S-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 227647-7 | SPIRAL BEVEL GEAR 11 | 1 | €12.80 | 1-4 weeks to ship | |
| 047 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 048 | 253758-2 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | ARMATURE ASS'Y 220-240V | 1 | Not available in store | |||
| 050 | 240084-8 | FAN 60 | 1 | €0.83 | 1-4 weeks to ship | |
| 051 | 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 052 | 211021-9 | BALL BEARING 607LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 053 | 421868-5 | LABYRINTH RUBBER RING 19 | 1 | €0.83 | 1-4 weeks to ship | |
| 054 | 267756-0 | WAVE WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | 688117-5 | MAGNET SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 056 | 259039-2 | SELF LOCK 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 057 | 266049-2 | TAPPING SCREW 4X75 | 2 | €1.11 | 1-4 weeks to ship | |
| 058 | 456116-3 | BAFFLE PLATE | 1 | €2.23 | 1-4 weeks to ship | |
| 059 | 621773-8 | FIELD 220-240V | 1 | €19.48 | 1-4 weeks to ship | |
| 621773-8 | FIELD 220-240V | 1 | €19.48 | 1-4 weeks to ship | ||
| 060 | BO6050 NAME PLATE | 1 | Not available in store | |||
| 061 | 419566-3 | SWITCH KNOB | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | 456122-8 | FRONT SWITCH LEVER | 1 | €1.81 | 1-4 weeks to ship | |
| 063 | 456124-4 | PICUP COIL COVER | 1 | €1.53 | 1-4 weeks to ship | |
| 064 | 233071-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 065 | 456123-6 | REAR SWITCH LEVER | 1 | €1.67 | 1-4 weeks to ship | |
| 067 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | 687681-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 071 | 456120-2 | MOTOR HOUSING | 1 | €15.31 | 1-4 weeks to ship | |
| 072 | INDICATION LABEL | 1 | Not available in store | |||
| 074 | 620465-6 | CONTROLLER | 1 | €39.24 | 1-4 weeks to ship | |
| 076 | 643770-4 | BRUSH HOLDER | 2 | €1.39 | 1-4 weeks to ship | |
| 643770-4 | BRUSH HOLDER | 2 | €1.39 | 1-4 weeks to ship | ||
| 077 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 2 | €0.56 | 1-4 weeks to ship | |
| 079 | 654532-5 | TERMINAL BLOCK 1P | 1 | €1.11 | 1-4 weeks to ship | |
| 080 | 456121-0 | REAR COVER | 1 | €5.15 | 1-4 weeks to ship | |
| 081 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 082 | 143326-8 | NOZZLE COMPLETE | 1 | €11.83 | 1-4 weeks to ship | |
