BJS130
BJS130

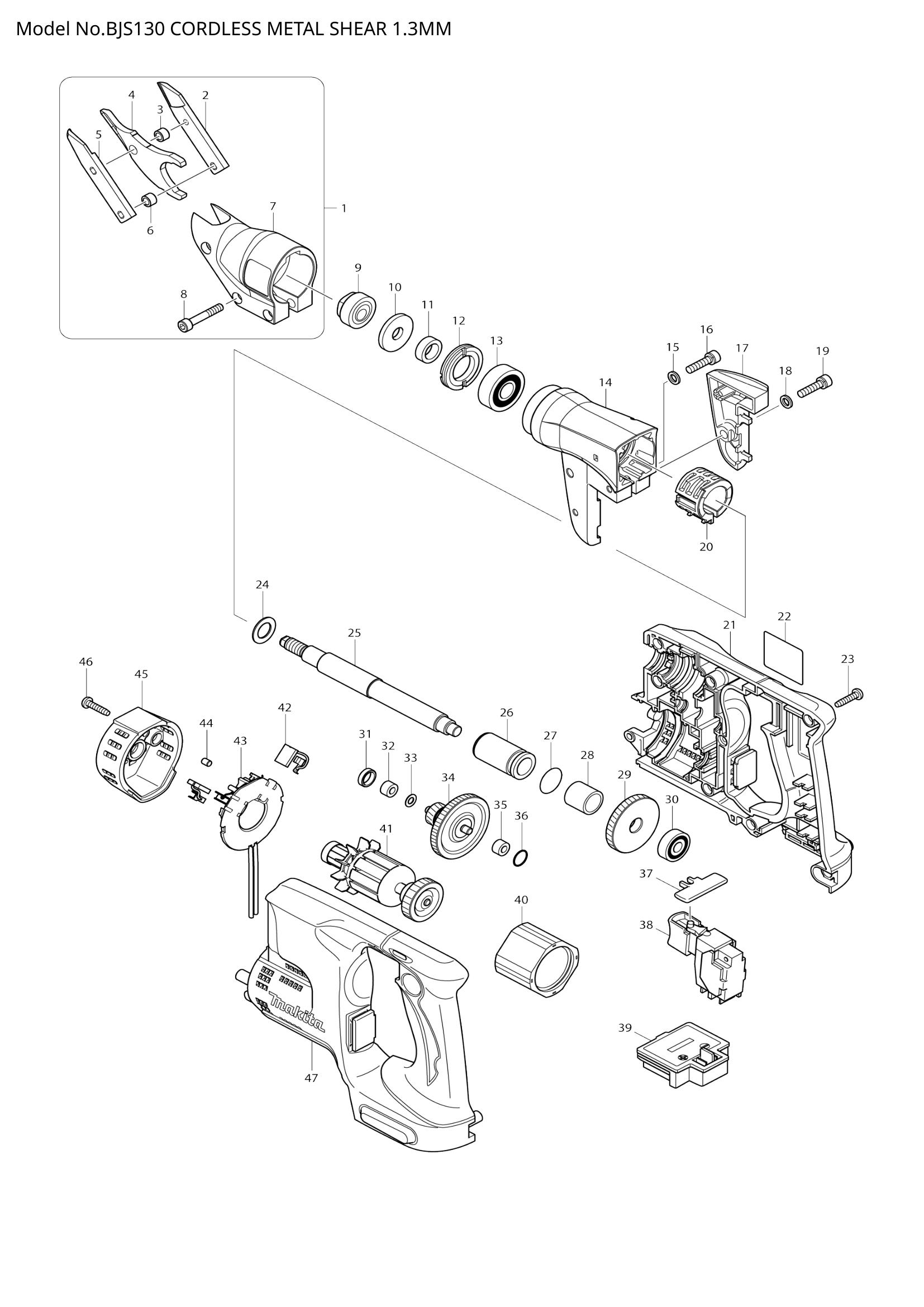

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | SIDE BLADE R | 1 | Not available in store | |||
| 003 | 257705-5 | SLEEVE 5 | 1 | €4.17 | 1-4 weeks to ship | |
| 004 | CENTER BLADE | 1 | Not available in store | |||
| 005 | SIDE BLADE L | 1 | Not available in store | |||
| 006 | 257705-5 | SLEEVE 5 | 1 | €4.17 | 1-4 weeks to ship | |
| 007 | 152663-9 | CUTTING HEAD COMPLETE | 1 | €130.80 | 1-4 weeks to ship | |
| 008 | 266268-0 | HEX. SOCKET HEAD BOLT | 3 | €5.57 | 1-4 weeks to ship | |
| 009 | 125111-1 | BEARING ASS'Y | 1 | €44.53 | 1-4 weeks to ship | |
| 010 | 267223-5 | FLAT WASHER 10 | 1 | €2.78 | 1-4 weeks to ship | |
| 011 | 257173-2 | RING 12 | 1 | €0.83 | 1-4 weeks to ship | |
| 012 | 285802-7 | BEARING RETAINER 19-33 | 1 | €2.78 | 1-4 weeks to ship | |
| 013 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 014 | 318325-1 | BARREL | 1 | €36.18 | 1-4 weeks to ship | |
| 017 | 450757-7 | HOLDER | 1 | €5.57 | 1-4 weeks to ship | |
| 020 | 450755-1 | CLAMPER | 1 | €5.57 | 1-4 weeks to ship | |
| 022 | 865590-8 | BJS130 NAME PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 265995-6 | TAPPING SCREW 4X18 | 9 | €0.56 | 1-4 weeks to ship | |
| 024 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 324937-0 | SPINDLE | 1 | €44.53 | 1-4 weeks to ship | |
| 026 | 214174-3 | PLANE BEARING 14 | 1 | €4.17 | 1-4 weeks to ship | |
| 027 | 213262-3 | O RING 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 257773-8 | SLEEVE 14 | 1 | €2.78 | 1-4 weeks to ship | |
| 029 | 226686-4 | HELICAL GEAR 39 | 1 | €16.70 | 1-4 weeks to ship | |
| 030 | 211034-0 | BALL BEARING 608 | 1 | €4.17 | 1-4 weeks to ship | |
| 031 | 165115-1 | RUBBER SLEEVE 10 | 1 | €2.78 | 1-4 weeks to ship | |
| 032 | 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 253811-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 226154-7 | GEAR COMPLETE 11-44 | 1 | €41.75 | 1-4 weeks to ship | |
| 035 | 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | 213055-8 | O RING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 450756-9 | LOOK OFF LEVER | 1 | €4.17 | 1-4 weeks to ship | |
| 040 | 638426-2 | YOKE UNIT | 1 | €27.83 | 1-4 weeks to ship | |
| 041 | 619237-4 | ARMATURE | 1 | €33.40 | 1-4 weeks to ship | |
| 043 | 638433-5 | BRUSH HOLDER COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 638433-5 | BRUSH HOLDER COMPLETE | 1 | €2.78 | 1-4 weeks to ship | ||
| 044 | 263032-0 | RUBBER PIN 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 045 | 419307-7 | FRONT COVER | 1 | €5.57 | 1-4 weeks to ship | |
| 046 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 048 | 125112-9 | SHEAR HEAD ASS'Y | 1 | €141.93 | 1-4 weeks to ship | |
