BJR181
BJR181

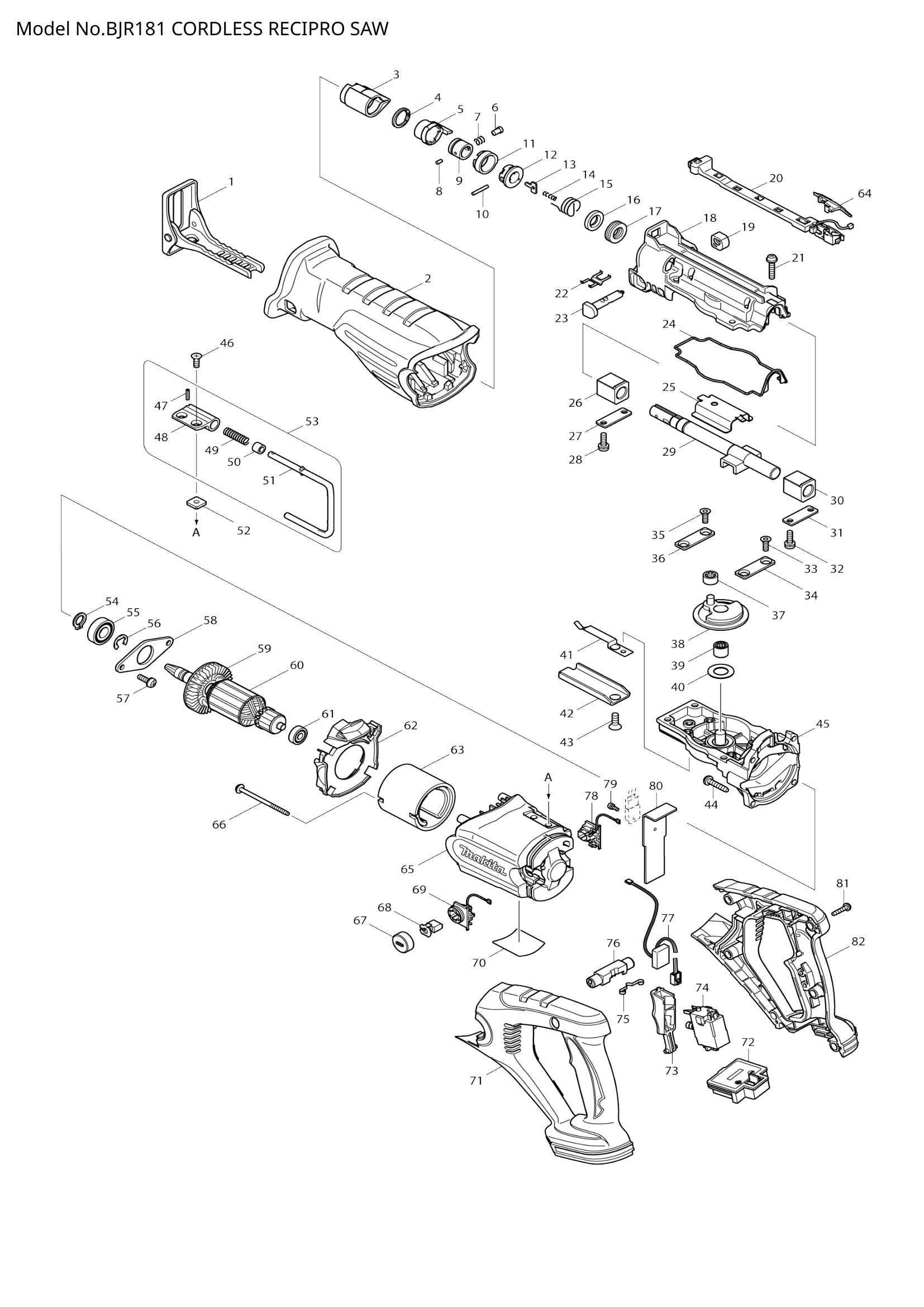

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 421945-3 | INSULATION COVER | 1 | €22.26 | 1-4 weeks to ship | |
| 006 | 256492-3 | SHOULDER PIN 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 007 | 233345-3 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 268094-3 | PIN 3 | 1 | €2.78 | 1-4 weeks to ship | |
| 010 | 256158-5 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 417791-0 | DRIVING SLEEVE GUIDE | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 418311-3 | SLEEVE | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 345214-7 | PUSH PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 014 | 233025-1 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 231687-9 | TORSION SPRING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 213151-2 | OIL SEAL 14 | 1 | €2.78 | 1-4 weeks to ship | |
| 017 | 213174-0 | X RING 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 154813-2 | GEAR HOUSING COVER COMPLE | 1 | €27.83 | 1-4 weeks to ship | |
| 019 | 418806-6 | CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 631689-9 | LED CIRCUIT | 1 | €23.93 | 1-4 weeks to ship | |
| 631689-9 | LED CIRCUIT | 1 | €23.93 | 1-4 weeks to ship | ||
| 021 | 911243-8 | PAN HEAD SCREW M5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 022 | 232221-8 | LEAF SPRING A | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 162236-0 | SHIFT BUTTON | 1 | €4.17 | 1-4 weeks to ship | |
| 024 | 421946-1 | SEAL RING | 1 | €1.11 | 1-4 weeks to ship | |
| 025 | 345480-6 | SLIDE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 214170-1 | PLANE BEARING 14A | 1 | €1.39 | 1-4 weeks to ship | |
| 027 | 341462-6 | PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 911225-0 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 030 | 214170-1 | PLANE BEARING 14A | 1 | €1.39 | 1-4 weeks to ship | |
| 031 | 341462-6 | PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 911225-0 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 033 | 265148-7 | TORX SOCKET HEAD SCREW M5X | 2 | €0.56 | 1-4 weeks to ship | |
| 034 | 344795-8 | PLATE C | 1 | €1.81 | 1-4 weeks to ship | |
| 035 | 265148-7 | TORX SOCKET HEAD SCREW M5X | 2 | €0.56 | 1-4 weeks to ship | |
| 036 | 344795-8 | PLATE C | 1 | €1.81 | 1-4 weeks to ship | |
| 040 | 253797-2 | FLAT WASHER 14 | 1 | €0.83 | 1-4 weeks to ship | |
| 041 | 232222-6 | LEAF SPRING B | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 345479-1 | SHOE GUIDE | 1 | €0.83 | 1-4 weeks to ship | |
| 043 | 265165-7 | TORXSOCKET C.S.HEADSCREW M | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 045 | 154812-4 | GEAR HOUSING COMPLETE | 1 | €52.88 | 1-4 weeks to ship | |
| 046 | 912207-5 | COUNTERSUNK HEAD SCREW M5 | 2 | €0.56 | 1-4 weeks to ship | |
| 047 | 951057-3 | SPRING PIN 3-12 | 1 | €0.28 | 1-4 weeks to ship | |
| 951057-3 | SPRING PIN 3-12 | 1 | €0.28 | 1-4 weeks to ship | ||
| 048 | 313127-0 | JOINT | 1 | €5.57 | 1-4 weeks to ship | |
| 049 | 233455-6 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 262561-0 | SLEEVE 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 281218-4 | HOOK | 1 | €2.78 | 1-4 weeks to ship | |
| 052 | 264002-2 | SQUARE NUT M5 | 2 | €0.56 | 1-4 weeks to ship | |
| 053 | 125321-0 | HOOK ASS'Y | 1 | €11.13 | 1-4 weeks to ship | |
| 054 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | 210102-6 | BALL BEARING 6001DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 056 | 961016-9 | STOP RING E-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 057 | 911225-0 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 058 | 285726-7 | BEARING RETAINER 63 | 1 | €1.11 | 1-4 weeks to ship | |
| 059 | 241869-5 | FAN 55 | 1 | €2.78 | 1-4 weeks to ship | |
| 060 | 519176-7 | ARMATURE ASS'Y 18V | 1 | €30.61 | 1-4 weeks to ship | |
| 519176-7 | ARMATURE ASS'Y 18V | 1 | €30.61 | 1-4 weeks to ship | ||
| 061 | 210062-2 | BALL BEARING 607ZZ | 1 | €0.83 | 1-4 weeks to ship | |
| 062 | 419333-6 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 063 | 638107-8 | YOKE UNIT | 1 | €19.48 | 1-4 weeks to ship | |
| 064 | 419327-1 | COVER | 1 | €0.70 | 1-4 weeks to ship | |
| 065 | 419330-2 | MOTOR HOUSING | 1 | €19.48 | 1-4 weeks to ship | |
| 066 | 266292-3 | TAPPING SCREW 4X65 | 2 | €1.11 | 1-4 weeks to ship | |
| 067 | 643941-3 | BRUSH HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 073 | 419336-0 | SWITCH LEVER | 1 | €1.67 | 1-4 weeks to ship | |
| 075 | 232152-1 | LEAF SPRING | 1 | €1.11 | 1-4 weeks to ship | |
| 076 | 419334-4 | LOCK OFF BUTTON | 1 | €2.23 | 1-4 weeks to ship | |
| 077 | 631690-4 | POWER SUPPLY CIRCUIT | 1 | €13.92 | 1-4 weeks to ship | |
| 079 | 911006-2 | PAN HEAD SCREW M3X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 080 | 689116-0 | HEAT SINK | 1 | €5.57 | 1-4 weeks to ship | |
| 081 | 266045-0 | TAPPING SCREW 4X20 | 6 | €0.56 | 1-4 weeks to ship |
