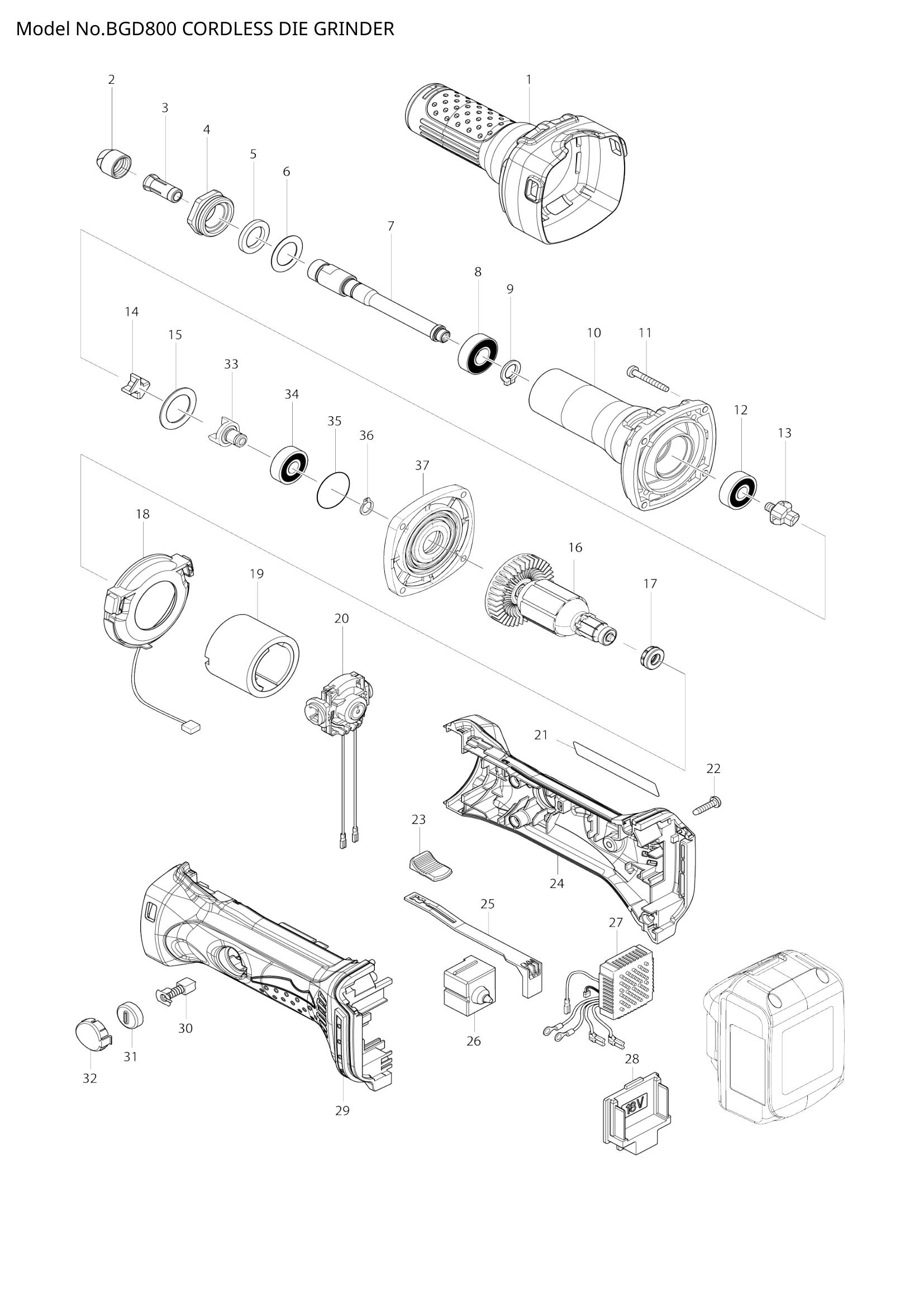

BGD800
BGD800
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 424380-4 | INSULATION COVER | 1 | €5.57 | 1-4 weeks to ship | |
| 002 | 763668-0 | COLLET NUT | 1 | €1.39 | 1-4 weeks to ship | |
| 003 | COLLET CONE 6 | 1 | Not available in store | |||
| 004 | 317999-5 | BEARING RETAINER | 1 | €1.67 | 1-4 weeks to ship | |
| 005 | 443124-3 | FELT RING 17 | 1 | €0.42 | 1-4 weeks to ship | |
| 006 | 267329-9 | FLAT WASHER 18 | 1 | €0.28 | 1-4 weeks to ship | |
| 007 | 326010-2 | SPINDLE | 1 | €11.13 | 1-4 weeks to ship | |
| 008 | 210106-8 | BALL BEARING 6001LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 009 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 318000-9 | BARREL | 1 | €10.85 | 1-4 weeks to ship | |
| 011 | 266361-0 | TAPPING SCREW 4X30 | 4 | €0.56 | 1-4 weeks to ship | |
| 012 | 210042-8 | BALL BEARING 629LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 013 | 324639-8 | COUPLING | 1 | €4.17 | 1-4 weeks to ship | |
| 014 | 421942-9 | SPACER | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 267126-3 | FLAT WASHER 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 619284-5 | ARMATURE | 1 | €13.92 | 1-4 weeks to ship | |
| 017 | 421977-0 | RUBBER RING 13 | 1 | €0.83 | 1-4 weeks to ship | |
| 018 | 631714-6 | LED CIRCUIT | 1 | €11.13 | 1-4 weeks to ship | |
| 019 | 638627-2 | YOKE UNIT | 1 | €19.48 | 1-4 weeks to ship | |
| 021 | BGD800 NAME PLATE | 1 | Not available in store | |||
| 023 | 419566-3 | SWITCH KNOB | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 419519-2 | SWITCH LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 191971-3 | CARBON BRUSH CB-430 | 1 | €2.78 | 1-4 weeks to ship | |
| 031 | 643929-3 | BRUSH HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 032 | 419518-4 | HOLDER CAP COVER | 2 | €0.56 | 1-4 weeks to ship | |
| 033 | 326009-7 | COUPLING | 1 | €4.17 | 1-4 weeks to ship | |
| 034 | 210042-8 | BALL BEARING 629LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 036 | 961005-4 | RETAINING RING S-9 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 317821-6 | GEAR HOUSING COVER | 1 | €2.78 | 1-4 weeks to ship | |
