BFT120F
BFT120F

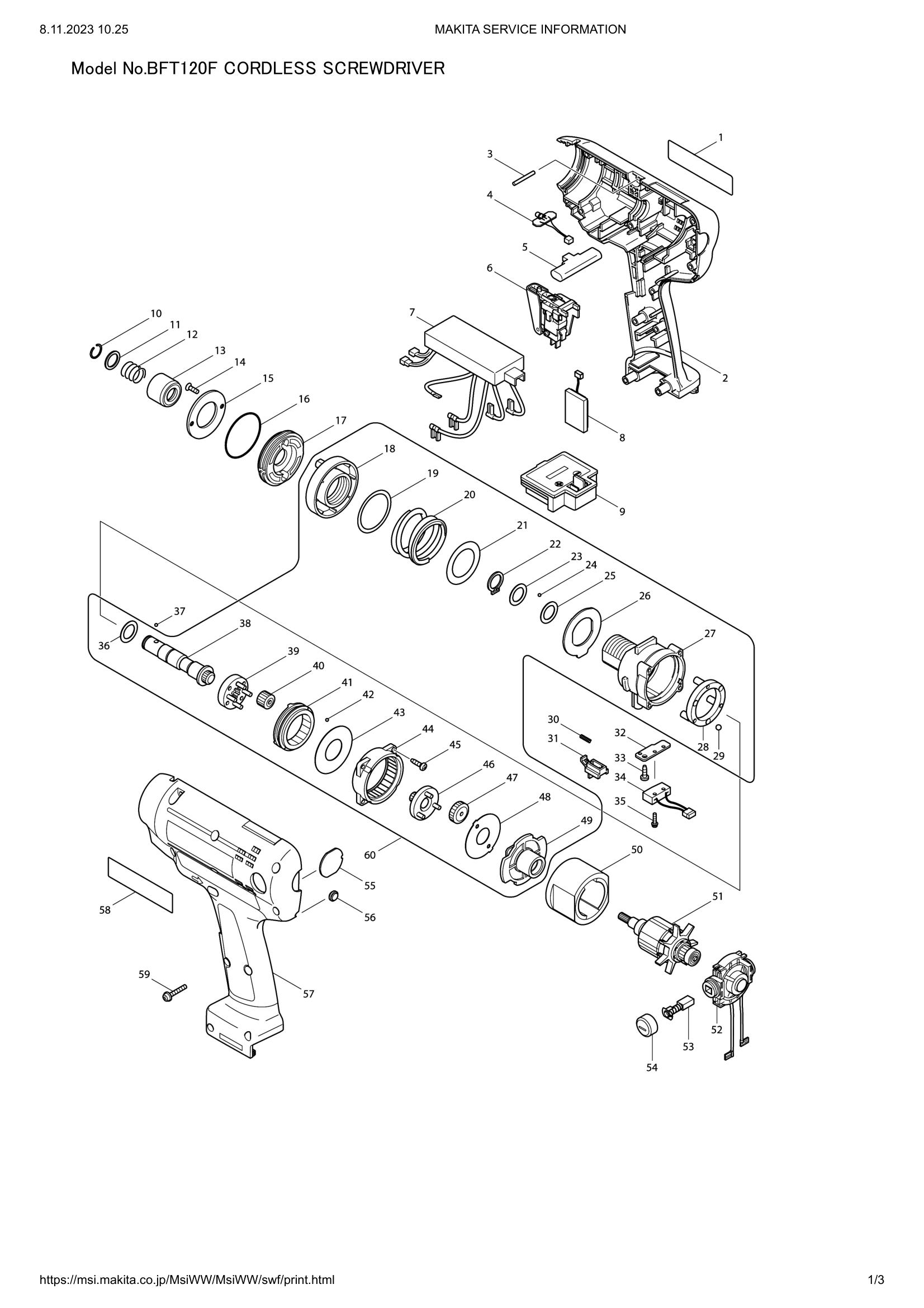

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | NAME PLATE BFT120F | 1 | Not available in store | |||
| 002 | HOUSING SET | 1 | Not available in store | |||
| 003 | 256176-3 | PIN 2.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 631513-6 | LED CIRCUIT | 1 | €16.70 | 1-4 weeks to ship | |
| 005 | 417511-2 | F/R CHANGE LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 008 | 631514-4 | BUZZER CIRCUIT | 1 | €16.70 | 1-4 weeks to ship | |
| 009 | 643800-1 | TERMINAL | 1 | €9.88 | 1-4 weeks to ship | |
| 010 | 231965-7 | RING SPRING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 267143-3 | FLAT WASHER 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 233005-7 | COMPRESSION SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 162218-2 | SLEEVE | 1 | €11.13 | 1-4 weeks to ship | |
| 015 | FRONT PLATE | 1 | Not available in store | |||
| 016 | 213510-0 | O RING 36 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | FRONT COVER | 1 | Not available in store | |||
| 018 | SPRING HOLDER A | 1 | Not available in store | |||
| 019 | 253356-2 | THIN WASHER 30 | 1 | €4.17 | 1-4 weeks to ship | |
| 020 | COMPRESSION SPRING 30 | 1 | Not available in store | |||
| 021 | 253355-4 | THIN WASHER 24 | 1 | €4.17 | 1-4 weeks to ship | |
| 022 | 961072-9 | RETAINING RING S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 253052-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | 216019-1 | STEEL BALL 3 | 16 | €0.56 | 1-4 weeks to ship | |
| 025 | 253052-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | TORQUEUP PLATE | 1 | Not available in store | |||
| 027 | GEAR CASE COMPLETE | 1 | Not available in store | |||
| 028 | CLUTCH RING | 1 | Not available in store | |||
| 029 | 216008-6 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | |
| 030 | 233025-1 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | SWITCH LEVER | 1 | Not available in store | |||
| 032 | HOLDER PLATE | 1 | Not available in store | |||
| 035 | 265114-4 | PAN HEAD SCREW M2.3X10 | 1 | €0.83 | 1-4 weeks to ship | |
| 036 | 253052-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 216019-1 | STEEL BALL 3 | 2 | €0.56 | 1-4 weeks to ship | |
| 038 | SPINDLE M | 1 | Not available in store | |||
| 039 | CARRIER COMPLETE A | 1 | Not available in store | |||
| 040 | SPUR GEAR 17 | 4 | Not available in store | |||
| 041 | INTERNAL GEAR 46 | 1 | Not available in store | |||
| 042 | 216019-1 | STEEL BALL 3 | 38 | €0.56 | 1-4 weeks to ship | |
| 043 | 267225-1 | FLAT WASHER 18 | 1 | €1.11 | 1-4 weeks to ship | |
| 044 | INTERNAL GEAR CASE | 1 | Not available in store | |||
| 045 | 265893-4 | TAPPING SCREW 3X12 | 4 | €0.56 | 1-4 weeks to ship | |
| 046 | SPUR GEAR 10 COMPLETE | 1 | Not available in store | |||
| 047 | SPUR GEAR 31 | 3 | Not available in store | |||
| 048 | 267738-2 | LOCK WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | MOTOR BRACKET | 1 | Not available in store | |||
| 050 | 638191-3 | YOKE UNIT | 1 | €47.31 | 1-4 weeks to ship | |
| 051 | ARMATURE | 1 | Not available in store | |||
| 052 | 638195-5 | ENDBELL COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 054 | 643933-2 | BRUSH HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 055 | PLATE | 1 | Not available in store | |||
| 056 | 416764-0 | LENS | 1 | €5.57 | 1-4 weeks to ship | |
| 057 | HOUSING SET | 1 | Not available in store | |||
| 058 | 819064-1 | MAKITA MARK | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | GEAR ASS'Y C-M | 1 | Not available in store | |||
