3711
3711

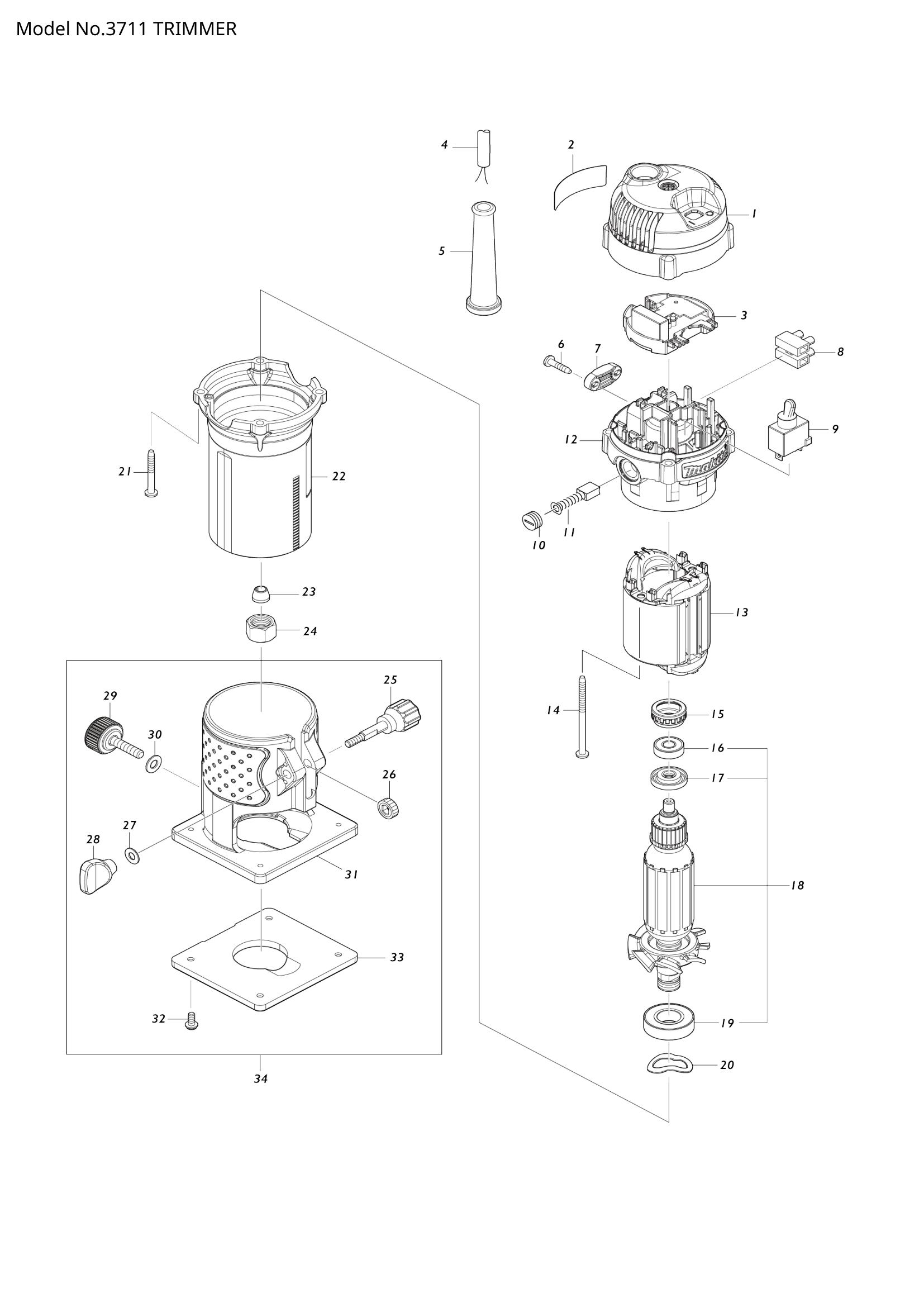

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | TOP COVER | 1 | Not available in store | |||
| 002 | 3711 NAME PLATE | 1 | Not available in store | |||
| 003 | CONTROLLER | 1 | Not available in store | |||
| 004 | 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | |
| 005 | 682569-2 | CORD GUARD 8-85 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 007 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | SWITCH ST115A-TB-S1 | 1 | Not available in store | |||
| 010 | 643550-8 | BRUSH HOLDER CAP 5-8 | 2 | €0.83 | 1-4 weeks to ship | |
| 012 | BRACKET COMPLETE | 1 | Not available in store | |||
| 014 | 266340-8 | TAPPING SCREW 4X65 | 2 | €0.56 | 1-4 weeks to ship | |
| 015 | 421494-0 | RUBBER RING 19 | 1 | €4.17 | 1-4 weeks to ship | |
| 016 | 210034-7 | BALL BEARING 607LLB | 1 | €1.39 | 1-4 weeks to ship | |
| 017 | 681668-7 | INSULATION WASHER | 1 | €0.28 | 1-4 weeks to ship | |
| 681668-7 | INSULATION WASHER | 1 | €0.28 | 1-4 weeks to ship | ||
| 018 | 515634-1 | ARMATURE ASS'Y 240V | 1 | €39.52 | 1-4 weeks to ship | |
| 019 | BALL BEARING 6002LLUX | 1 | Not available in store | |||
| 020 | 267785-3 | WAVE WASHER 23 | 1 | €0.28 | 1-4 weeks to ship | |
| 021 | 266351-3 | TAPPING SCREW 4X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 022 | MOTOR HOUSING COMPLETE | 1 | Not available in store | |||
| 023 | 763662-2 | COLLET CONE 6 | 1 | €4.17 | 1-4 weeks to ship | |
| 763662-2 | COLLET CONE 6 | 1 | €4.17 | 1-4 weeks to ship | ||
| 024 | 763661-4 | COLLET NUT 6 | 1 | €1.39 | 1-4 weeks to ship | |
| 763661-4 | COLLET NUT 6 | 1 | €1.39 | 1-4 weeks to ship | ||
| 025 | THUMB SCREW M5X33 | 1 | Not available in store | |||
| 026 | 226217-9 | SPUR GEAR 16 | 1 | €1.11 | 1-4 weeks to ship | |
| 027 | 941101-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | THUMB NUT M5 | 1 | Not available in store | |||
| 029 | 265763-7 | THUMB SCREW M6X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 031 | 419138-4 | BASE | 1 | €9.04 | 1-4 weeks to ship | |
| 032 | 265142-9 | + PAN HEAD SCREW M4X10 | 4 | €0.83 | 1-4 weeks to ship | |
| 033 | 410585-2 | BASE PROTECTOR | 1 | €0.83 | 1-4 weeks to ship | |
| 034 | TRIMMER BASE ASSEMBLY SET | 1 | Not available in store | |||
