BFT041F
BFT041F

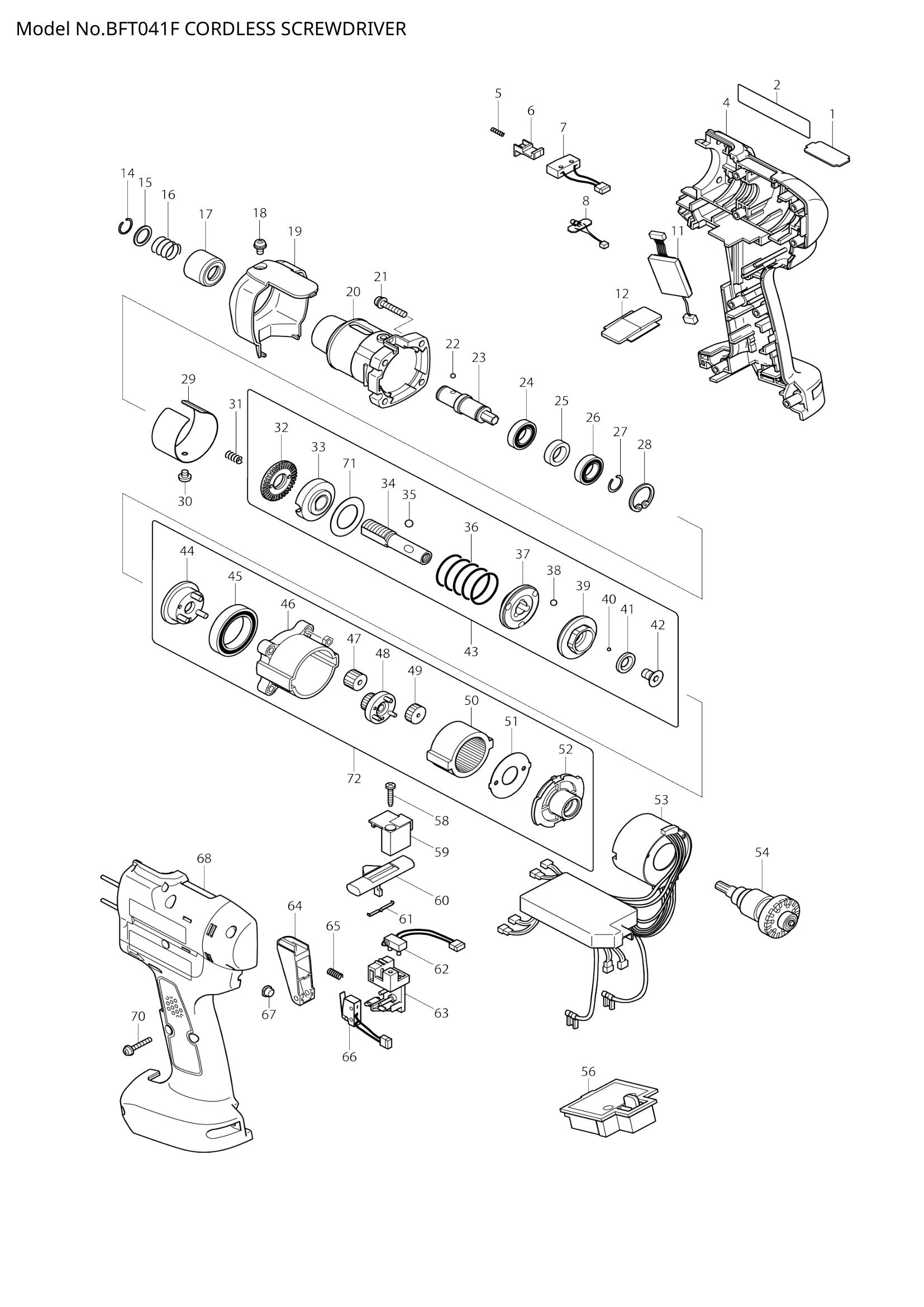

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 345343-6 | PLATE G | 1 | €3.06 | 1-4 weeks to ship | |
| 002 | BFT041F NAME PLATE | 1 | Not available in store | |||
| 005 | 233025-1 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 418002-6 | SWITCH LEVER | 1 | €1.11 | 1-4 weeks to ship | |
| 008 | 631513-6 | LED CIRCUIT | 1 | €16.70 | 1-4 weeks to ship | |
| 011 | 631756-0 | POWER SUPPLY UNIT | 1 | €25.74 | 1-4 weeks to ship | |
| 012 | 452189-4 | COVER | 1 | €7.51 | 1-4 weeks to ship | |
| 014 | 231965-7 | RING SPRING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 267143-3 | FLAT WASHER 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 233005-7 | COMPRESSION SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 162218-2 | SLEEVE | 1 | €11.13 | 1-4 weeks to ship | |
| 018 | 265171-2 | PAN HEAD SCREW M4X8 | 1 | €0.42 | 1-4 weeks to ship | |
| 019 | 418289-0 | CLUTCH CASE COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 020 | 317694-7 | CLUTCH CASE | 1 | €30.61 | 1-4 weeks to ship | |
| 021 | 265145-3 | + PAN HEAD SCREW M4X22 | 4 | €0.56 | 1-4 weeks to ship | |
| 022 | 216019-1 | STEEL BALL 3 | 2 | €0.56 | 1-4 weeks to ship | |
| 023 | 324377-2 | SPINDLE M | 1 | €25.05 | 1-4 weeks to ship | |
| 024 | 211136-2 | BALL BEARING 6801LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 025 | 257011-8 | RING 12 | 1 | €0.83 | 1-4 weeks to ship | |
| 026 | 211136-2 | BALL BEARING 6801LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 027 | 231951-8 | RING SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 962111-8 | RETAINING RING R-21 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 345349-4 | RING 38G | 1 | €10.71 | 1-4 weeks to ship | |
| 030 | 265127-5 | + PAN HEAD SCREW M4X4 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 324834-0 | LOCK NUT M12 | 1 | €16.70 | 1-4 weeks to ship | |
| 033 | 158408-3 | ADJUST RING COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 034 | 324296-2 | SPINDLE | 1 | €33.40 | 1-4 weeks to ship | |
| 035 | 216018-3 | STEEL BALL 5.0 | 3 | €0.56 | 1-4 weeks to ship | |
| 036 | 233385-1 | COMPRESSION SPRING 19D | 1 | €5.57 | 1-4 weeks to ship | |
| 037 | 223146-7 | CAM D | 1 | €25.05 | 1-4 weeks to ship | |
| 038 | 216024-8 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | |
| 039 | 223143-3 | CAM C | 1 | €49.82 | 1-4 weeks to ship | |
| 040 | 216019-1 | STEEL BALL 3 | 13 | €0.56 | 1-4 weeks to ship | |
| 041 | 267247-1 | FLAT WASHER 7 | 1 | €4.17 | 1-4 weeks to ship | |
| 042 | 266305-0 | TORX C.S HEAD SCREW M5X10 | 1 | €0.83 | 1-4 weeks to ship | |
| 044 | 153443-6 | CARRIER COMPLETE A | 1 | €11.13 | 1-4 weeks to ship | |
| 045 | 211375-4 | BALL BEARING 6805LLB | 1 | €13.92 | 1-4 weeks to ship | |
| 047 | 227050-2 | SPUR GEAR 13 | 3 | €0.83 | 1-4 weeks to ship | |
| 048 | 153446-0 | SPUR GEAR 20 COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 049 | 227051-0 | SPUR GEAR 19 | 3 | €0.83 | 1-4 weeks to ship | |
| 050 | 227048-9 | INTERNAL GEAR 47 | 1 | €5.57 | 1-4 weeks to ship | |
| 051 | 267774-8 | LOCK WASHER | 1 | €1.67 | 1-4 weeks to ship | |
| 052 | 418003-4 | MOTOR BRACKET | 1 | €4.17 | 1-4 weeks to ship | |
| 054 | 619207-3 | ROTOR | 1 | €313.37 | 1-4 weeks to ship | |
| 058 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | 418204-4 | COVER | 1 | €7.93 | 1-4 weeks to ship | |
| 060 | 418201-0 | F/R CHANGE LEVER | 1 | €11.13 | 1-4 weeks to ship | |
| 061 | 232201-4 | LEAF SPRING | 1 | €1.67 | 1-4 weeks to ship | |
| 063 | 418202-8 | SWITCH BASE | 1 | €10.71 | 1-4 weeks to ship | |
| 064 | 418203-6 | SWITCH LEVER A | 1 | €10.85 | 1-4 weeks to ship | |
| 065 | 231397-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 419829-7 | LENS | 1 | €7.93 | 1-4 weeks to ship | |
| 070 | 265095-2 | PAN HEAD SCREW M3X20 | 8 | €0.56 | 1-4 weeks to ship | |
| 071 | 267276-4 | FLAT WASHER 18 | 1 | €0.83 | 1-4 weeks to ship | |
