BFS450
BFS450

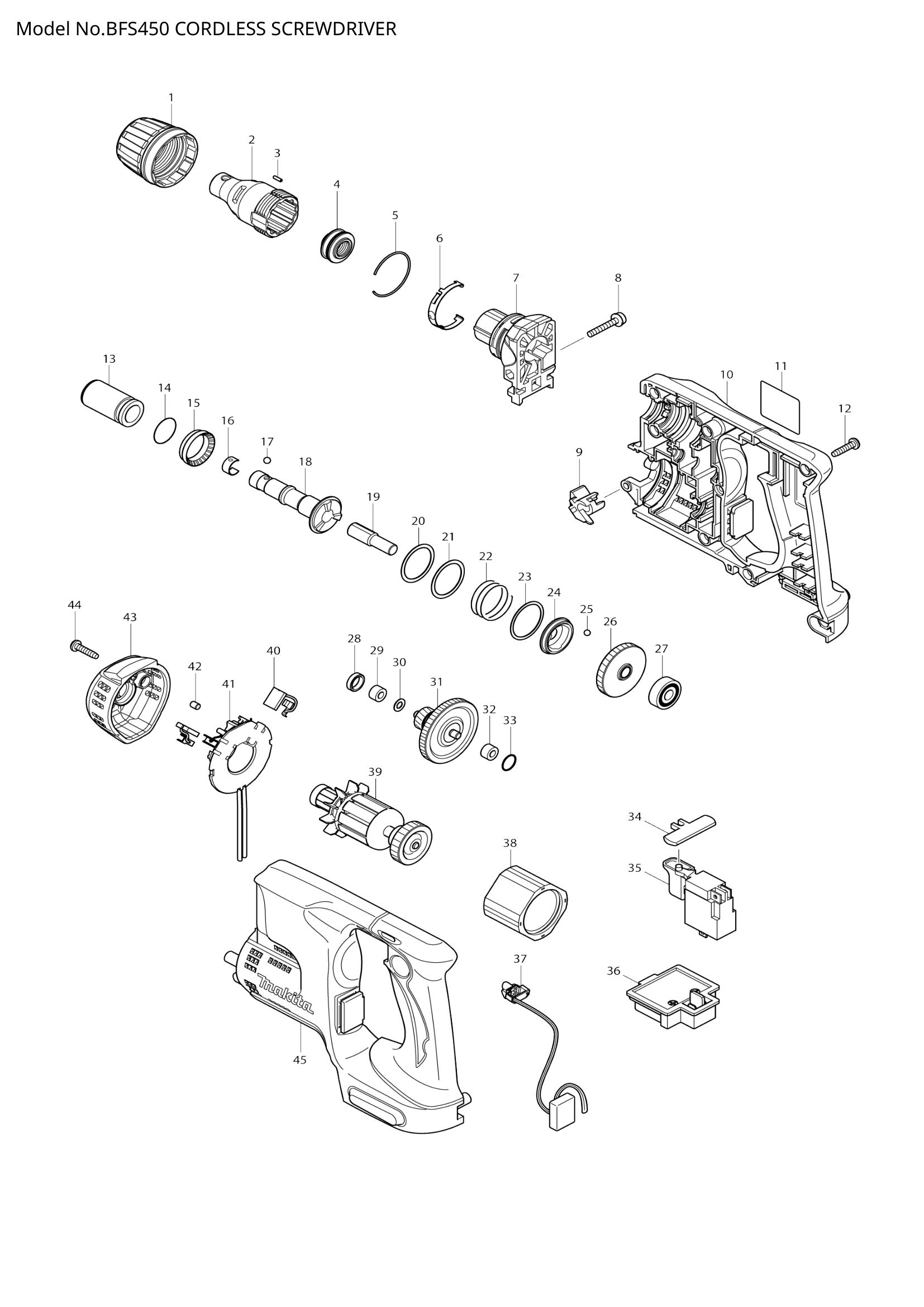

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 450691-1 | LOCK RING | 1 | €11.13 | 1-4 weeks to ship | |
| 002 | 158754-4 | LOCATOR S COMPLETE | 1 | €16.70 | 1-4 weeks to ship | |
| 003 | 424133-1 | BRAKE PIN | 1 | €2.09 | 1-4 weeks to ship | |
| 004 | 424134-9 | DUST SEAL RING | 1 | €2.78 | 1-4 weeks to ship | |
| 005 | 233967-9 | RING SPRING 33 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 232245-4 | LEAF SPRING | 1 | €2.78 | 1-4 weeks to ship | |
| 007 | 158755-2 | LOCATOR BASE COMPLETE | 1 | €16.70 | 1-4 weeks to ship | |
| 008 | 911148-2 | PAN HEAD SCREW M4X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 450689-8 | LIGHT HOLDER | 1 | €4.45 | 1-4 weeks to ship | |
| 011 | BFS450 NAME PLATE | 1 | Not available in store | |||
| 012 | 265995-6 | TAPPING SCREW 4X18 | 9 | €0.56 | 1-4 weeks to ship | |
| 013 | 214174-3 | PLANE BEARING 14 | 1 | €4.17 | 1-4 weeks to ship | |
| 014 | 213262-3 | O RING 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 421927-5 | SLEEVE 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 232050-9 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 324925-7 | SPINDLE | 1 | €30.47 | 1-4 weeks to ship | |
| 019 | 256509-2 | SHOULDER PIN 8-10 | 1 | €5.57 | 1-4 weeks to ship | |
| 020 | 267331-2 | FLAT WASHER 25 | 1 | €0.83 | 1-4 weeks to ship | |
| 021 | 267331-2 | FLAT WASHER 25 | 1 | €0.83 | 1-4 weeks to ship | |
| 022 | 234017-3 | COMPRESSION SPRING 25 | 1 | €2.78 | 1-4 weeks to ship | |
| 023 | 267332-0 | FLAT WASHER 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | 223169-5 | CLUTCH CAM C | 1 | €22.26 | 1-4 weeks to ship | |
| 025 | 216008-6 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | |
| 026 | 226670-9 | HELICAL GEAR 48 | 1 | €30.61 | 1-4 weeks to ship | |
| 027 | 211034-0 | BALL BEARING 608 | 1 | €4.17 | 1-4 weeks to ship | |
| 028 | 165115-1 | RUBBER SLEEVE 10 | 1 | €2.78 | 1-4 weeks to ship | |
| 029 | 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 253811-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | 154937-4 | GEAR COMPLETE 18-44 | 1 | €30.61 | 1-4 weeks to ship | |
| 032 | 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 213055-8 | O RING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 419304-3 | F/R CHANGE LEVER | 1 | €1.39 | 1-4 weeks to ship | |
| 038 | 638426-2 | YOKE UNIT | 1 | €27.83 | 1-4 weeks to ship | |
| 039 | 619216-2 | ARMATURE | 1 | €36.18 | 1-4 weeks to ship | |
| 041 | 638433-5 | BRUSH HOLDER COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 638433-5 | BRUSH HOLDER COMPLETE | 1 | €2.78 | 1-4 weeks to ship | ||
| 042 | 263032-0 | RUBBER PIN 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 043 | 450692-9 | FRONT COVER | 1 | €5.98 | 1-4 weeks to ship | |
| 044 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
