3710
3710

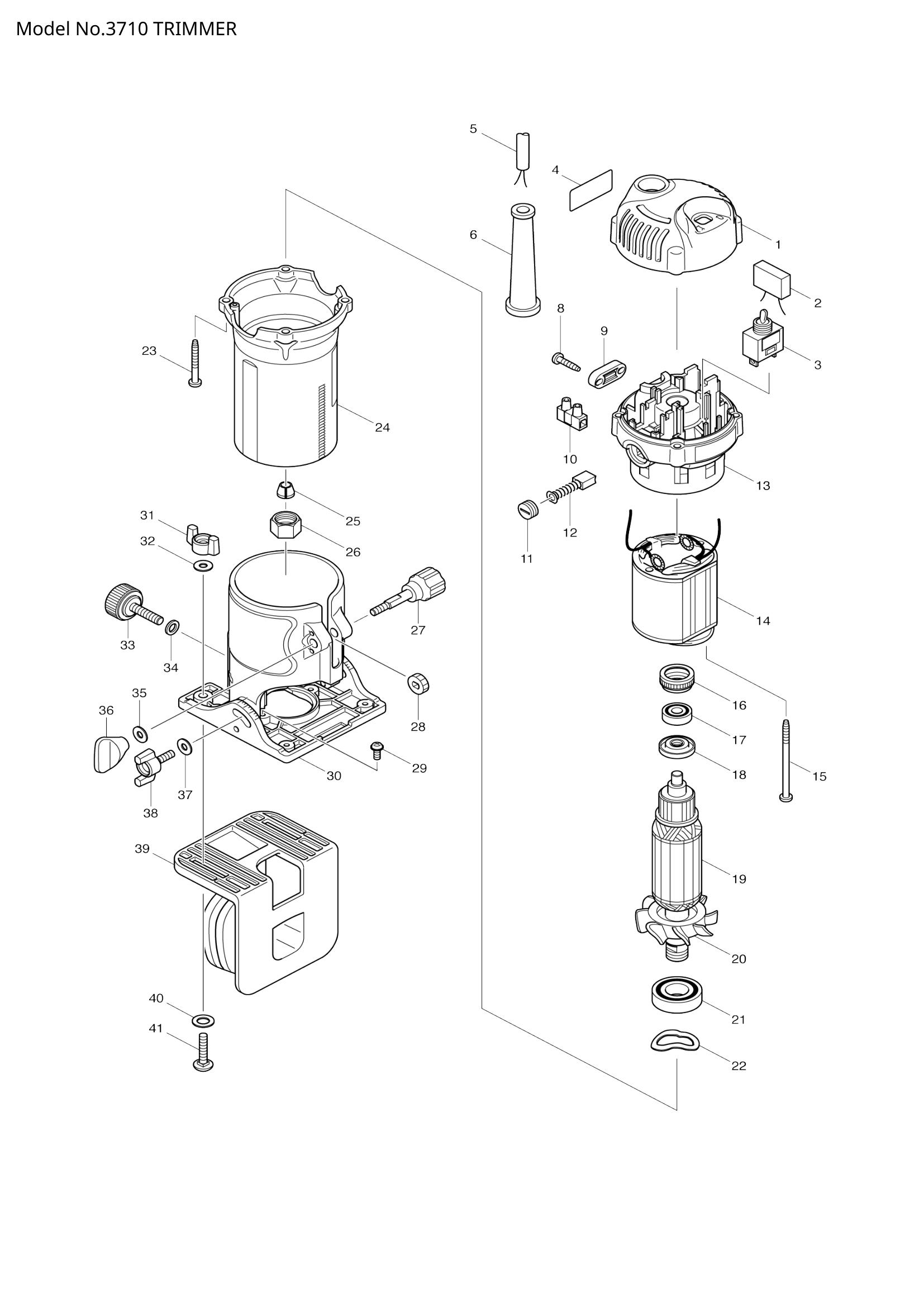

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 645200-1 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 645200-1 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | ||
| 004 | 3710 NAME PLATE | 1 | Not available in store | |||
| 3710 NAME PLATE | 1 | Not available in store | ||||
| 005 | 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | |
| 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | ||
| 006 | 682569-2 | CORD GUARD 8-85 | 1 | €0.56 | 1-4 weeks to ship | |
| 682569-2 | CORD GUARD 8-85 | 1 | €0.56 | 1-4 weeks to ship | ||
| 008 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 009 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 010 | 654532-5 | TERMINAL BLOCK 1P | 1 | €1.11 | 1-4 weeks to ship | |
| 654532-5 | TERMINAL BLOCK 1P | 1 | €1.11 | 1-4 weeks to ship | ||
| 011 | 643550-8 | BRUSH HOLDER CAP 5-8 | 2 | €0.83 | 1-4 weeks to ship | |
| 643550-8 | BRUSH HOLDER CAP 5-8 | 2 | €0.83 | 1-4 weeks to ship | ||
| 015 | 266340-8 | TAPPING SCREW 4X65 | 2 | €0.56 | 1-4 weeks to ship | |
| 266340-8 | TAPPING SCREW 4X65 | 2 | €0.56 | 1-4 weeks to ship | ||
| 016 | 421494-0 | RUBBER RING 19 | 1 | €4.17 | 1-4 weeks to ship | |
| 421494-0 | RUBBER RING 19 | 1 | €4.17 | 1-4 weeks to ship | ||
| 017 | 210034-7 | BALL BEARING 607LLB | 1 | €1.39 | 1-4 weeks to ship | |
| 210034-7 | BALL BEARING 607LLB | 1 | €1.39 | 1-4 weeks to ship | ||
| 019 | 515634-1 | ARMATURE ASS'Y 240V | 1 | €39.52 | 1-4 weeks to ship | |
| 515634-1 | ARMATURE ASS'Y 240V | 1 | €39.52 | 1-4 weeks to ship | ||
| 020 | 241667-7 | FAN 52 | 1 | €3.62 | 1-4 weeks to ship | |
| 241667-7 | FAN 52 | 1 | €3.62 | 1-4 weeks to ship | ||
| 022 | 267785-3 | WAVE WASHER 23 | 1 | €0.28 | 1-4 weeks to ship | |
| 267785-3 | WAVE WASHER 23 | 1 | €0.28 | 1-4 weeks to ship | ||
| 023 | 266351-3 | TAPPING SCREW 4X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 266351-3 | TAPPING SCREW 4X35 | 4 | €0.56 | 1-4 weeks to ship | ||
| 025 | 763662-2 | COLLET CONE 6 | 1 | €4.17 | 1-4 weeks to ship | |
| 763662-2 | COLLET CONE 6 | 1 | €4.17 | 1-4 weeks to ship | ||
| 763662-2 | COLLET CONE 6 | 1 | €4.17 | 1-4 weeks to ship | ||
| 763662-2 | COLLET CONE 6 | 1 | €4.17 | 1-4 weeks to ship | ||
| 026 | 763661-4 | COLLET NUT 6 | 1 | €1.39 | 1-4 weeks to ship | |
| 763661-4 | COLLET NUT 6 | 1 | €1.39 | 1-4 weeks to ship | ||
| 763661-4 | COLLET NUT 6 | 1 | €1.39 | 1-4 weeks to ship | ||
| 763661-4 | COLLET NUT 6 | 1 | €1.39 | 1-4 weeks to ship | ||
| 027 | THUMB SCREW M5X33 | 1 | Not available in store | |||
| THUMB SCREW M5X33 | 1 | Not available in store | ||||
| 028 | 226217-9 | SPUR GEAR 16 | 1 | €1.11 | 1-4 weeks to ship | |
| 226217-9 | SPUR GEAR 16 | 1 | €1.11 | 1-4 weeks to ship | ||
| 029 | 911114-9 | PAN HEAD SCREW M4X10 | 2 | €0.56 | 1-4 weeks to ship | |
| 911114-9 | PAN HEAD SCREW M4X10 | 2 | €0.56 | 1-4 weeks to ship | ||
| 030 | BASE COMPLETE | 1 | Not available in store | |||
| BASE COMPLETE | 1 | Not available in store | ||||
| 031 | THUMB NUT M5 | 2 | Not available in store | |||
| THUMB NUT M5 | 2 | Not available in store | ||||
| 032 | 941101-4 | FLAT WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 941101-4 | FLAT WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | ||
| 034 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 035 | 941101-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 941101-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 036 | THUMB NUT M5 | 1 | Not available in store | |||
| THUMB NUT M5 | 1 | Not available in store | ||||
| 037 | 941101-4 | FLAT WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 941101-4 | FLAT WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | ||
| 038 | 265761-1 | THUMB SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 265761-1 | THUMB SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 039 | 414304-8 | TRIMMER SHOE | 1 | €13.92 | 1-4 weeks to ship | |
| 414304-8 | TRIMMER SHOE | 1 | €13.92 | 1-4 weeks to ship | ||
| 040 | 267240-5 | FLAT WASHER 8 | 2 | €0.83 | 1-4 weeks to ship | |
| 267240-5 | FLAT WASHER 8 | 2 | €0.83 | 1-4 weeks to ship | ||
| 041 | 923241-0 | CAP SQUARE NECK BOLT M5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 923241-0 | CAP SQUARE NECK BOLT M5X25 | 2 | €0.56 | 1-4 weeks to ship | ||
